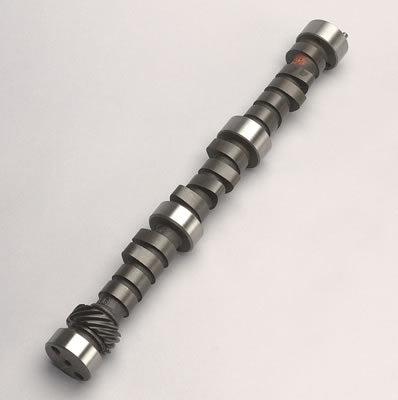

COMP Cams Magnum Hydraulic Camshafts 09-422-8

Designed for hot street/strip cars, COMP Cams Magnum series cams require a higher compression ratio, rear-end gear ratio, and stall torque converter than stock. With a very aggressive profile, these Magnum hydraulic camshafts provide maximum top-end performance for your high performance car.Brand: COMP Cams
Manufacturer's Part Number: 09-422-8
Part Type: Camshafts
Product Line: COMP Cams Magnum Hydraulic Camshafts
HP Direct Part Number: CCA-09-422-8
UPC: 036584780625
Cam Style: Hydraulic roller, OE roller
Camshaft Use: Street/Strip
Basic Operating RPM Range: 2,000-5,500
Intake Duration at 050 inch Lift: 215
Exhaust Duration at 050 inch Lift: 220
Duration at 050 inch Lift: 215 int./220 exh.
Advertised Intake Duration: 270
Advertised Exhaust Duration: 276
Advertised Duration: 270 int./276 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.500 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.510 in.
Valve Lift with Factory Rocker Arm Ratio: 0.500 int./0.510 exh.
Lobe Separation (degrees): 114
Remanufactured: No
Computer-Controlled Compatible: Yes
Grind Number: C6 270AH-R14
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: Adjustable valvetrain required. Requires thrust button and wear plate.
