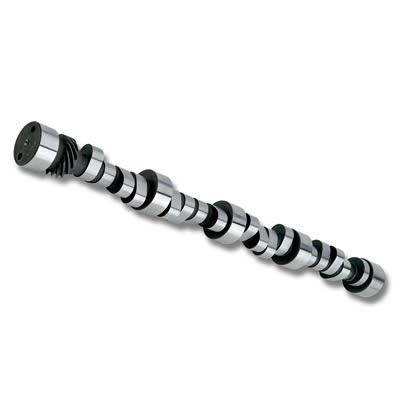

COMP Cams Low Lift Oval Track Camshafts 12-523-5

These low lift oval track camshafts from COMP Cams are great for oval track classes that have low lift rules. These cams feature optimized duration and lobe separation angles to make the most power from limited valve lift. They produce a rough idle and very good power to go the distance.Brand: COMP Cams
Manufacturer's Part Number: 12-523-5
Part Type: Camshafts
Product Line: COMP Cams Low Lift Oval Track Camshafts
HP Direct Part Number: CCA-12-523-5
UPC: 036584642428
Cam Style: Solid flat tappet
Camshaft Use: Circle Track
Basic Operating RPM Range: 2,500-6,000
Intake Duration at 050 inch Lift: 242
Exhaust Duration at 050 inch Lift: 250
Duration at 050 inch Lift: 242 int./250 exh.
Advertised Intake Duration: 270
Advertised Exhaust Duration: 282
Advertised Duration: 270 int./282 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.473 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.473 in.
Valve Lift with Factory Rocker Arm Ratio: 0.473 int./0.473 exh.
Lobe Separation (degrees): 106
Intake Valve Lash: 0.018 in.
Exhaust Valve Lash: 0.018 in.
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: CS 6350/6351 S6
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: Designed for Circle Track classes with 0.470 in. lift rule.
