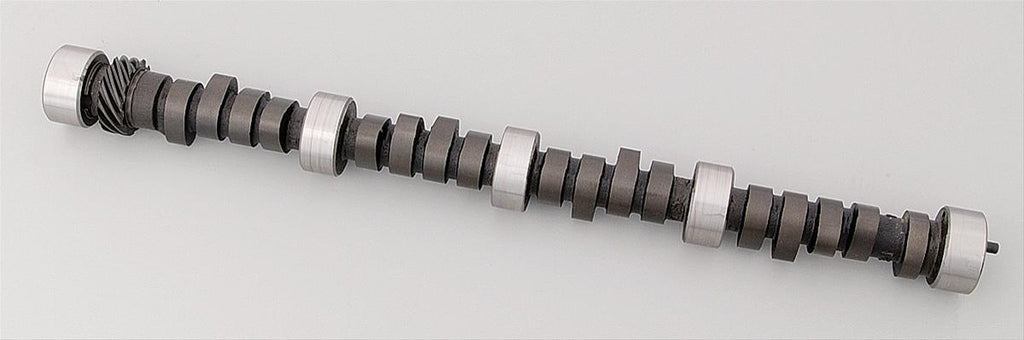

COMP Cams Low Lift Oval Track Camshafts 12-522-5

These low lift oval track camshafts from COMP Cams are great for oval track classes that have low lift rules. These cams feature optimized duration and lobe separation angles to make the most power from limited valve lift. They produce a rough idle and very good power to go the distance.Brand: COMP Cams
Manufacturer's Part Number: 12-522-5
Part Type: Camshafts
Product Line: COMP Cams Low Lift Oval Track Camshafts
HP Direct Part Number: CCA-12-522-5
UPC: 036584642411
Cam Style: Hydraulic flat tappet
Camshaft Use: Drag race
Basic Operating RPM Range: 2,500-6,000
Intake Duration at 050 inch Lift: 242
Exhaust Duration at 050 inch Lift: 255
Duration at 050 inch Lift: 242 int./255 exh.
Advertised Intake Duration: 293
Advertised Exhaust Duration: 300
Advertised Duration: 293 int./300 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.450 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.453 in.
Valve Lift with Factory Rocker Arm Ratio: 0.450 int./0.453 exh.
Lobe Separation (degrees): 106
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: CS 45/28 H6
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: Designed for Circle Track classes with 0.450 in. lift rule.
