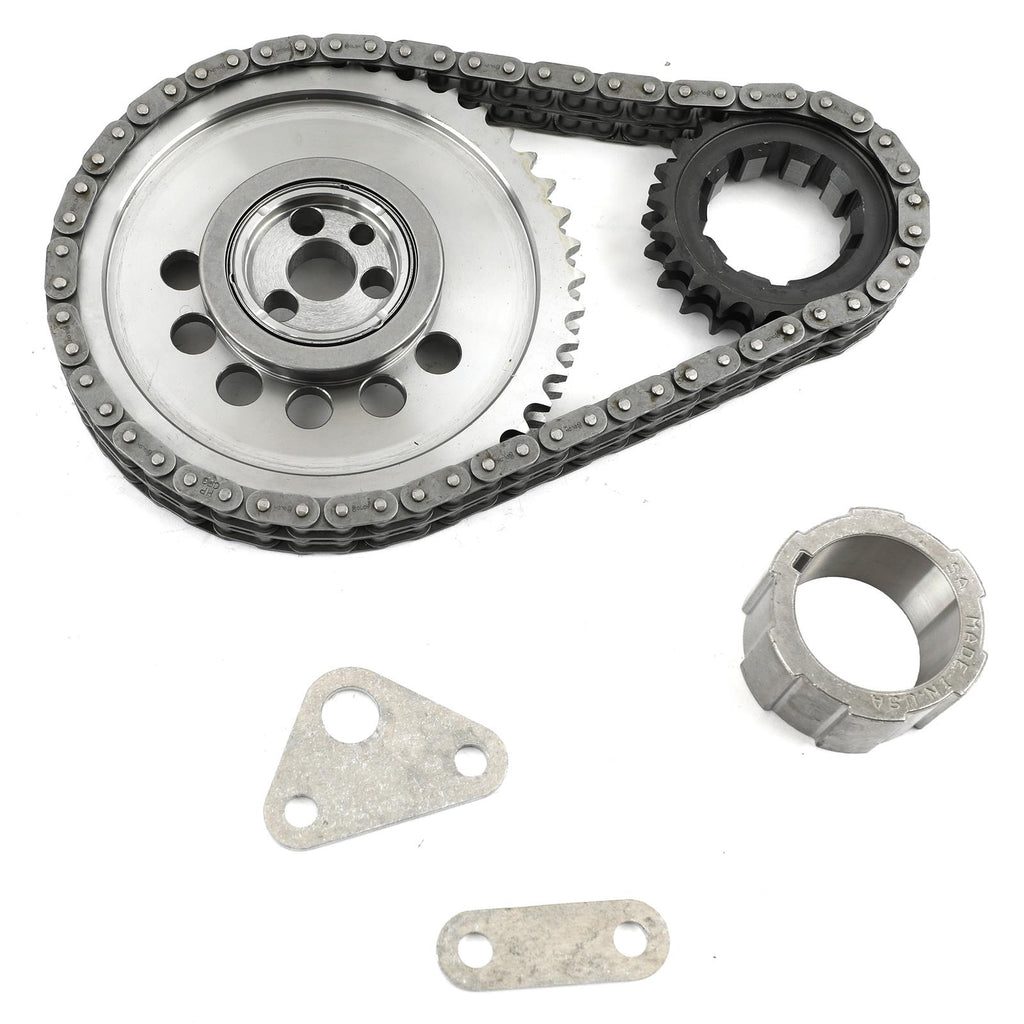

COMP Cams Keyway Adjustable Billet Timing Sets 7106CPG

COMP Cams keyway adjustable billet timing sets are an exceptional choice for your street or race vehicle. Whether you're building, replacing, or upgrading, these sets will deliver the performance you need. The chains are available in single- and double-roller style—and are designed for fitment on a wide range of engine-specific applications.

Features include:

* Induction-hardened steel billet gears for durability
* 9-keyway crank sprocket for 2-degree incremental adjustability, 8-degree maximum advance/retard
* Pre-stretched, heat-treated single or double roller chain with heavy-duty large pin design
* Includes Torrington roller thrust bearing for reduced friction
Brand: COMP Cams
Manufacturer's Part Number: 7106CPG
Part Type: Timing Chain and Gear Sets
Product Line: COMP Cams Keyway Adjustable Billet Timing Sets
HP Direct Part Number: CCA-7106
UPC: 036584198444
Timing Chain Included: Yes
Timing Chain Style: Double roller
Camshaft Gear Attachment: 3-bolt
Maximum Advance/Retard at Camshaft: 8 degree
Maximum Advance/Retard at Crankshaft: 8 degree
Cam Gear Included: Yes
Cam Gear Material: Steel
Crank Gear Included: Yes
Crank Gear Material: Steel
VVT Gear Included: No
Tensioner Included: No
Thrust Bearing Included: Yes
Bolts/Studs Included: No
Gaskets Included: No
Offset Bushings Included: No
Quantity: Sold as a kit.
Notes: 4X reluctor. Includes two oil pump spacers. When installing a double roller timing chain and gears in an LS engine, the oil pump is spaced out from the block for clearance. On most applications, this will create a clearance issue between the timing cover and oil pump. Test fit and grind as needed for clearance, before final assembly.
