COMP Cams High Performance Valve Spring Kits 9704-KIT

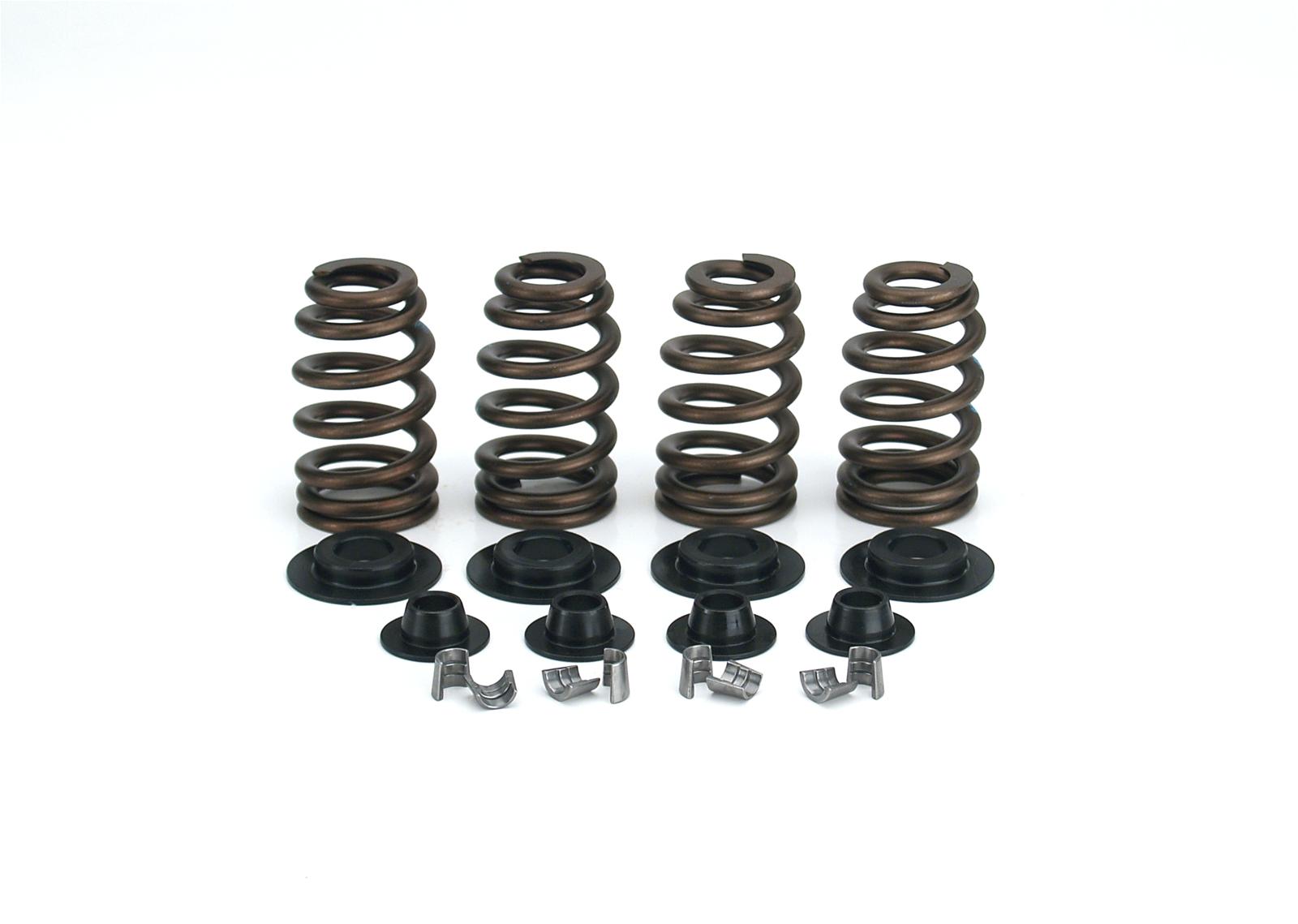

Simplify your valvetrain assembly! COMP Cams high performance valve spring kits have everything that you need for a complete valve spring assembly. Springs, seats, and retainers are included, along with complete instructions for a worry-free installation.Brand: COMP Cams
Manufacturer's Part Number: 9704-KIT
Part Type: Valve Springs
Product Line: COMP Cams High Performance Valve Spring Kits
HP Direct Part Number: CCA-9704-KIT
UPC: 036584116486
Valve Spring Style: Beehive
Number of Springs Per Valve: Single
Maximum Valve Lift (in.): 0.600 in.
Retainers Included: Yes
Retainer Material: Steel
Outside Diameter of Outer Spring (in.): 1.445 in.
Coil Bind Height (in.): 1.230 in.
Damper Spring Included: No
Spring Rate (lbs/in.): 377 lbs./in.
Locks Included: Yes
Lock Material: Alloy steel
Lock Groove Quantity: 2-groove
Lock Style: 7 degree
Valve Stem Seals Included: No
Valve Springs Coated: No
Valve Stem Diameter (in.): 0.310 in.
Valve Stem Diameter (mm): 7.87mm
Remanufactured: No
Quantity: Sold as a kit.
Notes: Features 0.600/0.570 in. lift, Super Locks with lash cap recess.
