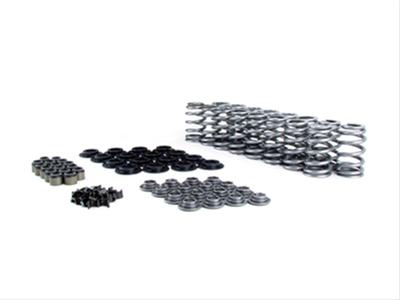

COMP Cams High Performance Valve Spring Kits 26918TS-KIT

Simplify your valvetrain assembly! COMP Cams high performance valve spring kits have everything that you need for a complete valve spring assembly. Springs, seats, and retainers are included, along with complete instructions for a worry-free installation.Brand: COMP Cams
Manufacturer's Part Number: 26918TS-KIT
Part Type: Valve Springs
Product Line: COMP Cams High Performance Valve Spring Kits
HP Direct Part Number: CCA-26918TSKIT
UPC: 036584225454
Valve Spring Style: Beehive
Number of Springs Per Valve: Single
Maximum Valve Lift (in.): 0.625 in.
Retainers Included: Yes
Retainer Material: Tool steel
Outside Diameter of Outer Spring (in.): 1.310 in.
Coil Bind Height (in.): 1.100 in.
Damper Spring Included: No
Spring Rate (lbs/in.): 372 lbs./in.
Inside Diameter of Outer Spring (in.): 0.885 in.
Locks Included: Yes
Lock Material: Hardened steel
Lock Groove Quantity: 1-groove
Lock Style: 7 degree
Valve Stem Seals Included: Yes
Valve Springs Coated: No
Valve Stem Diameter (in.): 0.314 in.
Valve Stem Diameter (mm): 7.97mm
Remanufactured: No
Quantity: Sold as a kit.
Notes: Top of the spring measures 1.075 in. O.D. and 0.650 in. I.D.
