Description

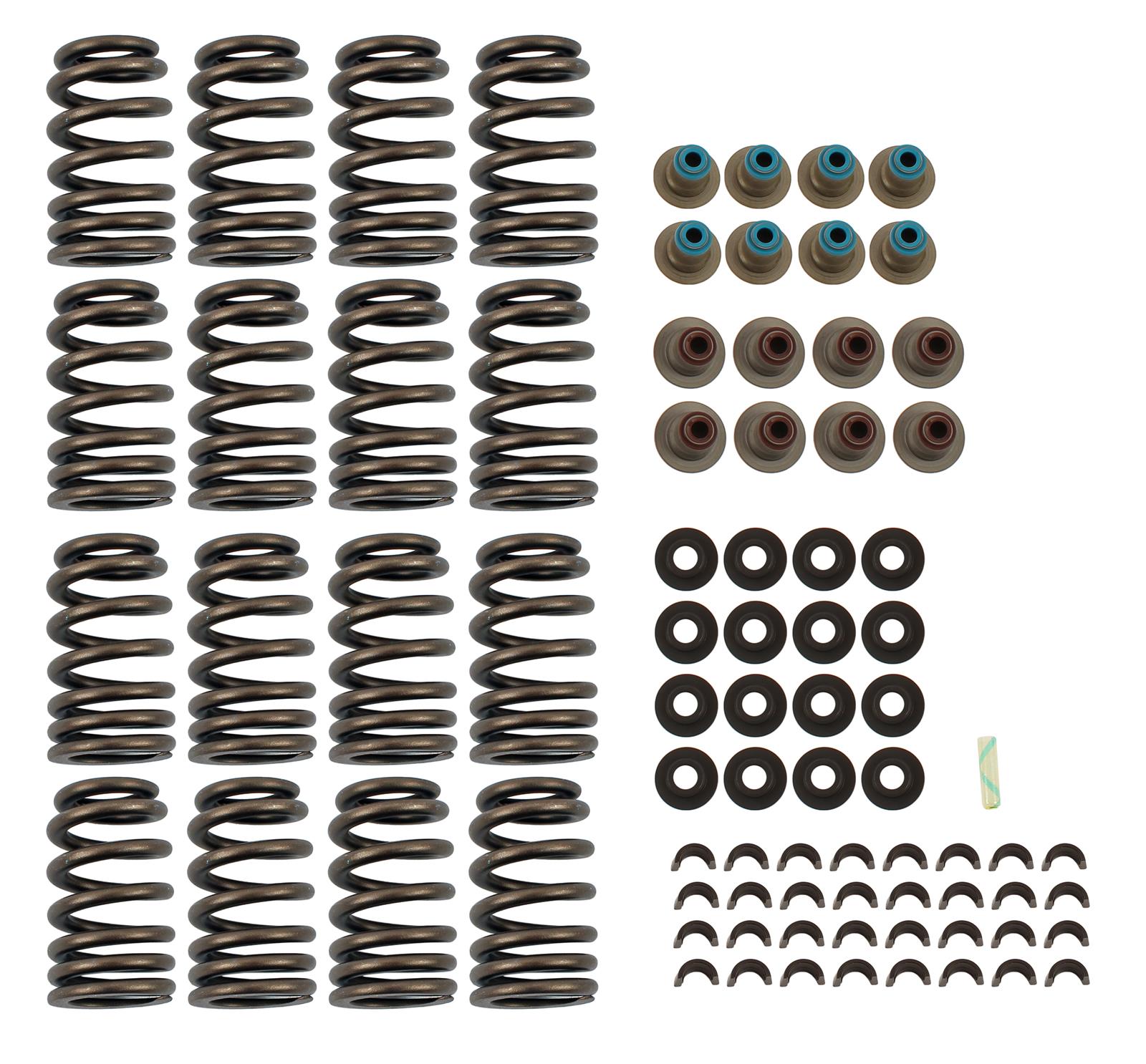

Simplify your valvetrain assembly! COMP Cams high performance valve spring kits have everything that you need for a complete valve spring assembly. Springs, seats, and retainers are included, along with complete instructions for a worry-free installation.Brand: COMP Cams
Manufacturer's Part Number: 26906CS-KIT
Part Type: Valve Springs
Product Line: COMP Cams High Performance Valve Spring Kits
HP Direct Part Number: CCA-26906CS-KIT
UPC: 00036584394211
Valve Spring Style: Beehive
Number of Springs Per Valve: Single
Maximum Valve Lift (in.): 0.559 in.
Retainers Included: Yes
Retainer Material: Chromoly steel
Outside Diameter of Outer Spring (in.): 1.282 in./1.077 in.
Coil Bind Height (in.): 1.181 in.
Damper Spring Included: No
Spring Rate (lbs/in.): 386 lbs./in.
Inside Diameter of Outer Spring (in.): 0.655 in./0.860 in.
Locks Included: Yes
Lock Material: Hardened steel
Lock Groove Quantity: 1-groove
Lock Style: 7 degree
Valve Stem Seals Included: Yes
Valve Springs Coated: No
Valve Stem Diameter (in.): 0.314 in.
Valve Stem Diameter (mm): 7.97mm
Remanufactured: No
Quantity: Sold as a kit.
