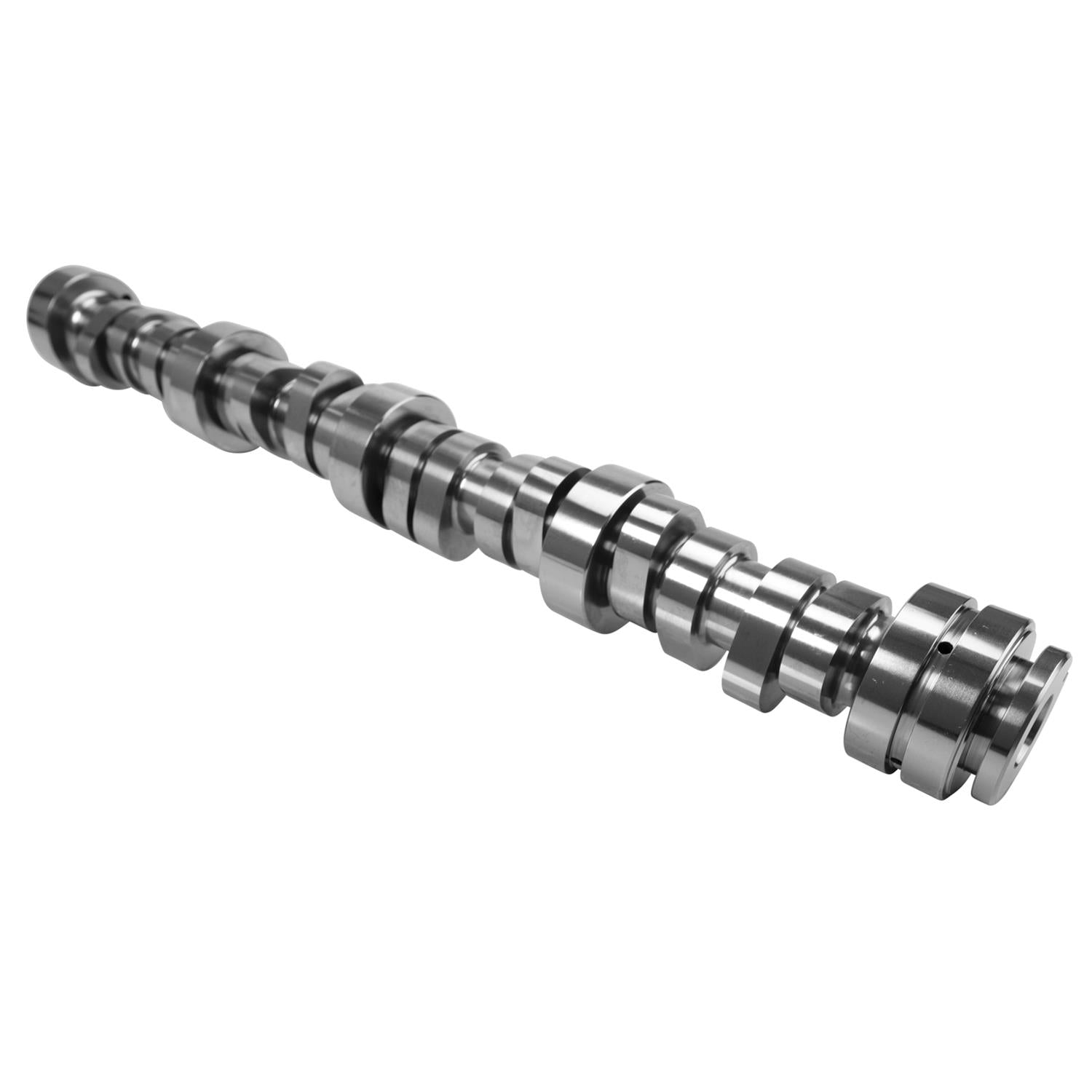

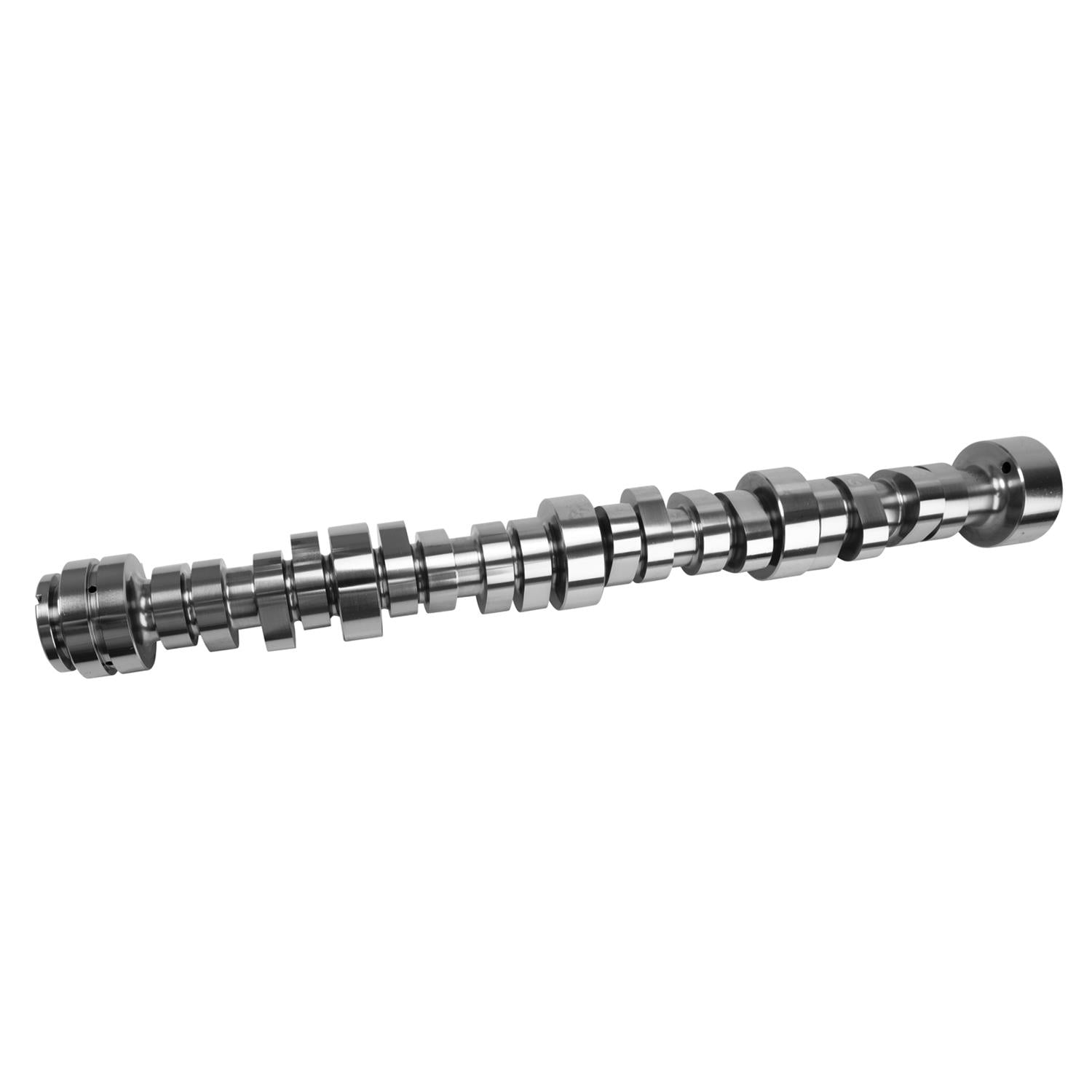

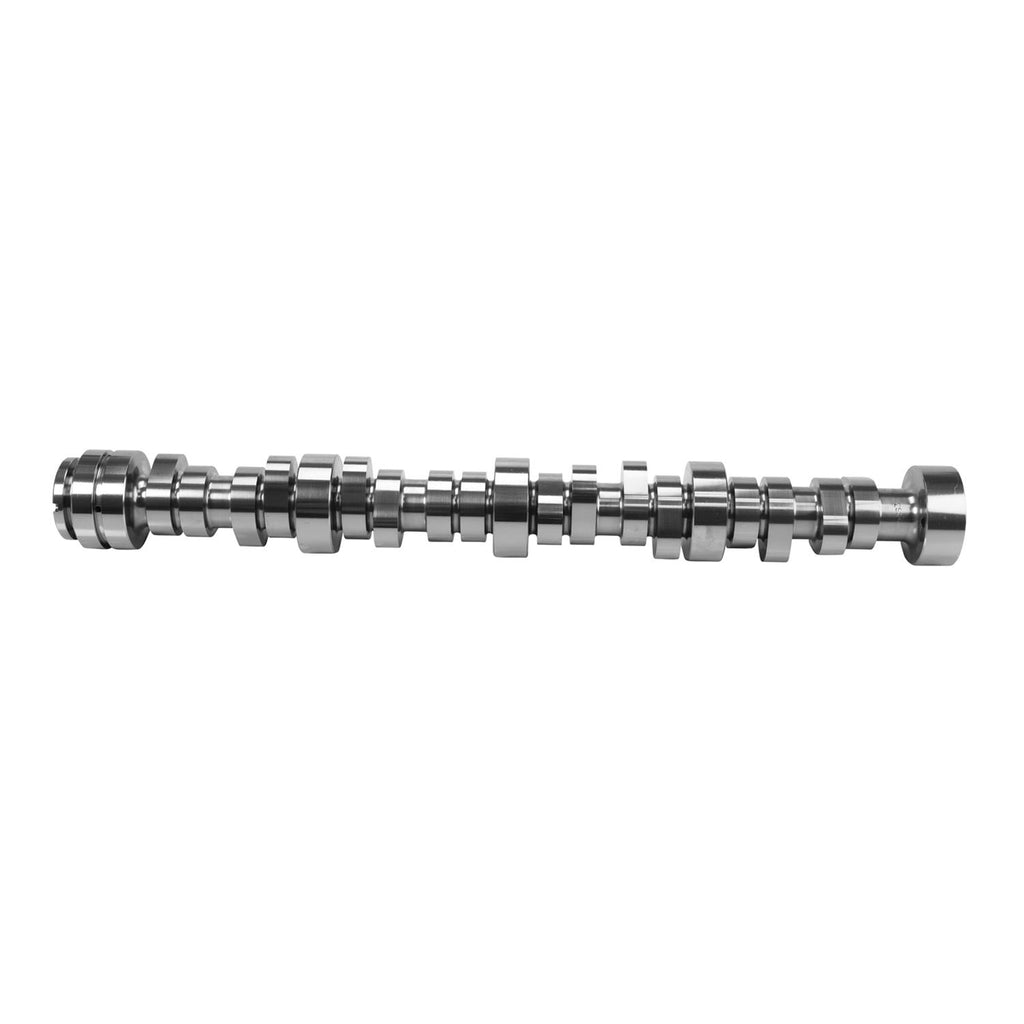

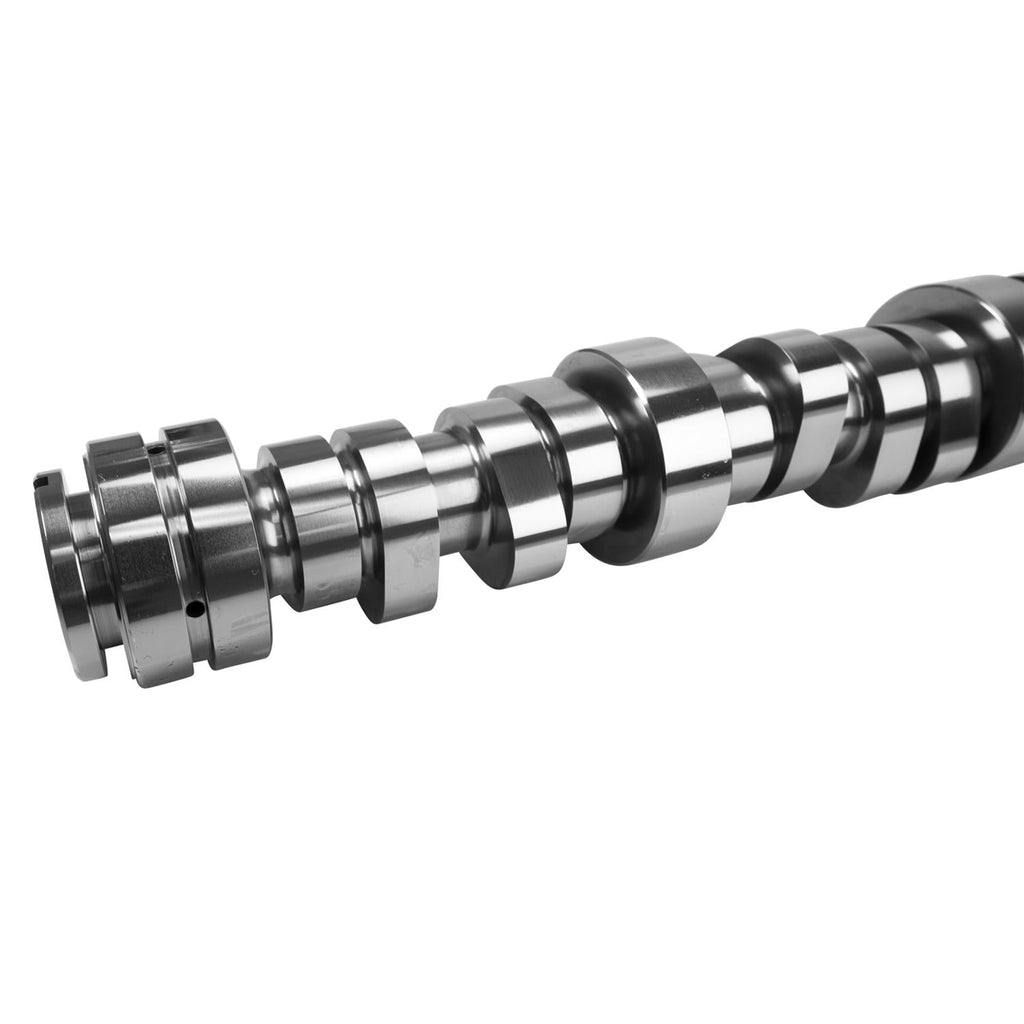

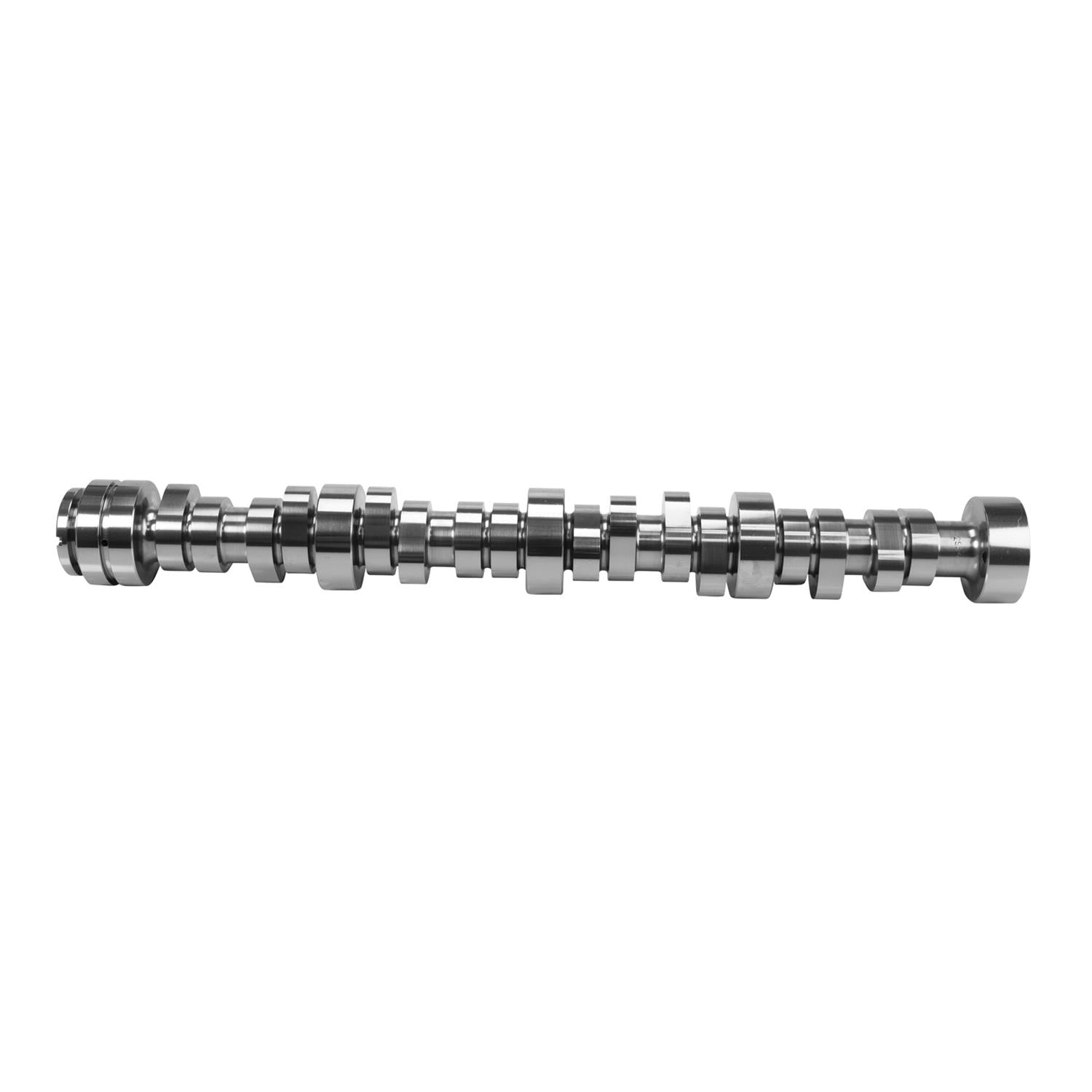

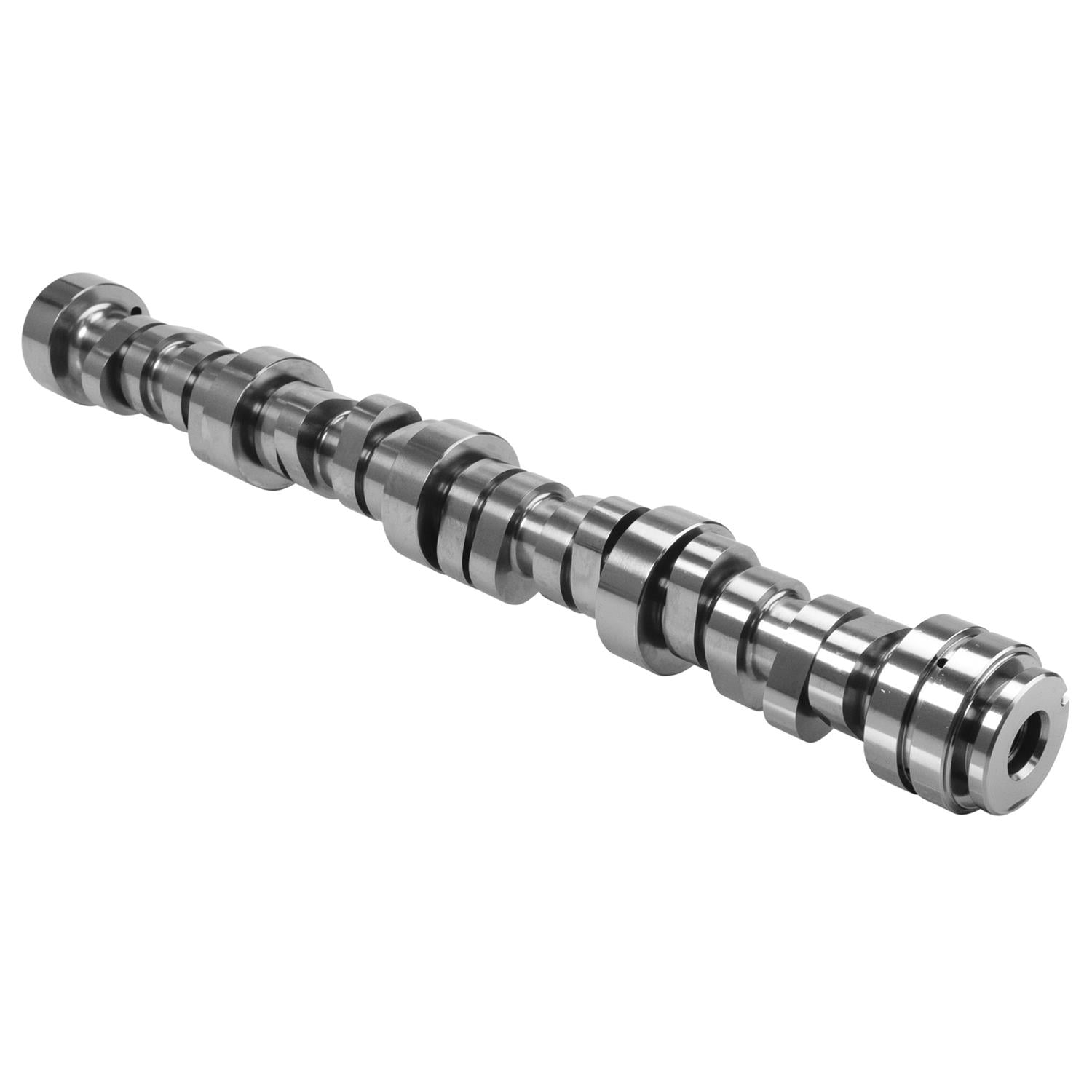

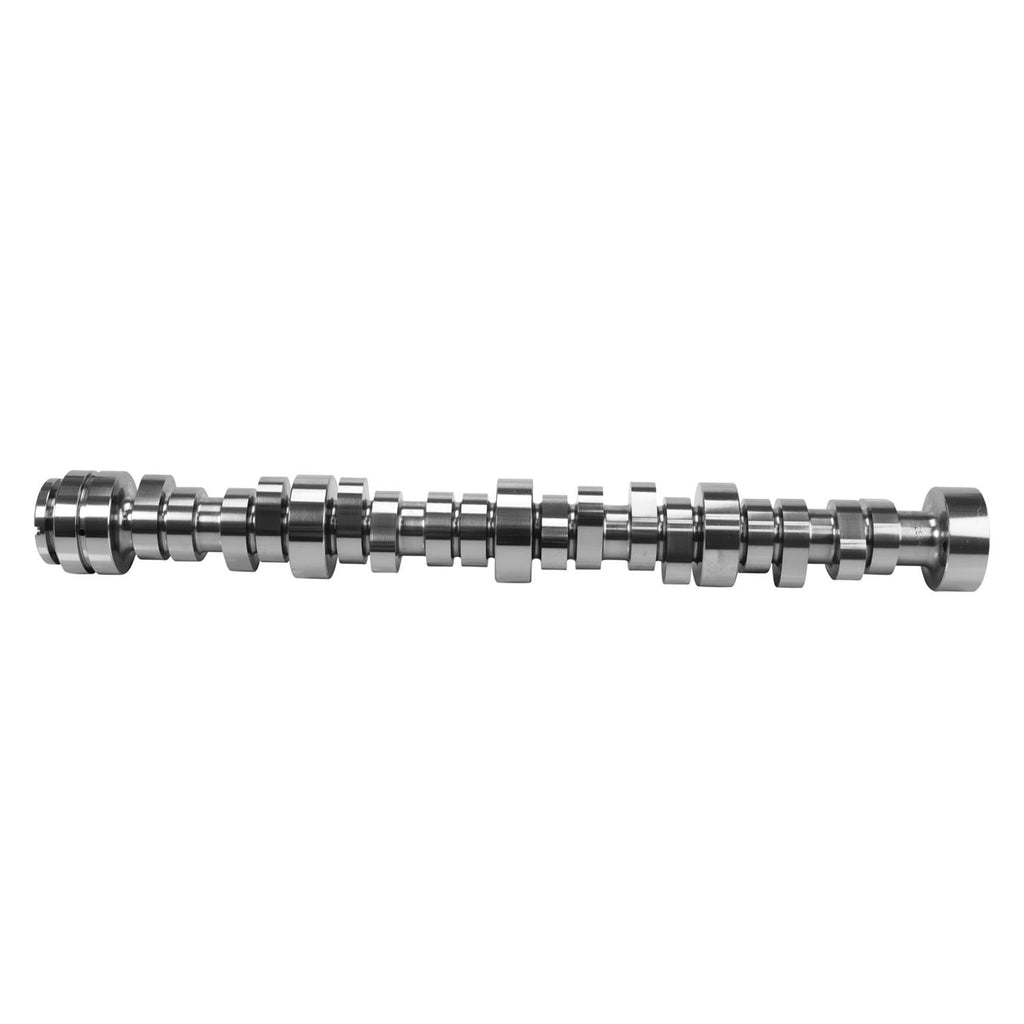

Description
COMP Cams Godzilla hydraulic roller camshaft upgrades are designed to provide amazing drivability and throttle response, while producing increased torque across the entire RPM range with a significant horsepower bump with minimal effort. They're available in three distinct models:
* Stage 1 NSR/NTR model:
Utilizes the full phaser sweep for excellent mileage and optimized performance, without compromising durability. They requires no adjustment to the factory cam phasing or ignition timing without the need for a limiter. However, minimal ECU tuning may be required to meet the maximum potential. Testing with an optimized tune resulted in over 60 hp and 15 lbs.-ft. over stock with a much broader torque curve—impressive gains with minimal effort and zero compromise.
* Stage 2 NSR model:
Maintaining use of the phaser with a limiter kit allows these camshafts to also produce incredible horsepower. They offer maximum torque in the low- to mid-range for heavy vehicles and towing. Stage 2 cams deliver an increase of over 75 lbs.-ft. of torque at 3,000 rpm! They require a phaser limiter (P/N 5473). Testing with the phaser limiter kit resulted in gains of more than 75 hp over stock. One look at the torque curve produced by this camshaft will have your tires crying for mercy.
* Stage 3 model:
Godzilla Stage 3 camshafts are made for crate engines and engine swaps into lighter vehicles and those seeking maximum horsepower while still utilizing the phaser with a limiter kit. These cams bring the exhaust note that is worthy of the Godzilla name. They will produce well over 600 hp on pump gas! Awesome power can be expected, from 5,000 to 6,700 rpm with the valve spring kit (P/N 7230GCS-KIT) and a phaser limiter (P/N 5473). Testing with the phaser limiter kit resulted in gains of nearly 100 hp and 25 lbs.-ft. over stock. This much horsepower will make even Godzilla fly.
Brand: COMP Cams
Manufacturer's Part Number: 405-201-17
Part Type: Camshafts
Product Line: COMP Cams Godzilla Hydraulic Roller Camshafts
HP Direct Part Number: CCA-405-201-17
UPC: 36584427537
Cam Style: Hydraulic roller, OE roller
Camshaft Use: Street/Truck
Basic Operating RPM Range: 1,500-6,300
Intake Duration at 050 inch Lift: 217
Exhaust Duration at 050 inch Lift: 229
Duration at 050 inch Lift: 217 int./229 exh.
Advertised Intake Duration: 275
Advertised Exhaust Duration: 288
Advertised Duration: 275 int./288 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.598 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.605 in
Valve Lift with Factory Rocker Arm Ratio: 0.598 in./0.605 exh.
Lobe Separation (degrees): 121
Camshaft Gear Attachment: 4-bolt
Remanufactured: No
Computer-Controlled Compatible: Yes
Grind Number: NTR275HR21
Valve Springs Required: No
Rotation: Clockwise
Quantity: Sold individually.
