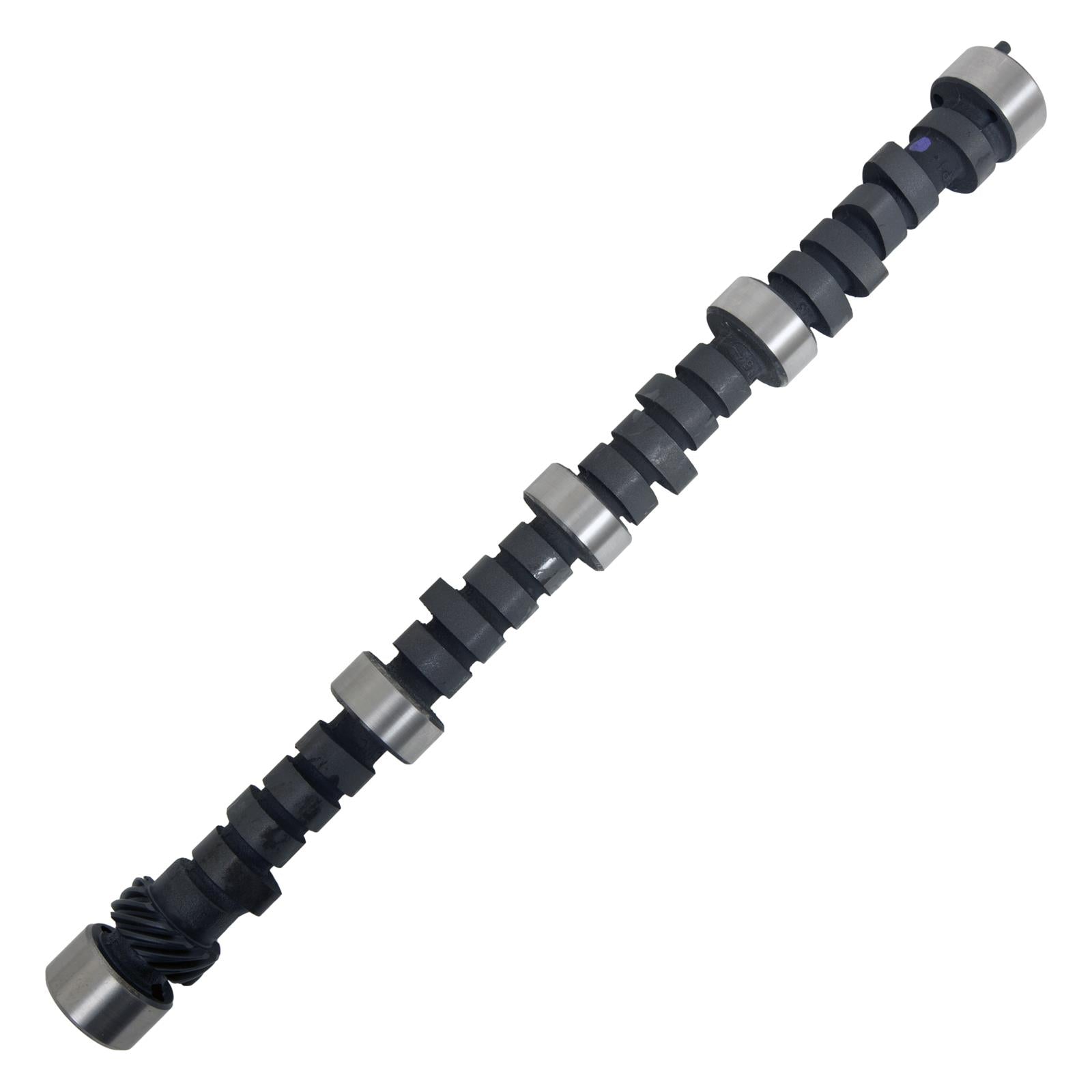

COMP Cams Dual Energy Camshafts 12-209-3

COMP Cams Dual Energy camshafts have more exhaust duration and lift than intake. They're designed for applications where a slight sacrifice in low-end power is acceptable for an increase in mid- and upper-range rpm horsepower. These cams are ideal for use with restricted exhaust port cylinder heads, or applications using a full-length exhaust system. Select the model and options designed for your vehicle and engine application.Brand: COMP Cams
Manufacturer's Part Number: 12-209-3
Part Type: Camshafts
Product Line: COMP Cams Dual Energy Camshafts
HP Direct Part Number: CCA-12-209-3
UPC: 036584313342
Cam Style: Hydraulic flat tappet
Camshaft Use: Street/Strip
Basic Operating RPM Range: 2,000-6,000
Intake Duration at 050 inch Lift: 219
Exhaust Duration at 050 inch Lift: 229
Duration at 050 inch Lift: 219 int./229 exh.
Advertised Intake Duration: 275
Advertised Exhaust Duration: 277
Advertised Duration: 275 int./277 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.462 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.482 in.
Valve Lift with Factory Rocker Arm Ratio: 0.462 int./0.482 exh.
Lobe Separation (degrees): 110
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: 275DEH
Valve Springs Required: Yes
Quantity: Sold individually.
