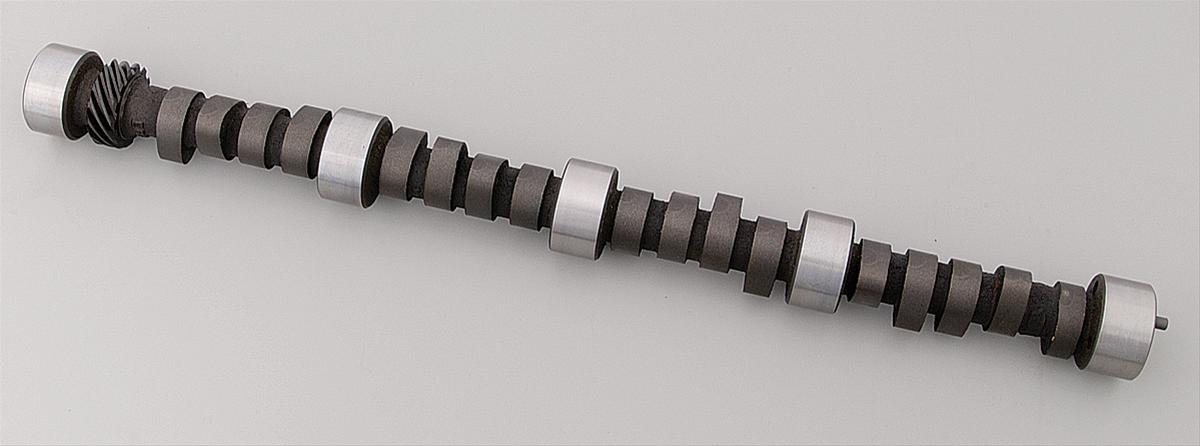

COMP Cams Drag Race Camshafts 23-770-9

COMP Cams drag race camshafts are offered in four styles: hydraulic flat tappet, hydraulic roller tappet, mechanical roller tappet, and mechanical flat tappet. These cams are ideal for the performance demands of the dragstrip, as well as street, strip, Circle Track, and other applications. Over a hundred models are available; choose the camshaft designed for your vehicle and engine family.Brand: COMP Cams
Manufacturer's Part Number: 23-770-9
Part Type: Camshafts
Product Line: COMP Cams Drag Race Camshafts
HP Direct Part Number: CCA-23-770-9
UPC: 036584670414
Cam Style: Solid roller, Retro-fit
Camshaft Use: Drag race
Basic Operating RPM Range: 5,000-7,200
Intake Duration at 050 inch Lift: 287
Exhaust Duration at 050 inch Lift: 287
Duration at 050 inch Lift: 287 int./287 exh.
Advertised Intake Duration: 323
Advertised Exhaust Duration: 323
Advertised Duration: 323 int./323 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.690 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.690 in.
Valve Lift with Factory Rocker Arm Ratio: 0.690 int./0.690 exh.
Lobe Separation (degrees): 108
Camshaft Gear Attachment: 3-bolt
Intake Valve Lash: 0.028 in.
Exhaust Valve Lash: 0.030 in.
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: 323BR-8
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: 3-bolt camshaft. Requires aftermarket valve springs.
