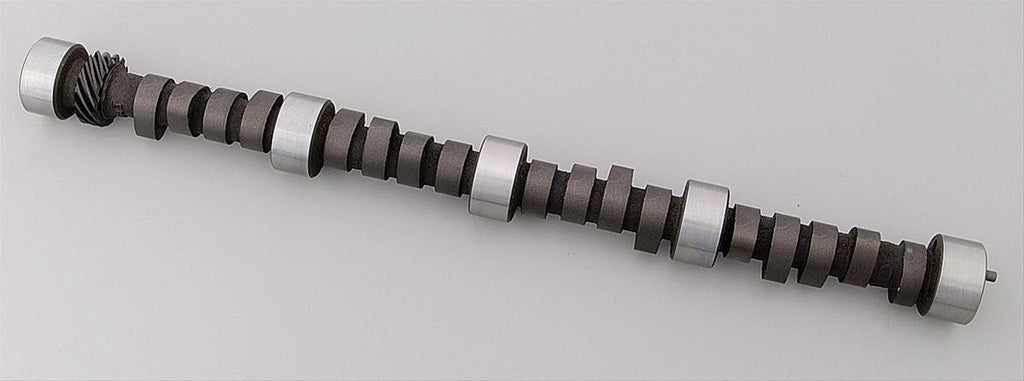

COMP Cams Drag Race Camshafts 23-634-5

COMP Cams drag race camshafts are offered in four styles: hydraulic flat tappet, hydraulic roller tappet, mechanical roller tappet, and mechanical flat tappet. These cams are ideal for the performance demands of the dragstrip, as well as street, strip, Circle Track, and other applications. Over a hundred models are available; choose the camshaft designed for your vehicle and engine family.Brand: COMP Cams
Manufacturer's Part Number: 23-634-5
Part Type: Camshafts
Product Line: COMP Cams Drag Race Camshafts
HP Direct Part Number: CCA-23-634-5
UPC: 036584080251
Cam Style: Solid flat tappet
Camshaft Use: Drag race
Basic Operating RPM Range: 5,000-7,500
Intake Duration at 050 inch Lift: 279
Exhaust Duration at 050 inch Lift: 287
Duration at 050 inch Lift: 279 int./287 exh.
Advertised Intake Duration: 305
Advertised Exhaust Duration: 320
Advertised Duration: 305 int./320 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.650 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.630 in.
Valve Lift with Factory Rocker Arm Ratio: 0.650 int./0.630 exh.
Lobe Separation (degrees): 110
Camshaft Gear Attachment: 3-bolt
Intake Valve Lash: 0.018 in.
Exhaust Valve Lash: 0.020 in.
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: TL304S-8
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: 3-bolt camshaft. Requires aftermarket valve springs.
