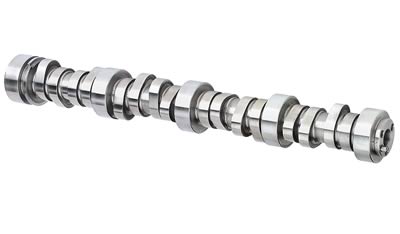

COMP Cams Drag Race Camshafts 20-719-9

COMP Cams drag race camshafts are offered in four styles: hydraulic flat tappet, hydraulic roller tappet, mechanical roller tappet, and mechanical flat tappet. These cams are ideal for the performance demands of the dragstrip, as well as street, strip, Circle Track, and other applications. Over a hundred models are available; choose the camshaft designed for your vehicle and engine family.Brand: COMP Cams
Manufacturer's Part Number: 20-719-9
Part Type: Camshafts
Product Line: COMP Cams Drag Race Camshafts
HP Direct Part Number: CCA-20-719-9
UPC: 036584081777
Cam Style: Solid roller, Retro-fit
Camshaft Use: Drag race
Basic Operating RPM Range: 4,200-7,400
Intake Duration at 050 inch Lift: 263
Exhaust Duration at 050 inch Lift: 270
Duration at 050 inch Lift: 263 int./270 exh.
Advertised Intake Duration: 296
Advertised Exhaust Duration: 303
Advertised Duration: 296 int./303 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.649 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.651 in.
Valve Lift with Factory Rocker Arm Ratio: 0.649 int./0.651 exh.
Lobe Separation (degrees): 106
Intake Valve Lash: 0.020 in.
Exhaust Valve Lash: 0.022 in.
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: CRS RX296S-R6
Valve Springs Required: Yes
Quantity: Sold individually.
