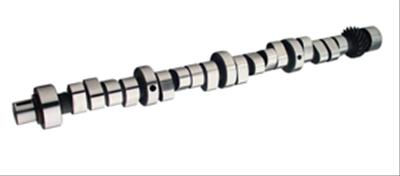

COMP Cams Drag Race Camshafts 20-716-9

COMP Cams drag race camshafts are offered in four styles: hydraulic flat tappet, hydraulic roller tappet, mechanical roller tappet, and mechanical flat tappet. These cams are ideal for the performance demands of the dragstrip, as well as street, strip, Circle Track, and other applications. Over a hundred models are available; choose the camshaft designed for your vehicle and engine family.Brand: COMP Cams
Manufacturer's Part Number: 20-716-9
Part Type: Camshafts
Product Line: COMP Cams Drag Race Camshafts
HP Direct Part Number: CCA-20-716-9
UPC: 036584081746
Cam Style: Solid roller, Retro-fit
Camshaft Use: Drag race
Basic Operating RPM Range: 5,500-8,000
Intake Duration at 050 inch Lift: 281
Exhaust Duration at 050 inch Lift: 288
Duration at 050 inch Lift: 281 int./288 exh.
Advertised Intake Duration: 314
Advertised Exhaust Duration: 321
Advertised Duration: 314 int./321 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.661 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.664 in.
Valve Lift with Factory Rocker Arm Ratio: 0.661 int./0.664 exh.
Lobe Separation (degrees): 110
Intake Valve Lash: 0.026 in.
Exhaust Valve Lash: 0.028 in.
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: CRS 314R-10
Valve Springs Required: Yes
Quantity: Sold individually.
