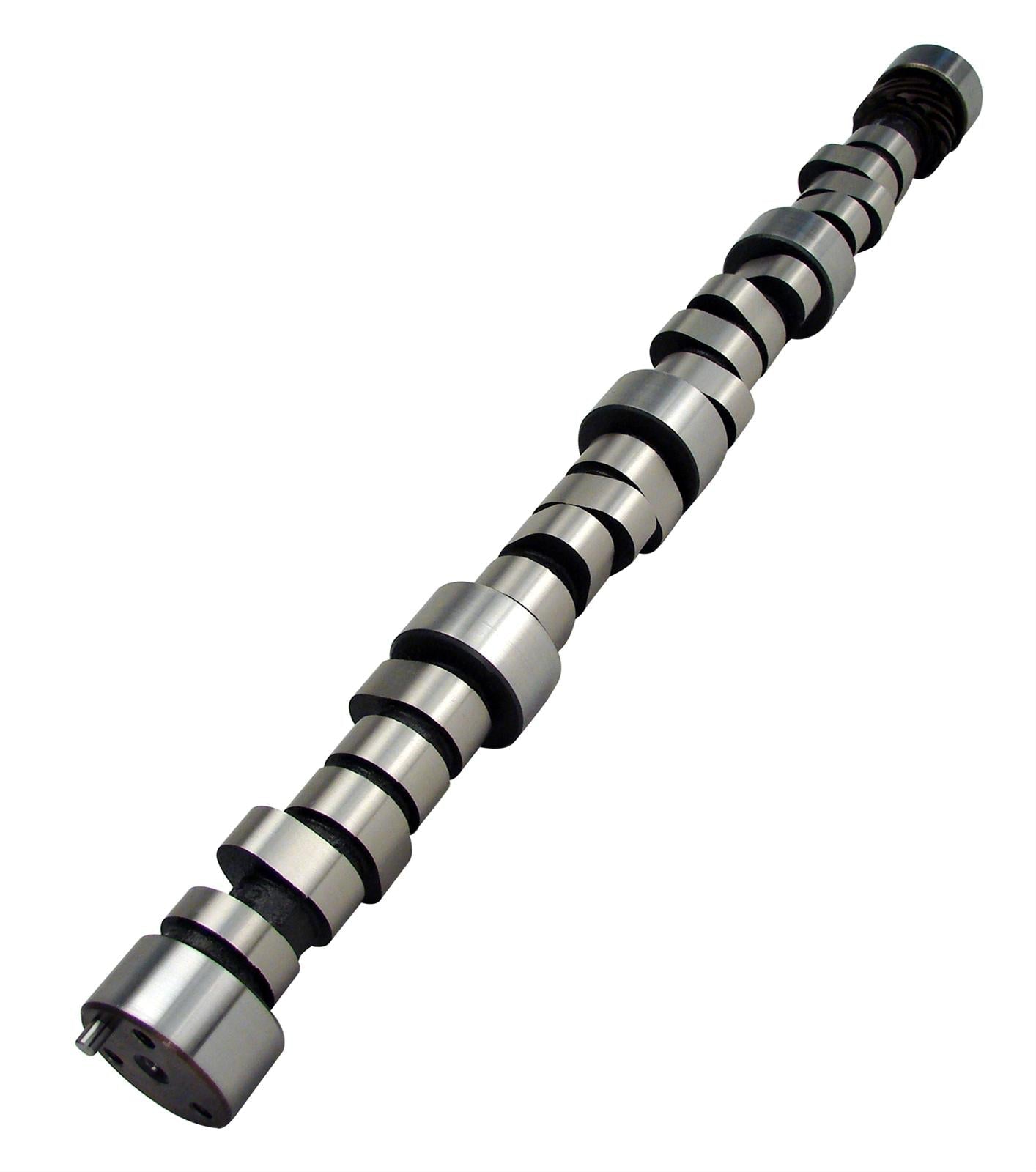

COMP Cams Drag Race Camshafts 12-906-9

COMP Cams drag race camshafts are offered in four styles: hydraulic flat tappet, hydraulic roller tappet, mechanical roller tappet, and mechanical flat tappet. These cams are ideal for the performance demands of the dragstrip, as well as street, strip, Circle Track, and other applications. Over a hundred models are available; choose the camshaft designed for your vehicle and engine family.Brand: COMP Cams
Manufacturer's Part Number: 12-906-9
Part Type: Camshafts
Product Line: COMP Cams Drag Race Camshafts
HP Direct Part Number: CCA-12-906-9
UPC: 036584690184
Cam Style: Solid roller, Retro-fit
Camshaft Use: Drag race
Basic Operating RPM Range: 4,500-7,500
Intake Duration at 050 inch Lift: 276
Exhaust Duration at 050 inch Lift: 284
Duration at 050 inch Lift: 276 int./284 exh.
Advertised Intake Duration: 312
Advertised Exhaust Duration: 322
Advertised Duration: 312 int./322 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.630 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.630 in.
Valve Lift with Factory Rocker Arm Ratio: 0.630 int./0.630 exh.
Lobe Separation (degrees): 107
Intake Valve Lash: 0.020 in.
Exhaust Valve Lash: 0.022 in.
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: CS 312A-R7
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: Requires upgraded gear, thrust button, and wear plate.
