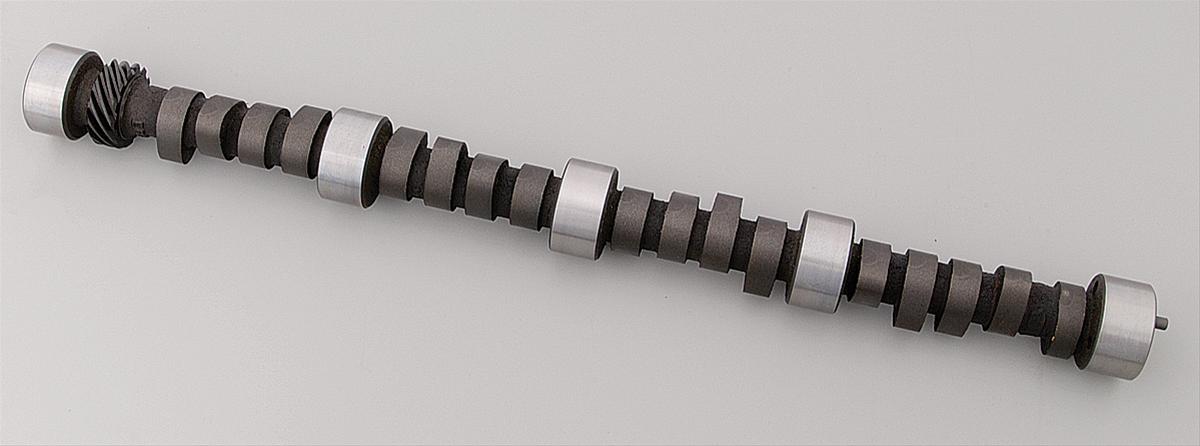

COMP Cams Drag Race Camshafts 12-823-14

COMP Cams drag race camshafts are offered in four styles: hydraulic flat tappet, hydraulic roller tappet, mechanical roller tappet, and mechanical flat tappet. These cams are ideal for the performance demands of the dragstrip, as well as street, strip, Circle Track, and other applications. Over a hundred models are available; choose the camshaft designed for your vehicle and engine family.Brand: COMP Cams
Manufacturer's Part Number: 12-823-14
Part Type: Camshafts
Product Line: COMP Cams Drag Race Camshafts
HP Direct Part Number: CCA-12-823-14
UPC: 036584083979
Cam Style: Solid roller, Retro-fit
Camshaft Use: Drag race
Basic Operating RPM Range: 4,000-7,000
Intake Duration at 050 inch Lift: 252
Exhaust Duration at 050 inch Lift: 258
Duration at 050 inch Lift: 252 int./258 exh.
Advertised Intake Duration: 288
Advertised Exhaust Duration: 296
Advertised Duration: 288 int./296 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.630 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.630 in.
Valve Lift with Factory Rocker Arm Ratio: 0.630 int./0.630 exh.
Lobe Separation (degrees): 106
Intake Valve Lash: 0.020 in.
Exhaust Valve Lash: 0.022 in.
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: CS 47S 288R-6
Valve Springs Required: Yes
Quantity: Sold individually.
