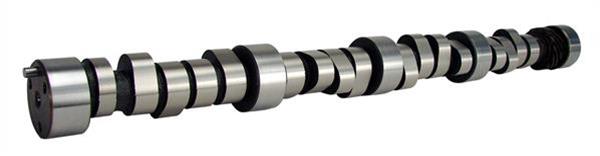

COMP Cams Drag Race Camshafts 11-825-9

COMP Cams drag race camshafts are offered in four styles: hydraulic flat tappet, hydraulic roller tappet, mechanical roller tappet, and mechanical flat tappet. These cams are ideal for the performance demands of the dragstrip, as well as street, strip, Circle Track, and other applications. Over a hundred models are available; choose the camshaft designed for your vehicle and engine family.Brand: COMP Cams
Manufacturer's Part Number: 11-825-9
Part Type: Camshafts
Product Line: COMP Cams Drag Race Camshafts
HP Direct Part Number: CCA-11-825-9
UPC: 036584065951
Cam Style: Solid roller, Retro-fit
Camshaft Use: Drag race
Basic Operating RPM Range: 5,000-7,500
Intake Duration at 050 inch Lift: 274
Exhaust Duration at 050 inch Lift: 282
Duration at 050 inch Lift: 274 int./282 exh.
Advertised Intake Duration: 311
Advertised Exhaust Duration: 315
Advertised Duration: 311 int./315 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.748 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.710 in.
Valve Lift with Factory Rocker Arm Ratio: 0.748 int./0.710 exh.
Lobe Separation (degrees): 110
Intake Valve Lash: 0.026 in.
Exhaust Valve Lash: 0.028 in.
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: CB 311R-10
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: Requires upgraded gear, thrust button, and wear plate.
