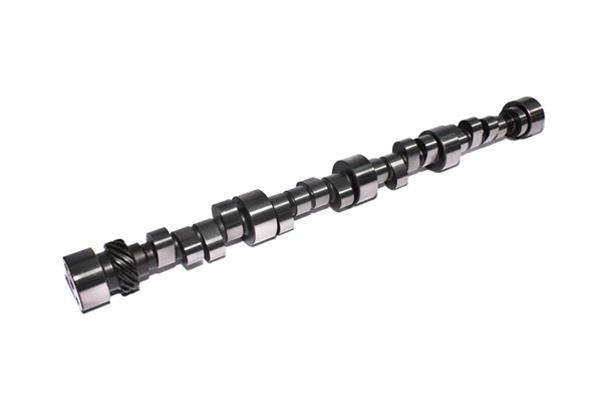

COMP Cams Drag Race Camshafts 11-752-14

COMP Cams drag race camshafts are offered in four styles: hydraulic flat tappet, hydraulic roller tappet, mechanical roller tappet, and mechanical flat tappet. These cams are ideal for the performance demands of the dragstrip, as well as street, strip, Circle Track, and other applications. Over a hundred models are available; choose the camshaft designed for your vehicle and engine family.Brand: COMP Cams
Manufacturer's Part Number: 11-752-14
Part Type: Camshafts
Product Line: COMP Cams Drag Race Camshafts
HP Direct Part Number: CCA-11-752-14
UPC: 036584084099
Cam Style: Solid roller, Retro-fit
Camshaft Use: Drag race
Camshaft Manufacturers Description: Large cubic inch Quick 16, Eliminator with high-ratio rockers, and fast bracket.
Basic Operating RPM Range: 5,000-9,000
Intake Duration at 050 inch Lift: 285
Exhaust Duration at 050 inch Lift: 300
Duration at 050 inch Lift: 285 int./300 exh.
Advertised Intake Duration: 318
Advertised Exhaust Duration: 338
Advertised Duration: 313 int./338 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.824 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.800 in.
Valve Lift with Factory Rocker Arm Ratio: 0.824 int./0.800 exh.
Lobe Separation (degrees): 114
Camshaft Gear Attachment: 3-bolt
Intake Valve Lash: 0.024 in.
Exhaust Valve Lash: 0.026 in.
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: CB 47S 318RXD-14
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: Cam has 4/7 swap firing order. Requires upgraded gear, thrust button, and wear plate.
