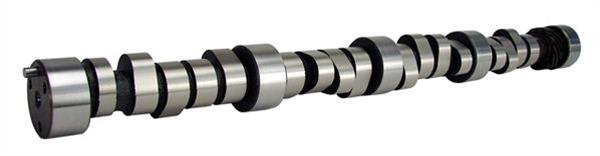

COMP Cams Drag Race Camshafts 11-748-14

Brand: COMP Cams
Manufacturer's Part Number: 11-748-14
Part Type: Camshafts
Product Line: COMP Cams Drag Race Camshafts
Automotive Fittings Part Number: CCA-11-748-14
UPC: 036584084037
Cam Style: Solid roller, Retro-fit
Camshaft Use: Drag race
Basic Operating RPM Range: 4,800-7,400
Intake Duration at 050 inch Lift: 278
Exhaust Duration at 050 inch Lift: 282
Duration at 050 inch Lift: 278 int./282 exh.
Advertised Intake Duration: 312
Advertised Exhaust Duration: 319
Advertised Duration: 312 int./319 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.714 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.680 in.
Valve Lift with Factory Rocker Arm Ratio: 0.714 int./0.680 exh.
Lobe Separation (degrees): 110
Intake Valve Lash: 0.024 in.
Exhaust Valve Lash: 0.026 in.
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: 47S 312-R10
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: With 18736542 firing order. Has a 4 and 7 firing order swap. Requires upgraded gear, thrust button, and wear plate.
Description:
COMP Cams drag race camshafts are offered in four styles: hydraulic flat tappet, hydraulic roller tappet, mechanical roller tappet, and mechanical flat tappet. These cams are ideal for the performance demands of the dragstrip, as well as street, strip, Circle Track, and other applications. Over a hundred models are available; choose the camshaft designed for your vehicle and engine family.
