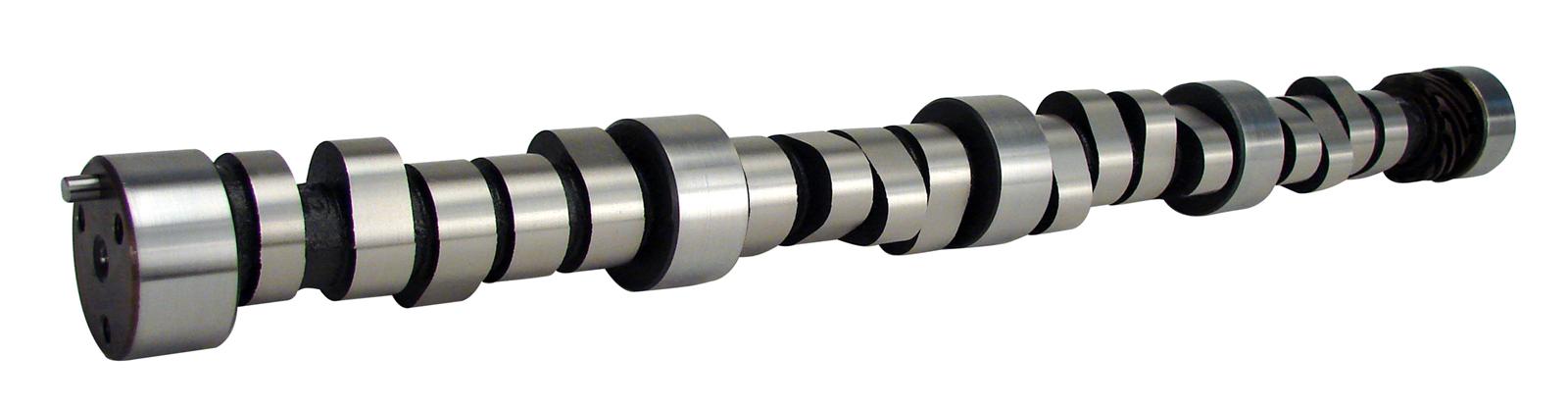

COMP Cams Drag Race Camshafts 11-747-14

COMP Cams drag race camshafts are offered in four styles: hydraulic flat tappet, hydraulic roller tappet, mechanical roller tappet, and mechanical flat tappet. These cams are ideal for the performance demands of the dragstrip, as well as street, strip, Circle Track, and other applications. Over a hundred models are available; choose the camshaft designed for your vehicle and engine family.Brand: COMP Cams
Manufacturer's Part Number: 11-747-14
Part Type: Camshafts
Product Line: COMP Cams Drag Race Camshafts
HP Direct Part Number: CCA-11-747-14
UPC: 036584084068
Cam Style: Solid roller, Retro-fit
Camshaft Use: Drag race
Basic Operating RPM Range: 5,000-8,500
Intake Duration at 050 inch Lift: 286
Exhaust Duration at 050 inch Lift: 296
Duration at 050 inch Lift: 286 int./296 exh.
Advertised Intake Duration: 321
Advertised Exhaust Duration: 336
Advertised Duration: 321 int./336 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.748 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.748 in.
Valve Lift with Factory Rocker Arm Ratio: 0.748 int./0.748 exh.
Lobe Separation (degrees): 112
Intake Valve Lash: 0.026 in.
Exhaust Valve Lash: 0.028 in.
Remanufactured: No
Computer-Controlled Compatible: No
Grind Number: 47S 321-R12
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: With 18736542 firing order. Has a 4 and 7 firing order swap. Requires upgraded gear, thrust button, and wear plate.
