Description

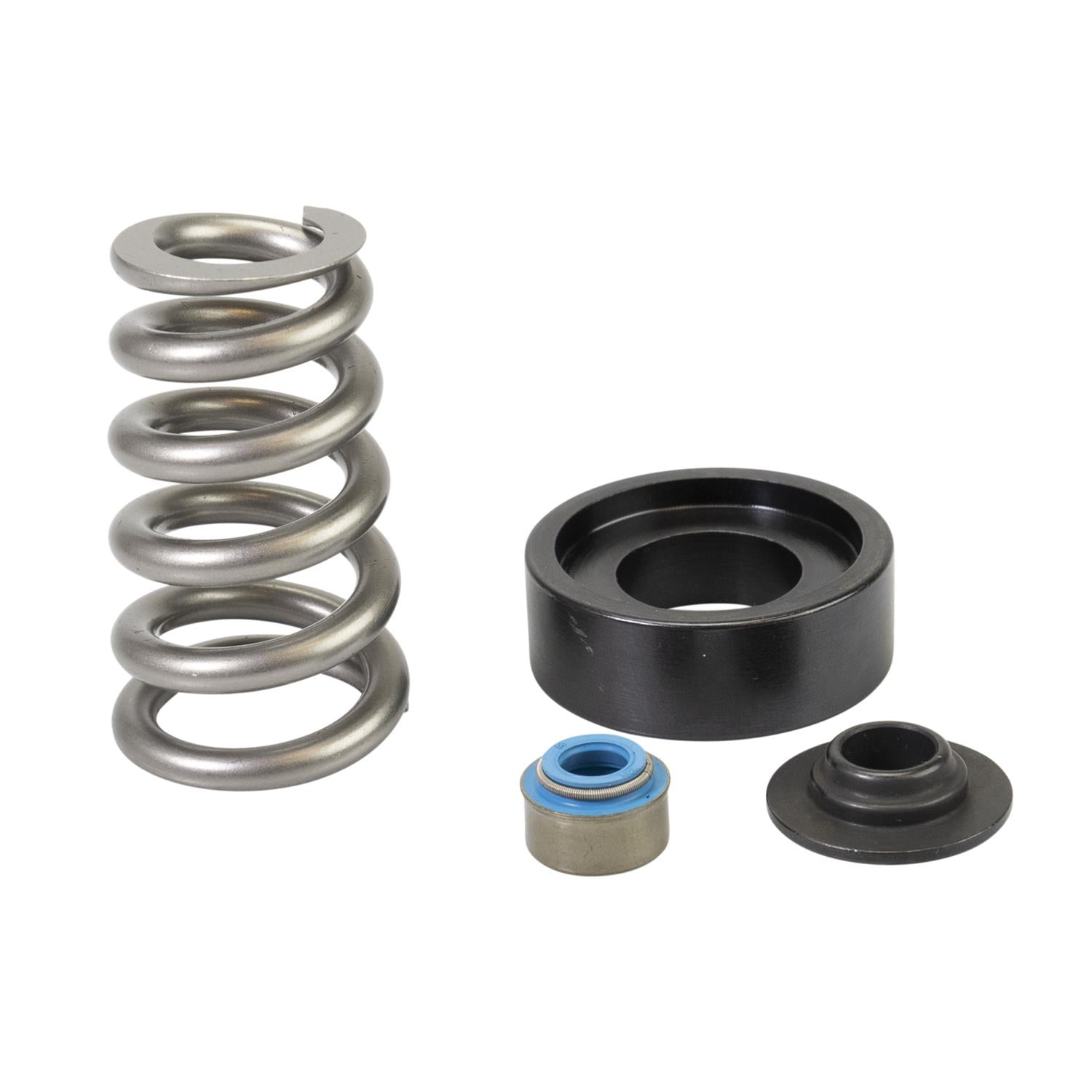

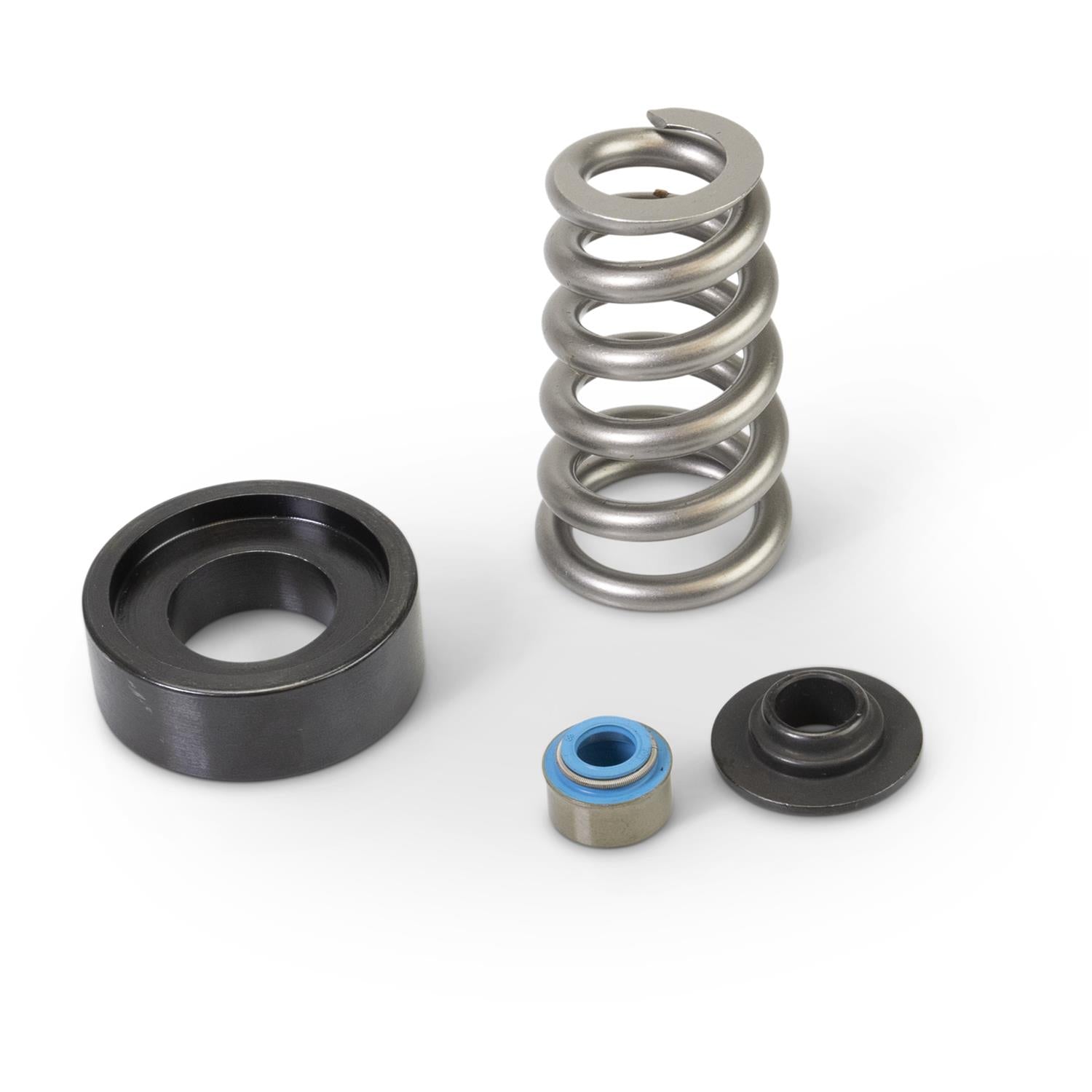

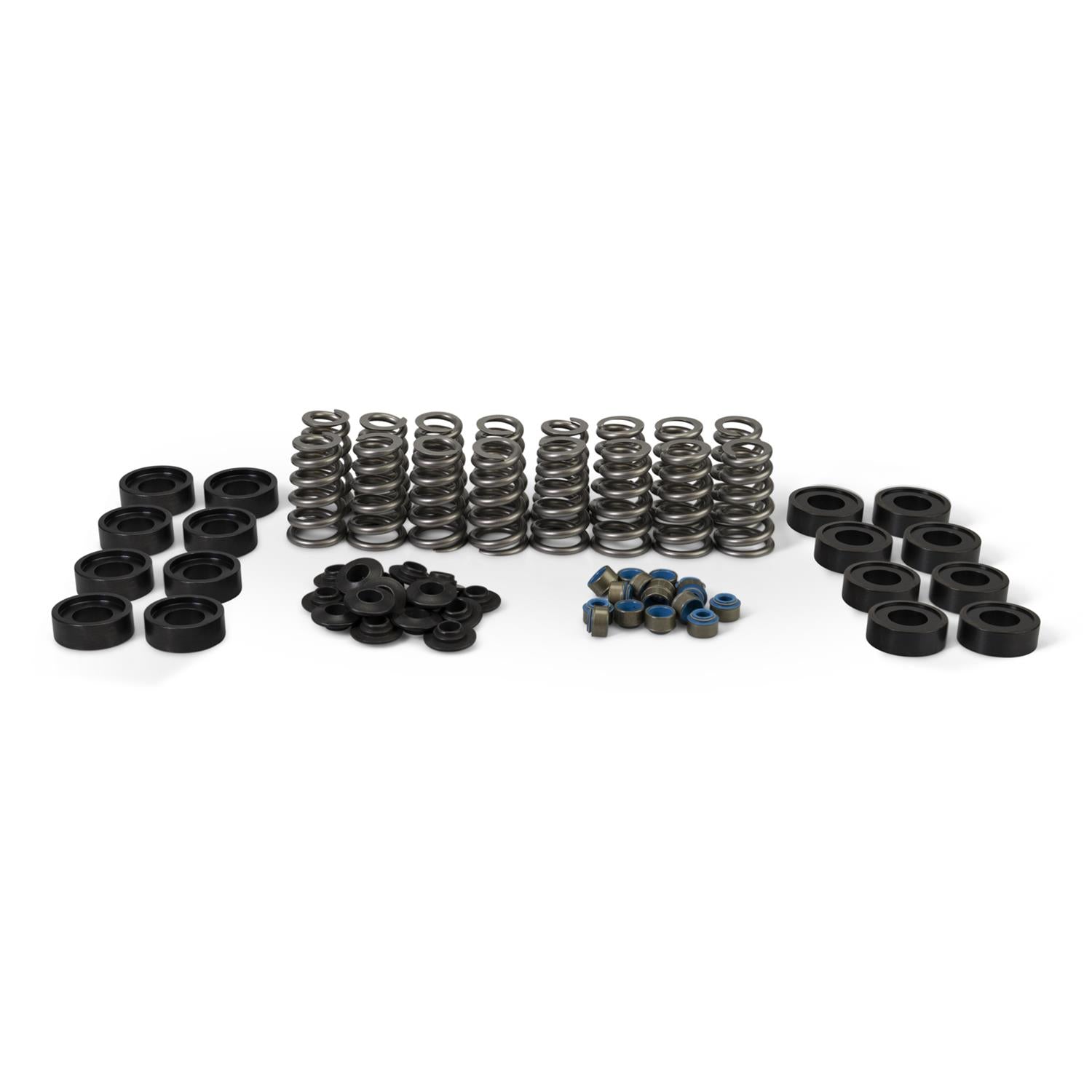

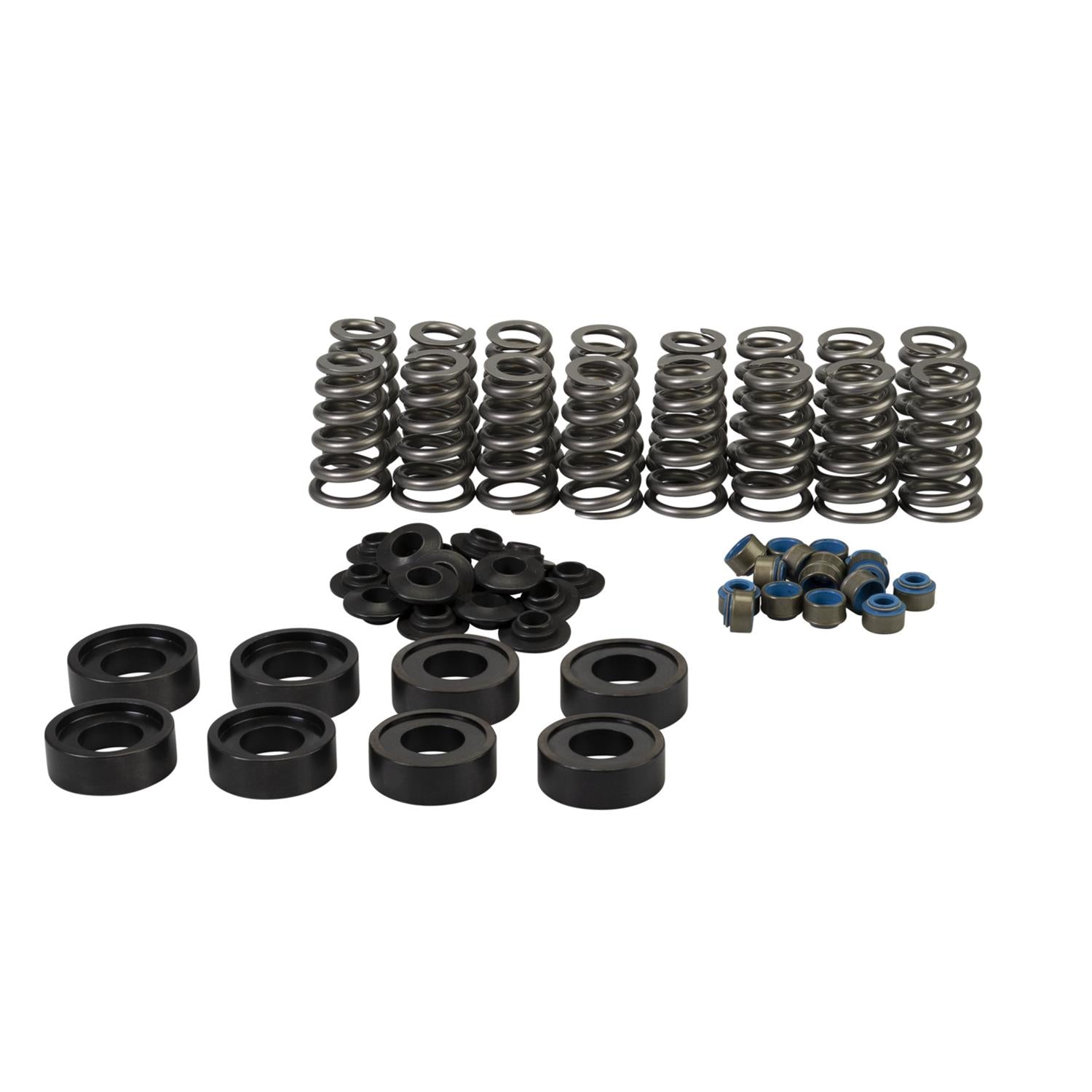

These cone-shaped springs from COMP Cams are for high performance street applications where the heads are not removed and machined for larger springs. The springs will work without any modifications. The kits also include retainers, locks, and seals.Brand: COMP Cams
Manufacturer's Part Number: 7230GCS-KIT
Part Type: Valve Springs
Product Line: COMP Cams Conical Valve Spring Kits
HP Direct Part Number: CCA-7230GCS-KIT
UPC: 36584426875
Valve Spring Style: Conical
Number of Springs Per Valve: Single
Maximum Valve Lift (in.): 0.675 in.
Retainers Included: Yes
Retainer Material: Chromoly steel
Outside Diameter of Outer Spring (in.): 1.650 in.
Coil Bind Height (in.): 1.185 in.
Damper Spring Included: No
Spring Rate (lbs/in.): 520 lbs./in.
Locks Included: No
Lock Style: 7 degree
Valve Stem Seals Included: Yes
Valve Springs Coated: No
Valve Stem Diameter (in.): 0.315 in.
Valve Stem Diameter (mm): 8.00mm
Remanufactured: No
Quantity: Sold as a kit.
Manufacturer's Part Number: 7230GCS-KIT
Part Type: Valve Springs
Product Line: COMP Cams Conical Valve Spring Kits
HP Direct Part Number: CCA-7230GCS-KIT
UPC: 36584426875
Valve Spring Style: Conical
Number of Springs Per Valve: Single
Maximum Valve Lift (in.): 0.675 in.
Retainers Included: Yes
Retainer Material: Chromoly steel
Outside Diameter of Outer Spring (in.): 1.650 in.
Coil Bind Height (in.): 1.185 in.
Damper Spring Included: No
Spring Rate (lbs/in.): 520 lbs./in.
Locks Included: No
Lock Style: 7 degree
Valve Stem Seals Included: Yes
Valve Springs Coated: No
Valve Stem Diameter (in.): 0.315 in.
Valve Stem Diameter (mm): 8.00mm
Remanufactured: No
Quantity: Sold as a kit.
