Description

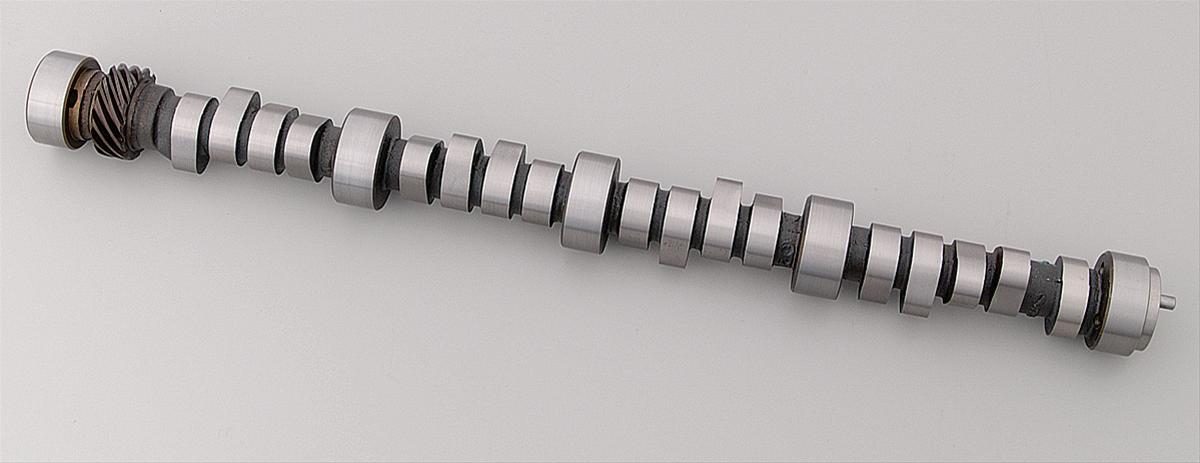

COMP Cams computer-controlled camshafts are specifically designed for the serious street performance enthusiast. Whether it's for a street rod or a show car with power accessories, one of these cams will fit your engine's needs.Brand: COMP Cams
Manufacturer's Part Number: 20-624-9
Part Type: Camshafts
Product Line: COMP Cams Computer-Controlled Camshafts
HP Direct Part Number: CCA-20-624-9
UPC: 036584082712
Cam Style: Hydraulic roller, Retro-fit
Camshaft Use: Street
Basic Operating RPM Range: 900-5,200
Intake Duration at 050 inch Lift: 210
Exhaust Duration at 050 inch Lift: 220
Duration at 050 inch Lift: 210 int./220 exh.
Advertised Intake Duration: 264
Advertised Exhaust Duration: 274
Advertised Duration: 264 int./274 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.480 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.480 in.
Valve Lift with Factory Rocker Arm Ratio: 0.480 int./0.480 exh.
Lobe Separation (degrees): 112
Remanufactured: No
Computer-Controlled Compatible: Yes
Grind Number: CRS 264HR-12
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: With short snout and shaft 1.5:1 rockers.
Manufacturer's Part Number: 20-624-9
Part Type: Camshafts
Product Line: COMP Cams Computer-Controlled Camshafts
HP Direct Part Number: CCA-20-624-9
UPC: 036584082712
Cam Style: Hydraulic roller, Retro-fit
Camshaft Use: Street
Basic Operating RPM Range: 900-5,200
Intake Duration at 050 inch Lift: 210
Exhaust Duration at 050 inch Lift: 220
Duration at 050 inch Lift: 210 int./220 exh.
Advertised Intake Duration: 264
Advertised Exhaust Duration: 274
Advertised Duration: 264 int./274 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.480 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.480 in.
Valve Lift with Factory Rocker Arm Ratio: 0.480 int./0.480 exh.
Lobe Separation (degrees): 112
Remanufactured: No
Computer-Controlled Compatible: Yes
Grind Number: CRS 264HR-12
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: With short snout and shaft 1.5:1 rockers.
