Description

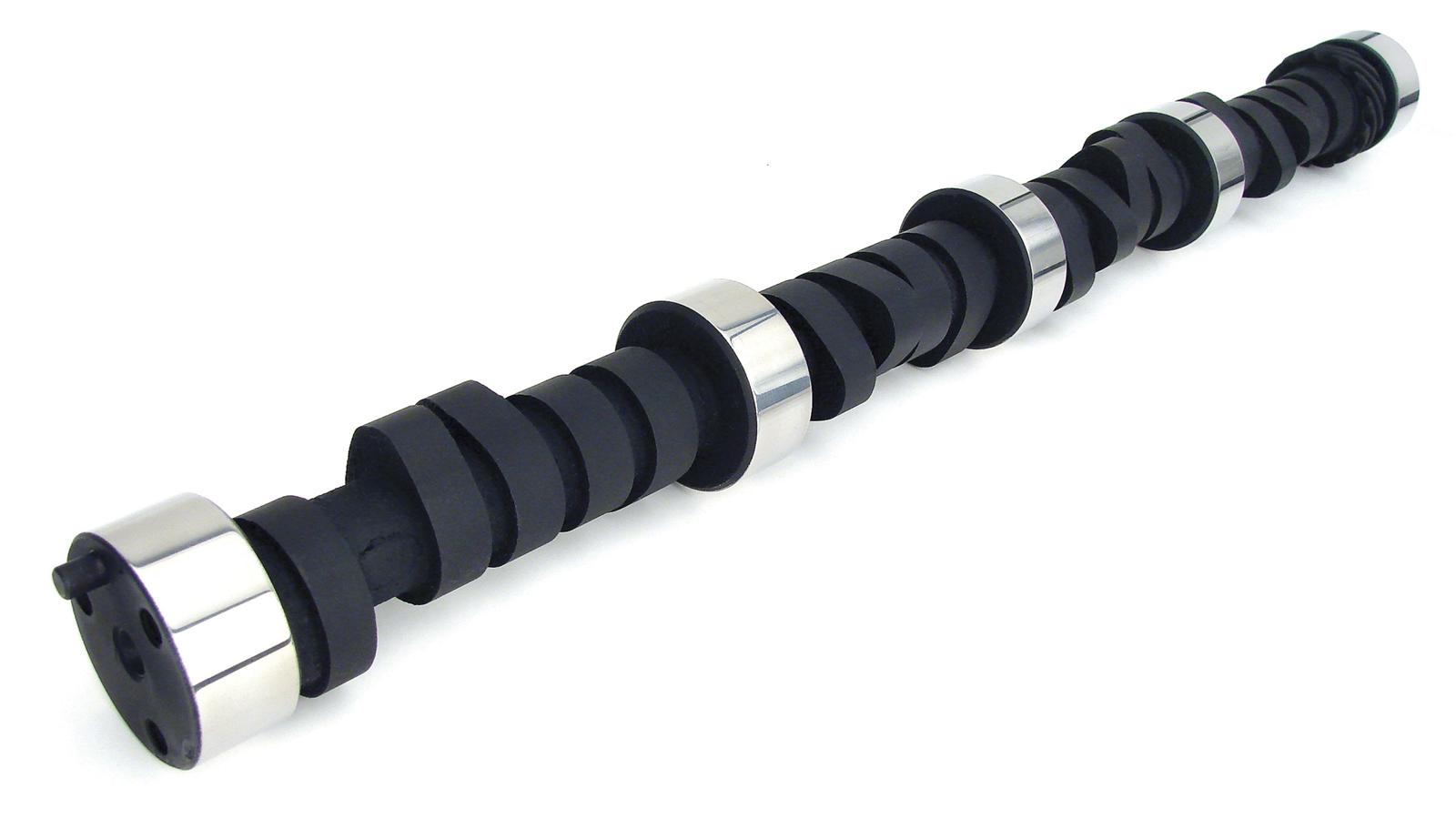

COMP Cams computer-controlled camshafts are specifically designed for the serious street performance enthusiast. Whether it's for a street rod or a show car with power accessories, one of these cams will fit your engine's needs.Brand: COMP Cams
Manufacturer's Part Number: 12-402-4
Part Type: Camshafts
Product Line: COMP Cams Computer-Controlled Camshafts
HP Direct Part Number: CCA-12-402-4
UPC: 036584610717
Cam Style: Hydraulic flat tappet
Camshaft Use: Street/Strip
Basic Operating RPM Range: 1,500-5,500
Intake Duration at 050 inch Lift: 212
Exhaust Duration at 050 inch Lift: 218
Duration at 050 inch Lift: 212 int./218 exh.
Advertised Intake Duration: 260
Advertised Exhaust Duration: 268
Advertised Duration: 260 int./268 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.444 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.444 in.
Valve Lift with Factory Rocker Arm Ratio: 0.444 int./0.444 exh.
Lobe Separation (degrees): 114
Remanufactured: No
Computer-Controlled Compatible: Yes
Grind Number: CS 260AH-14
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: CARB EO is for 1987 and earlier applications only.
CARB EO Number(s): D-279-6
Emissions: California EO Approved
Manufacturer's Part Number: 12-402-4
Part Type: Camshafts
Product Line: COMP Cams Computer-Controlled Camshafts
HP Direct Part Number: CCA-12-402-4
UPC: 036584610717
Cam Style: Hydraulic flat tappet
Camshaft Use: Street/Strip
Basic Operating RPM Range: 1,500-5,500
Intake Duration at 050 inch Lift: 212
Exhaust Duration at 050 inch Lift: 218
Duration at 050 inch Lift: 212 int./218 exh.
Advertised Intake Duration: 260
Advertised Exhaust Duration: 268
Advertised Duration: 260 int./268 exh.
Intake Valve Lift with Factory Rocker Arm Ratio: 0.444 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.444 in.
Valve Lift with Factory Rocker Arm Ratio: 0.444 int./0.444 exh.
Lobe Separation (degrees): 114
Remanufactured: No
Computer-Controlled Compatible: Yes
Grind Number: CS 260AH-14
Valve Springs Required: Yes
Quantity: Sold individually.
Notes: CARB EO is for 1987 and earlier applications only.
CARB EO Number(s): D-279-6
Emissions: California EO Approved
