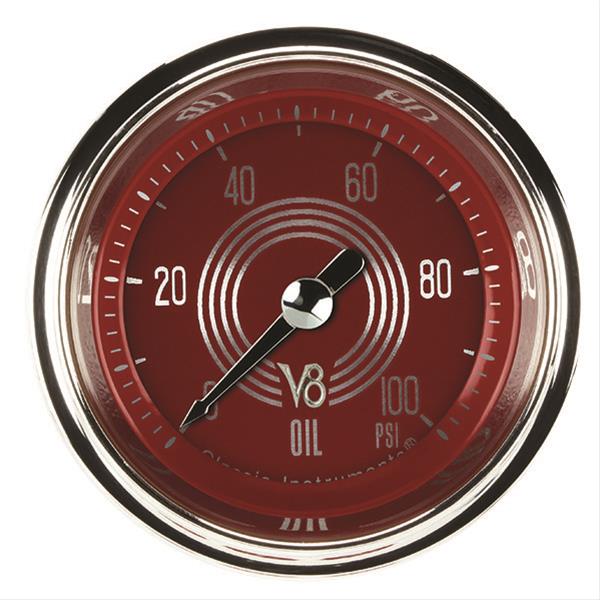

Classic Instruments V8 Red Steelie Series Gauges V8RS181SHC

Step up the look of your hot rod or car with Classic Instruments V8 Red Steelie Series gauges. They feature a vivid red background with spun aluminum numbers and accent graphics that brightly bounce off of the red background. These gauges feature uniquely designed pointers for the V8 line, which is chrome plated and balanced for precision accuracy. Additional details within these instruments are laser-etched markings on the light diffuser ring, which adds a level of dimension and functionality. The etching corresponds with indices on the face and flows into a polished stainless high-step bezel that's crimped around an optic-grade curved lens to complete each of the gauges' overall design.Brand: Classic Instruments
Manufacturer's Part Number: V8RS181SHC
Part Type: Gauges
Product Line: Classic Instruments V8 Red Steelie Series Gauges
HP Direct Part Number: CIN-V8RS181SHC
UPC: 00090127769997
Gauge Type: Oil pressure
OEM Replacement: No
Gauge Style: Analog
Sending Unit: Electrical
Gauge Diameter (in.): 2 1/8 in.
Gauge Diameter (mm): 54mm
Gauge Range: 0-100 psi
Gauge Shape: Round
Sweep: Full sweep
Gauge Face Color: Red
Gauge Number Color: Silver
Pointer Color: Silver
Bezel Color: Stainless steel
Illuminated: Yes
Memory Recall: No
Playback: No
Liquid-Filled: No
Shift Light Included: No
Tripometer: No
Sending Unit Included: Yes
Sending Unit Thread Size: 1/8 in. NPT
Remanufactured: No
Quantity: Sold individually.
Notes: Features include pressure transducer, LED lighting, analog 0.5-4.5V DC output for data logging, push-button calibration, and rugged air core movement combined with microprocessor technology. Gauge has integrated red warning light, illuminates entire gauge red when activated. Installation hardware and wiring harness included.
