Classic Instruments Fuel Link Interface Modules SN34

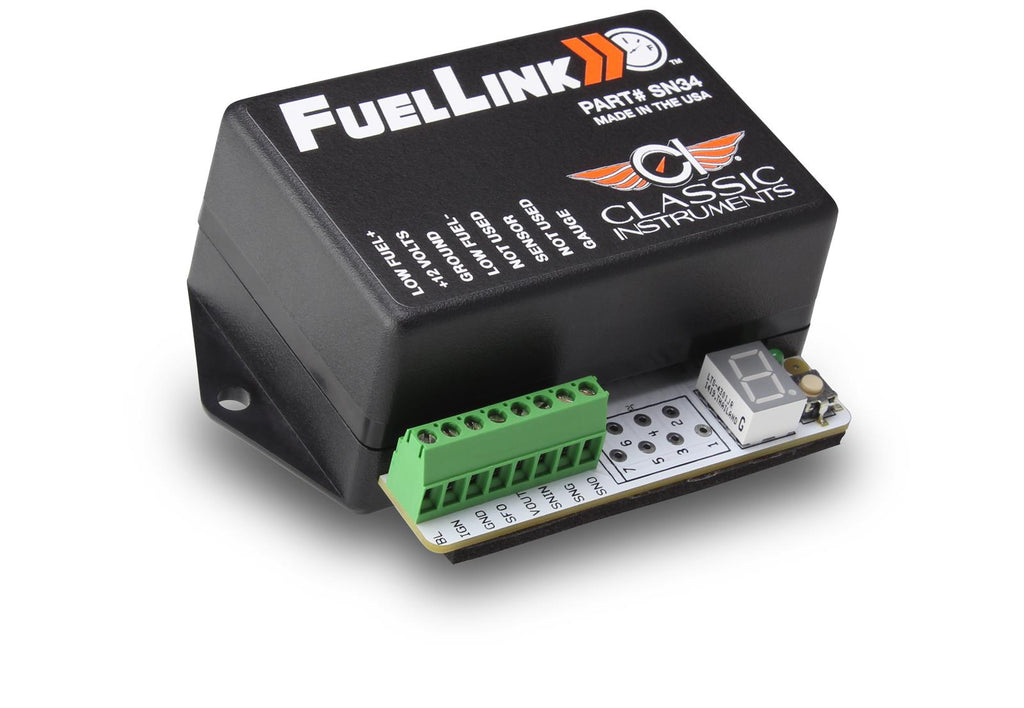

Classic Instruments Fuel Link interface modules will resolve the differences between your fuel senders and your gauges. Compact in size, these units will work hard to efficiently correct ohm mismatch and erratic movement due to fuel slosh, and thereby making sure the ohm and fuel tank readings you see are accurate. Fuel Link is easily installed under your dash, and can be custom calibrated at a special range between 0-350 ohms.

Fuel Link features:

* Interface is 3 in. x 2 in. x 1.5 in. size with mounting holes
* Calibrated at every 1/4 tank reading to ensure accuracy
* Compatible with almost any short sweep fuel gauge and fuel sender combo
* Easy screw terminal wire connections
* On-board push button with LED readout for calibration
* Low fuel light trigger at 1/8 tank--works with LED or incandescent bulb
* Eight compatible preset fuel sender ohm ranges
Brand: Classic Instruments
Manufacturer's Part Number: SN34
Part Type: Gauge Sending Units
Product Line: Classic Instruments Fuel Link Interface Modules
HP Direct Part Number: CIN-SN34
UPC: 00090127146651
Gauge Type: Fuel level
Sending Unit: Electrical
Thread Adapter Fittings Included: No
Quantity: Sold individually.
