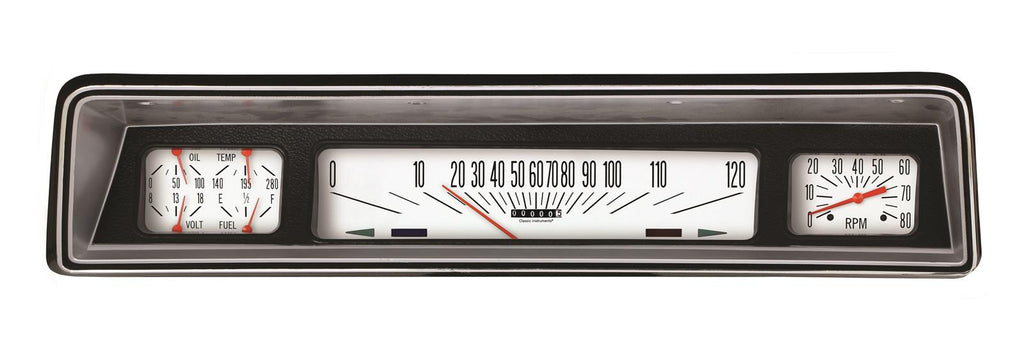

Classic Instruments 1966-67 Nova Package Gauge Sets NO66W

Classic Instruments 1966-67 Nova Package gauge sets feature a speedometer, tachometer, fuel level, temperature, oil pressure, and volt gauges—along with indicator lights. All the gauges are electronic operation and the molded plastic housings are designed with factory fitment in mind. These replacements mount in the original factory bezel and use the original diffuser plate, both of which will need to be re-used from your stock cluster. Order the color scheme you prefer.

Additional features:

* A programmable fuel gauge for any ohm range with a selector switch on the back of the cluster; the fuel gauge will work with the stock sending unit (0-90 ohm), any other factory sending units, or any Classic Instruments fuel sending unit
* A new laser-cut plastic lens is provided with the cluster
* Wiring is handled with a single wire harness connection on the back
* A separate connection and harness for an external shift light on the back
* The wire harness includes a separate power (12 V) and ground lead for flexibility to add things, such as a check engine, emergency brake, open door, or low oil pressure indicator
* Built-in ECM signal filter switch
* Green LED turn signal indicators, red warning light, and a blue high-beam indicator
* Speedometer calibration is quick and easy with push-button control
* Classic Instruments Zeus Speedometer Technology is built-in, meaning the cluster requires no external control boxes and will work directly with ECM or VSS signals
Brand: Classic Instruments
Manufacturer's Part Number: NO66W
Part Type: Gauge Kits and Instrument Clusters
Product Line: Classic Instruments 1966-67 Nova Package Gauge Sets
HP Direct Part Number: CIN-NO66W
UPC: 00090127818404
Gauge Style: Analog
Gauge Face Color: White
Gauge Number Color: Black
Tachometer Included: Yes
Speedometer Included: Yes
Oil Pressure Gauge Included: Yes
Water Temperature Gauge Included: Yes
Voltage Gauge Included: Yes
Fuel Level Gauge Included: Yes
Clock Included: No
Boost Gauge Included: No
Pyrometer Included: No
Transmission Temperature Gauge Included: No
Oil Temperature Gauge Included: No
Water Pressure Gauge Included: No
Ammeter Gauge Included: No
Fuel Pressure Gauge Included: No
Brake Bias Gauge Included: No
Trim Gauge Included: No
Hour Meter Included: No
Pointer Color: Black
Illuminated: Yes
Warning Lights Included: No
Gauge Panel Included: Yes
Gauge Panel Material: Plastic
Gauge Pod Included: No
Gauge Panel Color: Silver
Gauge Type Note: See application page for specific gauge and sending unit information.
Remanufactured: No
Quantity: Sold as a kit.
Notes: Includes programmable fuel level gauge.
