Classic Instruments 1961-66 Ford E-Series Hot Rod Gauge Sets FV61HR54

Classic Instruments 1961-66 Ford E-Series Hot Rod gauge sets are direct-fit packages that will add "the finishing touch" to your classic restoration. The sets are offered with a standard 4 5/8 in. speedometer or a Speedtachular, speedometer/tachometer combination gauge. Handcrafting gauges in America since 1977, Classic designs these clusters with shiny Hot Rod gauges that deliver a timeless white-on-black look and modern precision performance. Each package is equipped with Classic's ZST and built-in ECM signal filter switch, meaning it works directly with ECM or VSS signals, so there is no need for an additional control box.

Additional features and benefits:

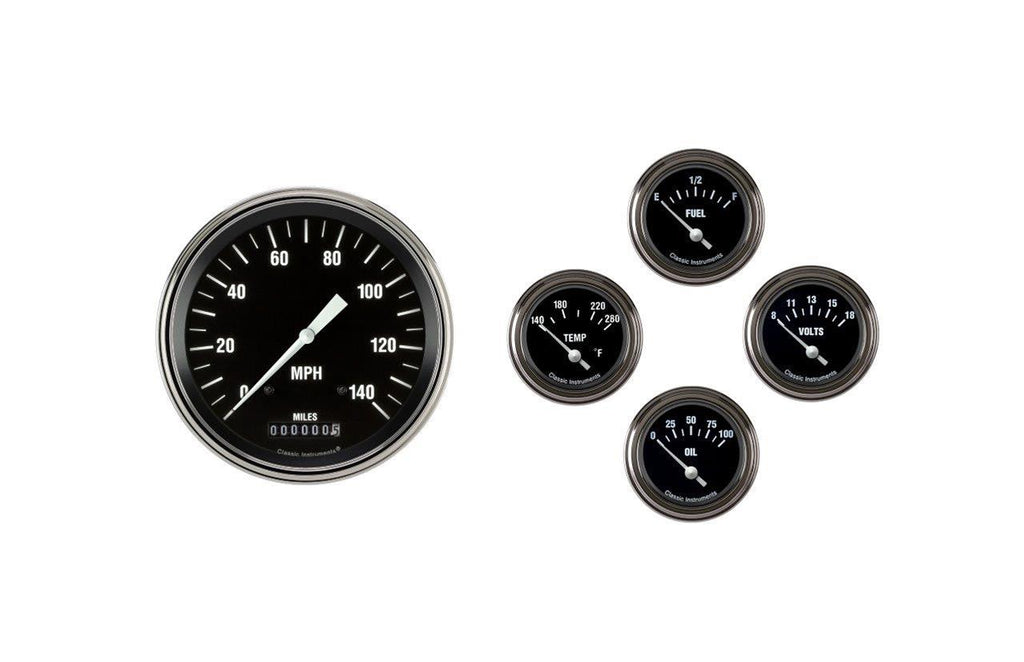

* 2 1/8 in. fuel (75-10 ohm), oil, temperature, and volt short-sweep gauges
* All necessary sending units, mounting bracket and hardware, and a speedometer wiring harness is included
* Speedometer harness is constructed of automotive grade TXL wire, machine-crimped terminals, tech-flex sleeving, and Molex main connectors
* A standard stud connection is used for the fuel, oil, temperature, and volt gauges
* Gauge lighting is standard incandescent with the option to upgrade to LED lighting
* Green turn signals are mounted in the housing, and a red high beam indicator is built into the speedometer via Classic's Halo lighting

Please note:

* Fuel sending unit not included as the fuel gauge is calibrated to stock 75-10 ohm
* Factory bezel not included
Brand: Classic Instruments
Manufacturer's Part Number: FV61HR54
Part Type: Gauge Kits and Instrument Clusters
Product Line: Classic Instruments 1961-66 Ford E-Series Hot Rod Gauge Sets
HP Direct Part Number: CIN-FV61HR54
UPC: 00090127813034
Gauge Style: Analog
Gauge Face Color: Black
Gauge Number Color: White
Tachometer Included: No
Speedometer Included: Yes
Oil Pressure Gauge Included: Yes
Water Temperature Gauge Included: Yes
Voltage Gauge Included: Yes
Fuel Level Gauge Included: Yes
Clock Included: No
Boost Gauge Included: No
Pyrometer Included: No
Transmission Temperature Gauge Included: No
Oil Temperature Gauge Included: No
Water Pressure Gauge Included: No
Ammeter Gauge Included: No
Fuel Pressure Gauge Included: No
Brake Bias Gauge Included: No
Trim Gauge Included: No
Hour Meter Included: No
Pointer Color: White
Bezel Color: Polished
Illuminated: Yes
Warning Lights Included: No
Gauge Panel Included: No
Gauge Pod Included: No
Gauge Type Note: See application page for specific gauge and sending unit information.
Remanufactured: No
Quantity: Sold as a set of 5.
