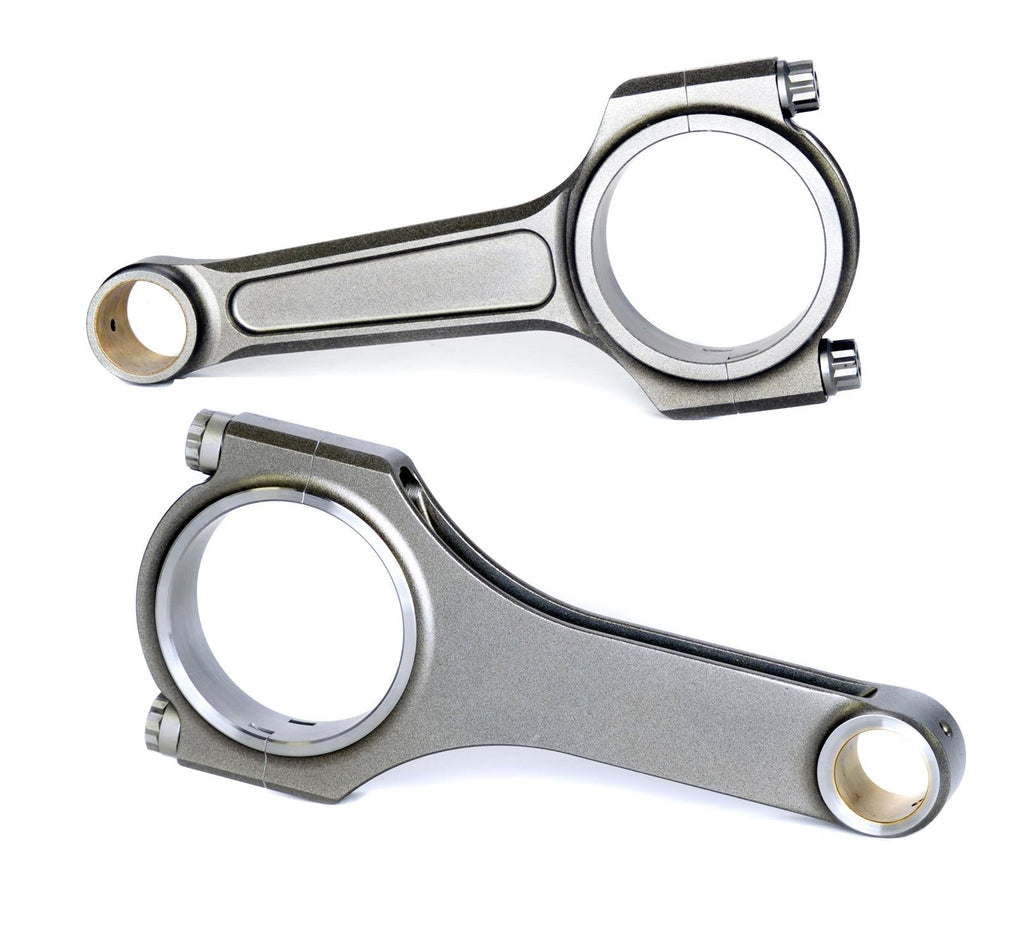

Carrillo Pro-SA Connecting Rods F-DT20

Save 0%

CP-CarrilloSKU: CNN-T20SA65758H4

No reviews

Carrillo Pro-SA connecting rods cover the middle ground between their Pro-H and Pro-A rods. Super A-beams have an increased beam thickness to handle higher load capacities than the regular A-beam rods and are built to the same stringent tolerances as the Pro-H rods. Crafted from robust steel that's forged, heat-treated, shot-peened, and inspected through the entire manufacturing process, these rods are highly effective. Select materials, high-tech design, and rigorous testing make Carrillo Pro-SA connecting rods proven winners and your connection to victory lane.Brand: CP-Carrillo
Manufacturer's Part Number: F-DT20Part Type: Connecting Rods
Product Line: Carrillo Pro-SA Connecting Rods
HP Direct Part Number: CNN-T20SA65758H4
Connecting Rod Length Center to Center (in.): 5.758 in.
Connecting Rod Beam Style: A-beam
Connecting Rod Material: Steel
Wrist Pin Style: Floating
Pin End Bore Diameter: 21.000mm
Big End Bore Diameter (in.): 1.9699
Quantity: Sold as a set of 4.
Cap Retention Style: Cap screw
Big End Width (in.): 0.859
Clearanced for Stroker: No
Connecting Rod Bolt Brand: WMC
Connecting Rod Bolt Diameter: 3/8 in.
Connecting Rod Bolt Material: H-11 tool steel
Connecting Rod Bolt Head Style: 12-point
Approximate Connecting Rod Weight (g): 500
Pin End Width (in.): 0.710 in.
Weight Matched Set: Yes
Remanufactured: No
Magnafluxed: No
Connecting Rod Color: Shot-peened
