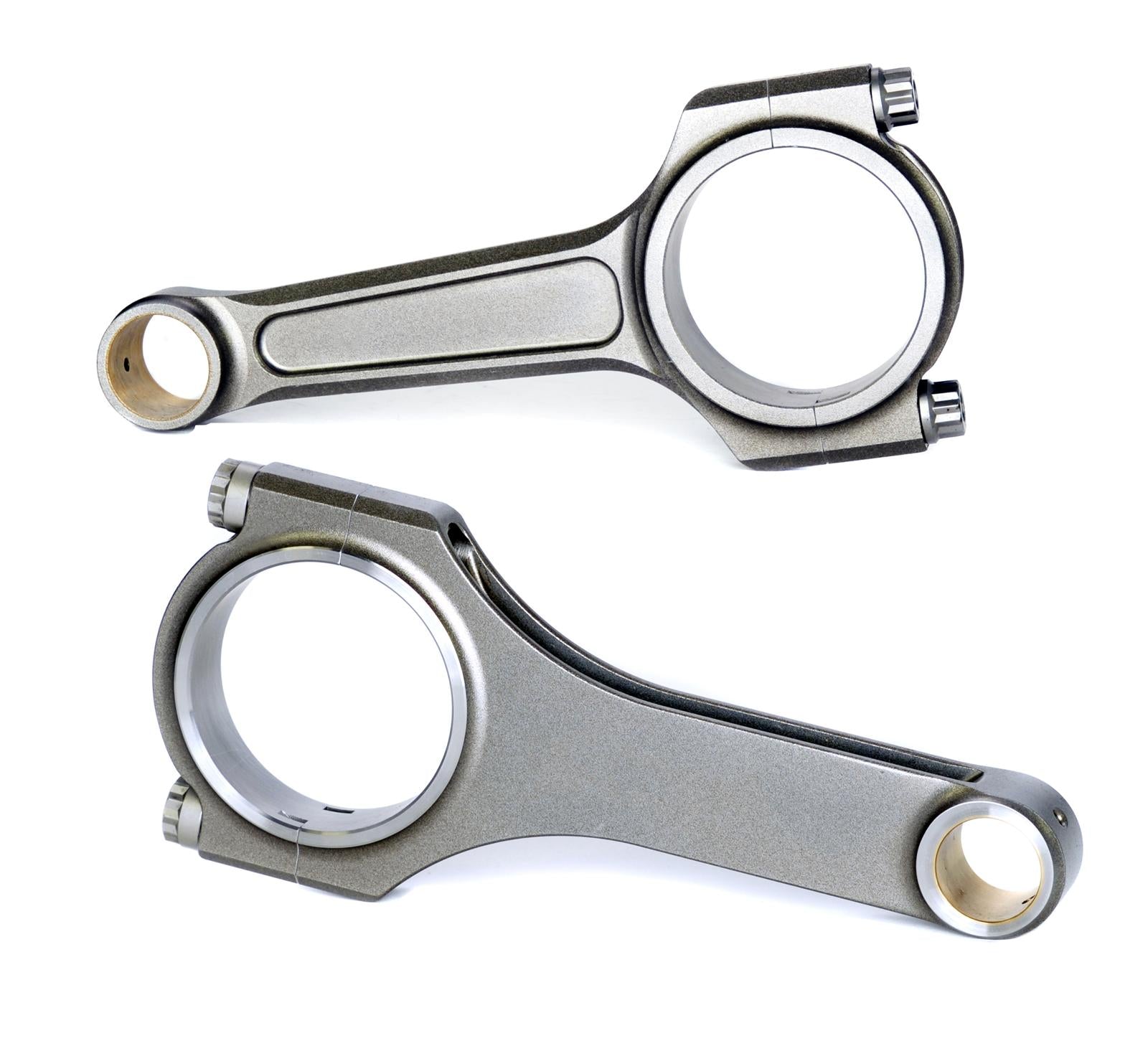

Carrillo Pro-H Tapered H-Beam Connecting Rods CS-1798-1<-66000H

Choose the right connections--Carrillo Pro-H connecting rods. Able to handle extreme engine loads, their tapered H-beams allow for some weight savings on the reciprocation end and give increased clearance for fully boxed pistons. Obsessed with perfection, Carrillo produces their Pro-H connecting rods in small batches. They mesh quality materials, precision forging, excellent craftsmanship, and high-tech designs to deliver a flawless performance for your race engine. Applications are available for many venues of motorsports. Add the high performance "choice connection" to your race machine--Carrillo Pro-H tapered H-beam connecting rods.Brand: CP-Carrillo
Manufacturer's Part Number: CS-1798-1<-66000H
Part Type: Connecting Rods
Product Line: Carrillo Pro-H Tapered H-Beam Connecting Rods
HP Direct Part Number: CNN-1798166000H0
Connecting Rod Length Center to Center (in.): 6.000 in.
Connecting Rod Beam Style: H-beam
Connecting Rod Material: Steel
Wrist Pin Style: Floating
Pin End Bore Diameter: 0.866 in.
Big End Bore Diameter (in.): 1.9758
Quantity: Sold individually.
Cap Retention Style: Cap screw
Big End Width (in.): 0.940
Clearanced for Stroker: No
Connecting Rod Bolt Brand: WMC
Connecting Rod Bolt Diameter: 3/8 in.
Connecting Rod Bolt Material: H-11 tool steel
Connecting Rod Bolt Head Style: 12-point
Approximate Connecting Rod Weight (g): 527
Pin End Width (in.): 0.870 in.
Weight Matched Set: No
Remanufactured: No
Magnafluxed: No
Connecting Rod Color: Shot-peened
Notes: Custom pistons are required when using connecting rods with any length other than OE length.
