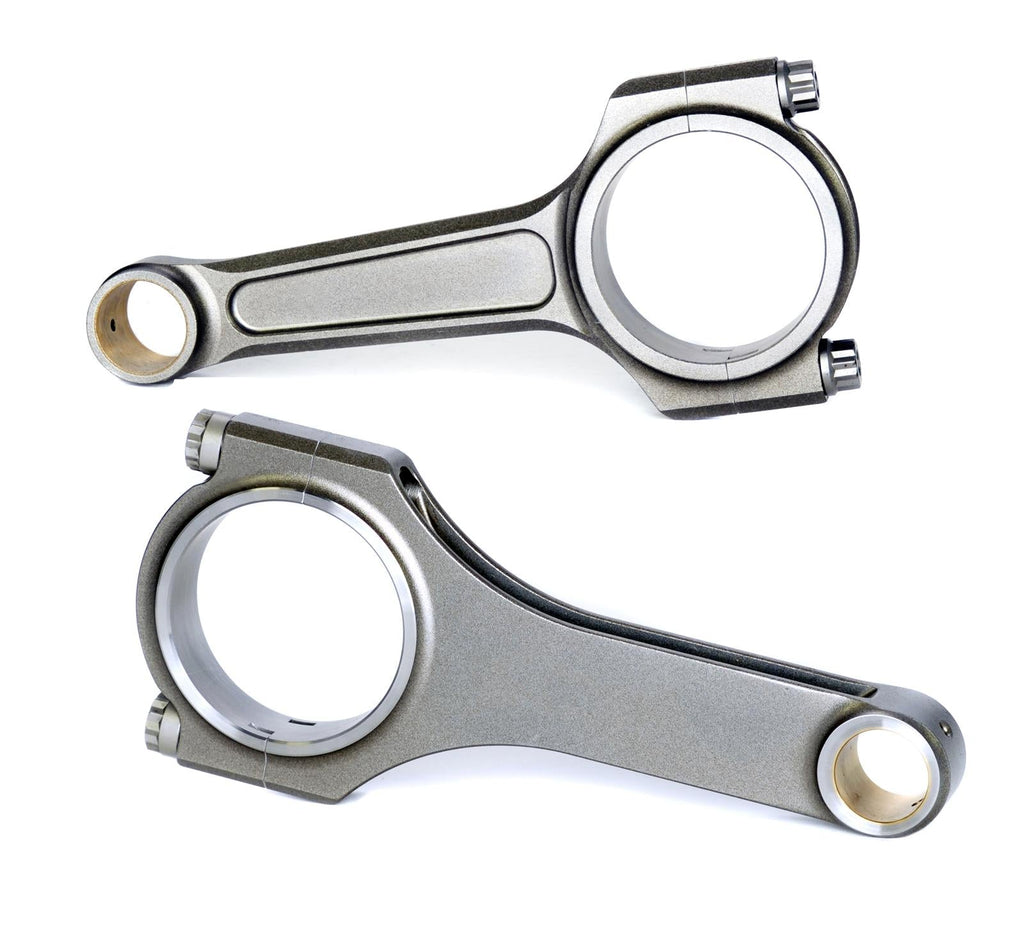

Carrillo Pro-H Straight H-Beam Connecting Rods BM-MINS>-55177S

Lead the way with strong Carrillo Pro-H connecting rods. Able to handle the most abusive forces of your race engine, these straight H-beams are the stoutest configurations available. Obsessed with perfection, Carrillo produces their Pro-H connecting rods in small batches. They mesh quality materials, precision forging, excellent craftsmanship, and high-tech designs to deliver a flawless performance for your race engine. Applications are available for many venues of motorsports. Drive your racer to the winner's circle with the high performance "choice connection"--Carrillo Pro-H straight H-beam connecting rods.Brand: CP-Carrillo
Manufacturer's Part Number: BM-MINS>-55177S
Part Type: Connecting Rods
Product Line: Carrillo Pro-H Straight H-Beam Connecting Rods
HP Direct Part Number: CNN-BMINS55177S0
Connecting Rod Length Center to Center (in.): 5.177 in.
Connecting Rod Beam Style: H-beam
Connecting Rod Material: Steel
Wrist Pin Style: Floating
Pin End Bore Diameter: 21.000mm
Big End Bore Diameter (in.): 1.9292
Quantity: Sold individually.
Cap Retention Style: Cap screw
Big End Width (in.): 0.914
Clearanced for Stroker: No
Connecting Rod Bolt Brand: CARR
Connecting Rod Bolt Diameter: 5/16 in.
Connecting Rod Bolt Material: H-11 tool steel
Connecting Rod Bolt Head Style: 12-point
Approximate Connecting Rod Weight (g): 443
Pin End Width (in.): 0.830 in.
Weight Matched Set: No
Remanufactured: No
Magnafluxed: No
Connecting Rod Color: Shot-peened
Notes: Tritec Mini Cooper and Mini Cooper S models only.
