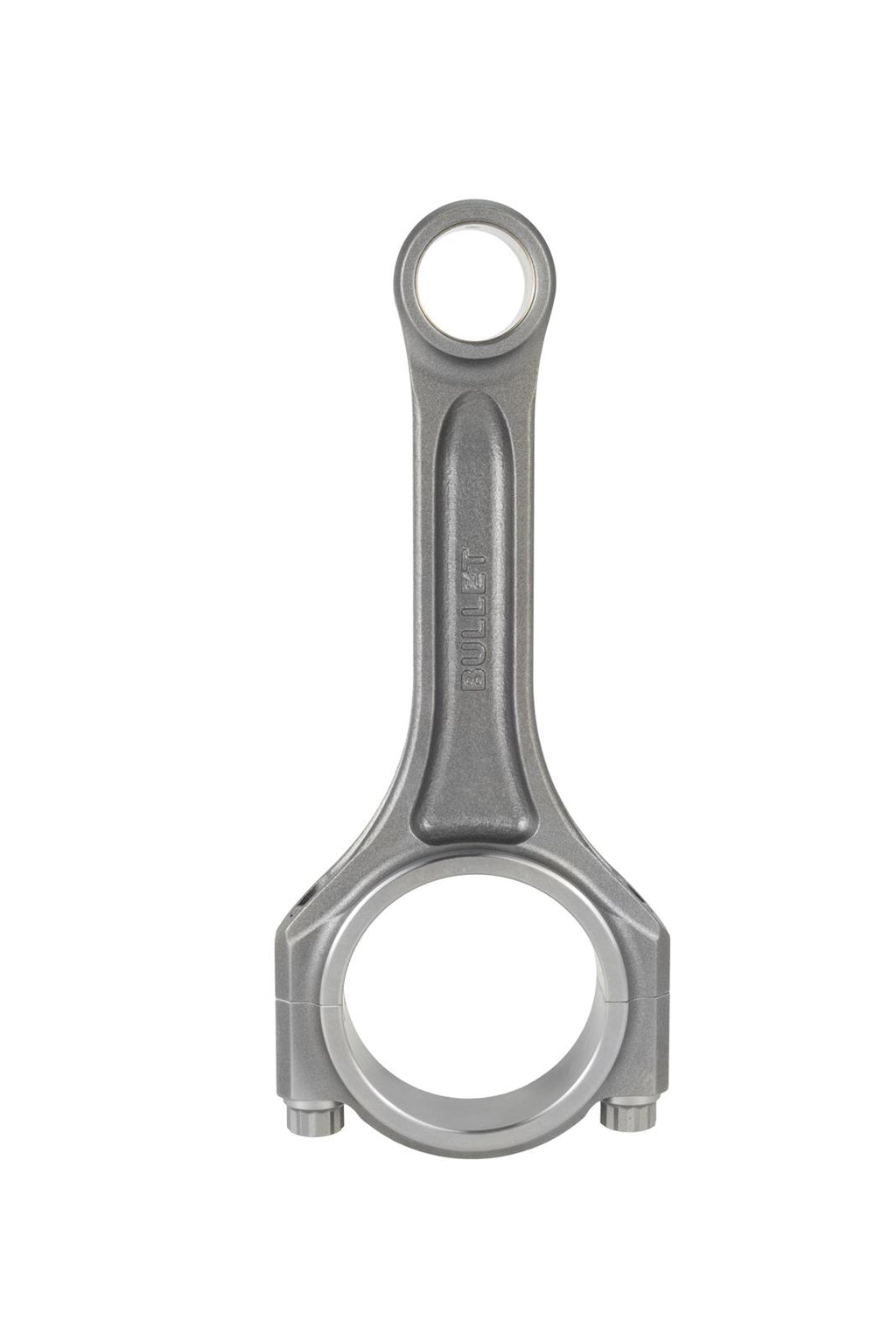

Carrillo Bullet Series Connecting Rods BC22-6535

Carrillo Bullet Series connecting rods are a new idea for high performance rods—at a reasonable price. The rods are manufactured from 4330 modified forgings and balanced to + or - 1 gram. Bullet rods come standard with WMC H-11 tool steel fasteners. Now you can have low cost and Carrillo quality with their innovative Bullet Series. Order the connecting rods designed for fitment with your vehicle make and engine application.
Brand: CP-Carrillo
Manufacturer's Part Number: BC22-6535
Part Type: Connecting Rods
Product Line: Carrillo Bullet Series Connecting Rods
HP Direct Part Number: CNN-BC22-6535
Connecting Rod Length Center to Center (in.): 6.535 in.
Connecting Rod Beam Style: I-beam
Connecting Rod Material: Forged 4330 steel
Wrist Pin Style: Floating
Pin End Bore Diameter: 0.990 in.
Rod Journal Diameter (in.): 2.200
Big End Bore Diameter (in.): 2.3250
Quantity: Sold individually.
Cap Retention Style: Cap screw
Big End Width (in.): 0.990
Clearanced for Stroker: No
Connecting Rod Bolt Brand: WMC
Connecting Rod Bolt Diameter: 7/16 in.
Connecting Rod Bolt Material: H-11 tool steel
Connecting Rod Bolt Head Style: 12-point
Approximate Connecting Rod Weight (g): 799
Advertised Horsepower Rating: 1,000 hp
Advertised RPM Rating: 7,600 rpm
Pin End Width (in.): 1.125 in.
Weight Matched Set: Yes
Remanufactured: No
Magnafluxed: No
Connecting Rod Color: Natural
