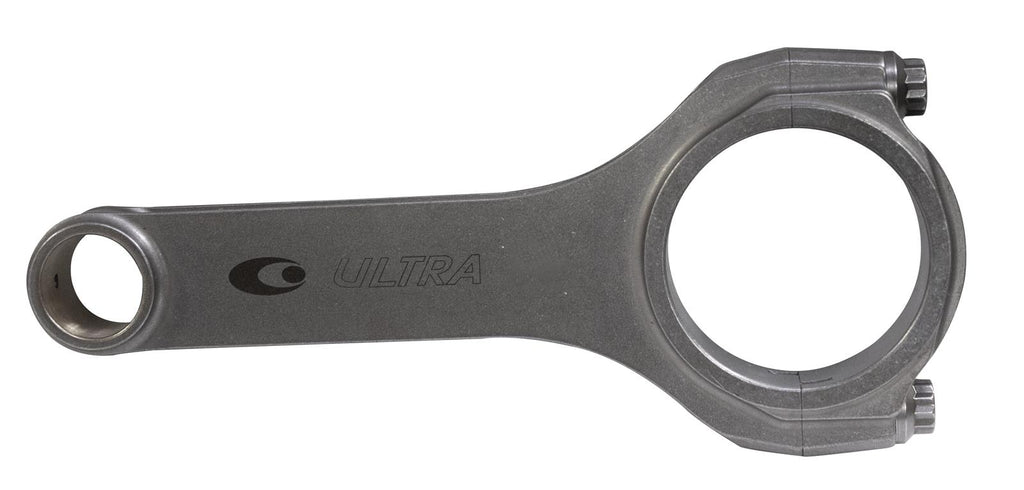

Callies Ultra XD-Enforcer Connecting Rods U18214

Callies Ultra XD-Enforcer connecting rods combine the track-tested and proven Ultra XD concept for additional cam clearance with the fortified tower flanges of the Ultra Enforcer I-beam rod. The result is robust components fit for service the highest power, highest performing engines. Forged from premium 4330 Vanadium-enhanced steel, Ultra XD-Enforcer rods feature tough AMPCO 45-pin bushings intended for heavy-load applications. Stronger and longer, push the limits of your race engine with a set of Callies Ultra XD-Enforcer connecting rods installed.Brand: Callies Performance
Manufacturer's Part Number: U18214
Part Type: Connecting Rods
Product Line: Callies Ultra XD-Enforcer Connecting Rods
HP Direct Part Number: CPI-U18214
Connecting Rod Length Center to Center (in.): 6.700 in.
Connecting Rod Beam Style: I-beam
Connecting Rod Material: Forged 4330 steel
Wrist Pin Style: Floating
Pin End Bore Diameter: 0.990 in.
Rod Journal Diameter (in.): 2.200
Big End Bore Diameter (in.): 2.3250
Quantity: Sold as a set of 8.
Cap Retention Style: Cap screw
Big End Width (in.): 0.990
Clearanced for Stroker: Yes
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 7/16 in.
Connecting Rod Bolt Material: ARP L19 alloy
Fastener Tensile Strength (psi): 230,000 psi
Connecting Rod Bolt Head Style: 12-point
Approximate Connecting Rod Weight (g): 884
Advertised Horsepower Rating: 2,400 hp
Pin End Width (in.): 1.055 in.
Weight Matched Set: Yes
Remanufactured: No
Magnafluxed: Yes
Connecting Rod Color: Shot-peened
Notes: Custom pistons required when using longer than stock connecting rods.
