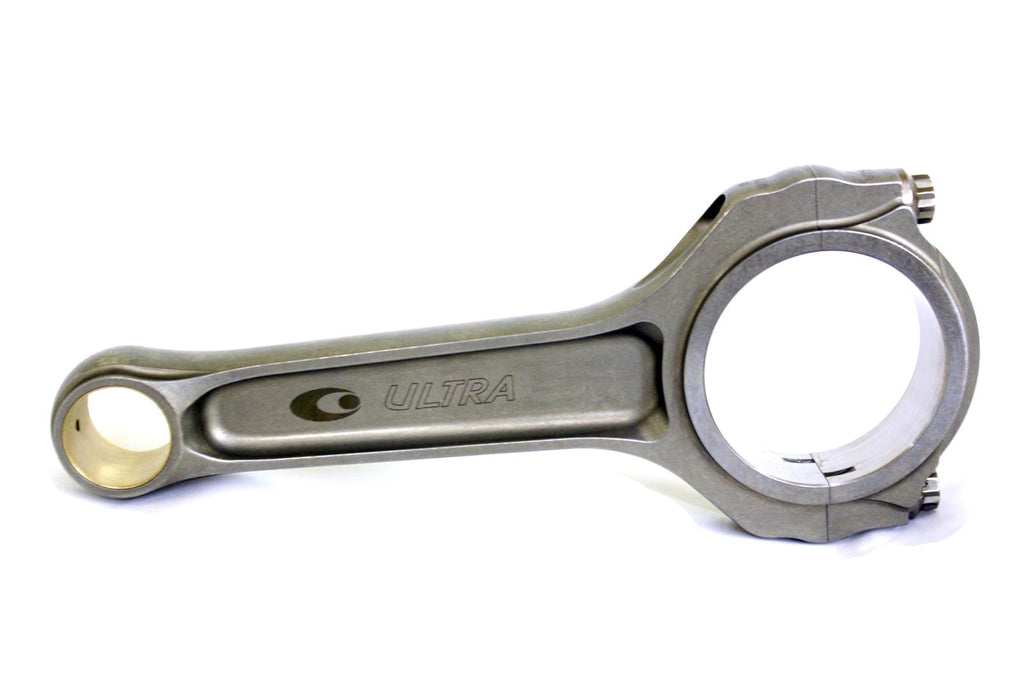

Callies Ultra Connecting Rods U17171-UW

Callies Ultra connecting rods are made with pride to exacting specifications. They are produced from extremely clean Timken steel, meticulously crafted with great attention to detail. If you choose Callies Ultra connecting rods, be confident of dependable performance and outstanding workmanship.Brand: Callies Performance
Manufacturer's Part Number: U17171-UW
Part Type: Connecting Rods
Product Line: Callies Ultra Connecting Rods
HP Direct Part Number: CPI-U17171-1
Connecting Rod Length Center to Center (in.): 6.125 in.
Connecting Rod Beam Style: I-beam
Connecting Rod Material: Forged 4330 steel
Wrist Pin Style: Floating
Pin End Bore Diameter: 0.927 in.
Rod Journal Diameter (in.): 2.100
Big End Bore Diameter (in.): 2.2250
Quantity: Sold individually.
Cap Retention Style: Cap screw
Big End Width (in.): 0.940
Clearanced for Stroker: No
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 7/16 in.
Connecting Rod Bolt Material: L19 alloy
Fastener Tensile Strength (psi): 230,000 psi
Connecting Rod Bolt Head Style: 12-point
Approximate Connecting Rod Weight (g): 662
Advertised Horsepower Rating: 1,500 hp
Pin End Width (in.): 0.988 in.
Weight Matched Set: Yes
Remanufactured: No
Magnafluxed: Yes
Connecting Rod Color: Shot-peened
Notes: Custom pistons required when using longer than stock connecting rods.
