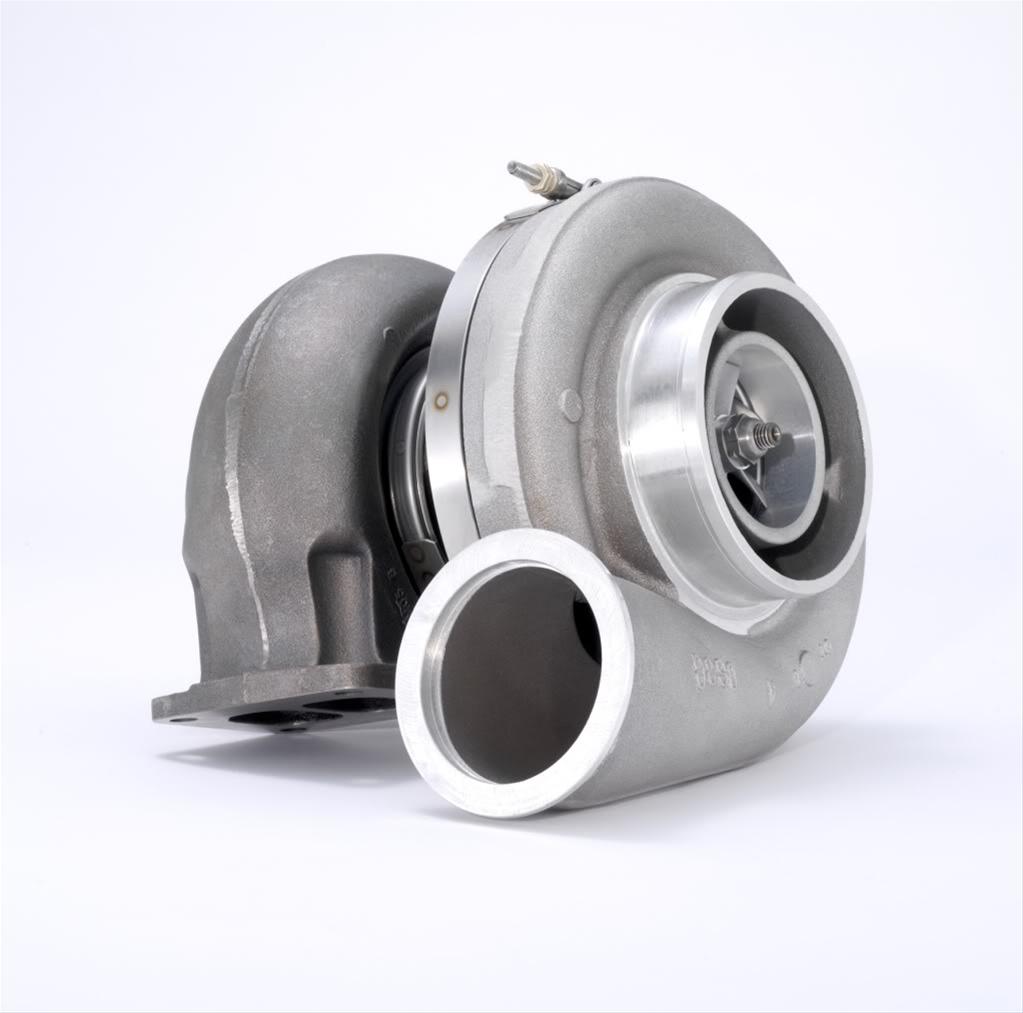

BorgWarner AirWerks Series Turbochargers 176806

The passion of power. BorgWarner AirWerks Series turbochargers provide durable, scalable, strong boost for enthusiasts who want a more powerful replacement or customizable turbocharger. Focused on creating exceptionally high engine performance through forced induction technology, they offer faster spool-up at lower engine speeds and powerful boost for top-end performance. The AirWerks Series includes a range of units supporting 120 to 1,875 hp per turbocharger.

Depending on unit selected, features may include:

* Innovative extended-tip technology delivers the increased airflow of a larger compressor wheel with the lower mass of a smaller, low-inertia wheel
* Next generation Forged Milled Compressor Wheels (FMW Technology)
* 360 thrust bearings for increased reliability at higher turbo pressure ratios
* Serviceable twin hydrodynamic journal bearings

Brand: BorgWarner Turbo Systems
Manufacturer's Part Number: 176806
Part Type: Turbochargers
Product Line: BorgWarner AirWerks Series Turbochargers
HP Direct Part Number: BWW-176806
Turbine Housing Inlet Flange: T6
Turbine Housing Outlet Flange: V-band
Turbocharger Style: SX400
Wastegate Location: External
Compressor Wheel Inducer Size: 75.00mm
Turbine Wheel Exducer Size: 83.00mm
Compressor Wheel Trim: 55.68
Turbine Wheel Trim: 79.30
Turbine Housing A/R Ratio: 1.10
Turbocharger Bearing Style: Non-ball bearing
Compressor Wheel Construction: Cast aluminum
Turbocharger Cooling: Oil
Compressor Housing Included: Yes
Compressor Housing Material: Aluminum
Compressor Housing Color: Natural
Turbine Housing Included: Yes
Turbine Housing Material: Cast iron
Turbine Housing Finish: Natural
Compressor Outlet Style: V-band
Ported Compressor Housing: No
Wastegate Actuator Included: No
Exhaust Adapter Included: No
Intake Adapter Included: No
Oil Adapters Included: No
Remanufactured: No
Quantity: Sold individually.
