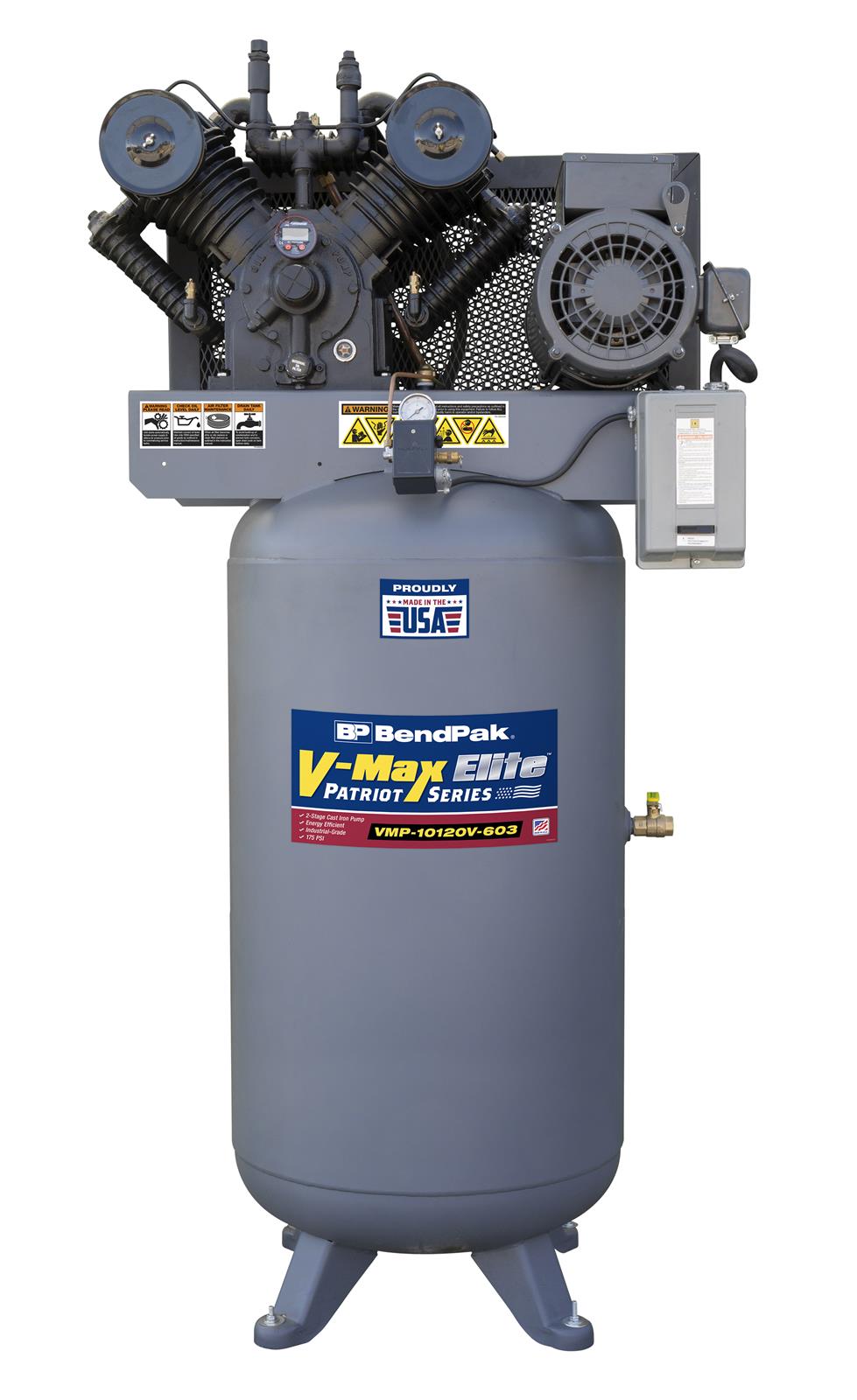

BendPak V-Max Elite Air Compressors 5179114

Unlock your shop's full potential with BendPak V-Max Elite air compressors. The extreme-duty 4-cylinder pumps are engineered to operate at maximum efficiency under all load conditions. The compressors have rugged 2-stage, 100 percent cast iron pumps that feature splash lubrication and a V-4 finned cylinder configuration. These enhancements result in total reliability and 360 degree cooling. Heavy-duty, disc-type valves are dependable and accessible without even having to remove the cylinder head or other needlessly complicated valve maintenance procedures. A built-in intercooler and air-cooled aftercooler chill the air, reducing both heat and moisture from condensation. The compressors run quiet due to significantly slower pump rpm speeds and energy-efficient pumps.

Additional features of BendPak V-Max Elite air compressors:

* Cast iron pump and heads
* Dual belt drive for less load on bearings
* Fully enclosed belt guard
* ASME-rated tank
* Large surface cooling fins
* Oversized ductile iron crankshaft
* Tapered roller main bearings
* Precision-balanced flywheel
* Magnetic starter
* Cast iron oil reservoir with large oil drain and sight-gauge glass
Brand: BendPak
Manufacturer's Part Number: 5179114
Part Type: Air Compressors, General Use
Product Line: BendPak V-Max Elite Air Compressors
HP Direct Part Number: BPI-5179114
Compressor Type: Stationary, vertical
Tank Included: Yes
Tank Capacity: 120 gallon
Compressor Power Source: 208/230 V AC
Compressor Pump Style: Two stage
Compressor Pump Lubrication: Oiled
Compressor Motor Horsepower: 10 hp
Compressor Amps: 24.0 amps
Maximum Pressure (psi): 175 psi
CFM: 32.50 @ 175 psi
Compressor Height: 90.00 in.
Compressor Width: 51.00 in.
Compressor Length: 51.00 in.
Compressor Weight: 1,000.00 lbs.
Compressor dBA: 78 at 3 ft.
Tank Outlet Size: 1.000 in.
Air Lines Included: No
Pressure Gauge Included: Yes
Case Included: No
Mounting Brackets Included: No
Quantity: Sold individually.
