Description

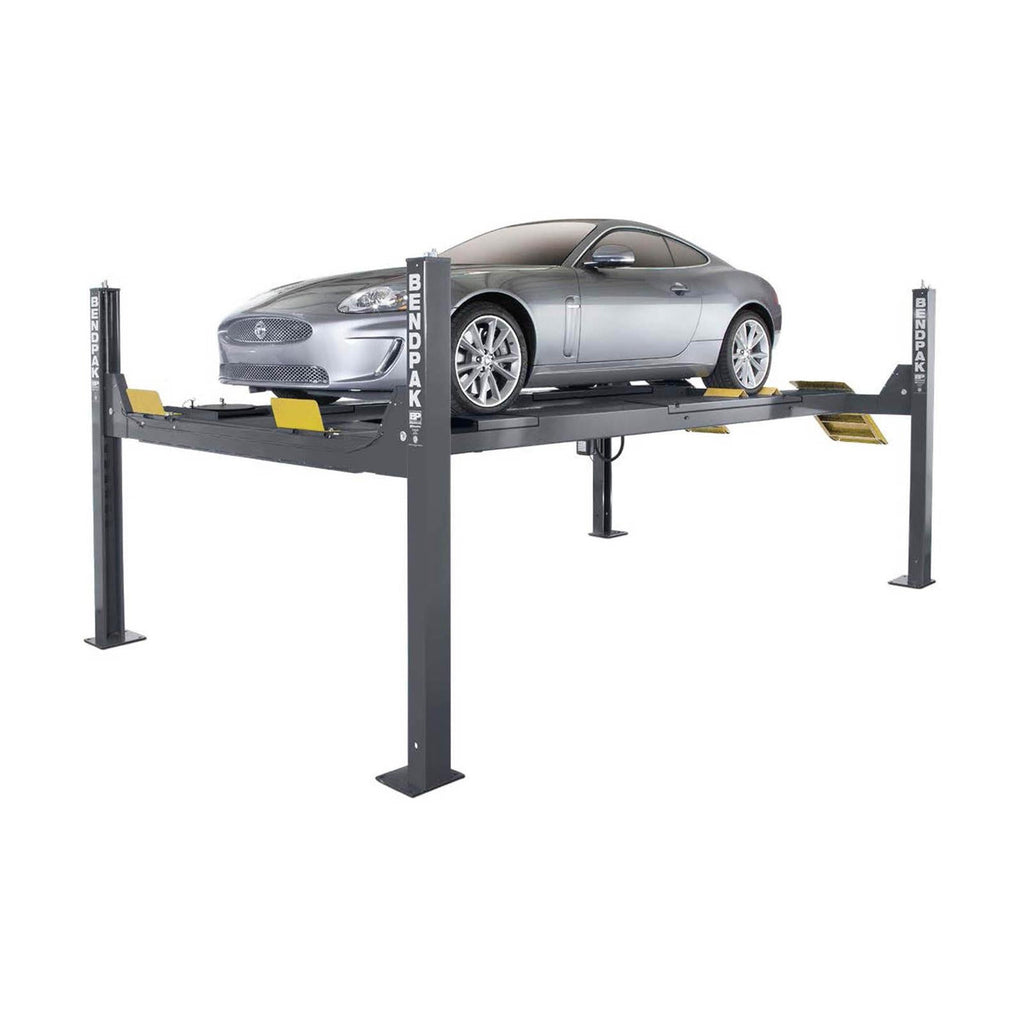

The BendPak HDS-14LSX alignment extended lifts are designed and engineered to meet the strenuous demands of even your toughest professional lifting jobs. They feature-aircraft quality stainless steel and aluminum pneumatic cylinders that release all four locks simultaneously with the simple push of a button. BendPak manufactures these lifts from high-quality materials resulting in years of trouble free performance. Trust in BendPak for all of your lifting needs.
Additional features include the following:
* 14,000 lb. capacity
* Heavy-duty turn plates and integrated rear slip plates
* Multi-position turn plate pockets
* Automatic leveling system
* Multiple auto-leveling locking positions
* Runways include rail kit for optional accessories
* Electric/hydraulic power system
* Single hydraulic cylinder mounted underneath runway
* Fully enclosed lifting cables, safety locks, and sheaves
* Internal anti-sway slider blocks in each column
* Oversize sheaves and heavy-duty 1/2 in. diameter aircraft cable
* Rugged 1 3/8 in. roller axles and oversize self-lubricating cable sheaves
* Runways adjust for different tread widths and feature non-skid surfaceBrand: BendPak
Manufacturer's Part Number: 5175171
Part Type: Vehicle Lifts
Product Line: BendPak HDS-14LSX Alignment Extended Lifts
HP Direct Part Number: BPI-5175171
Maximum Lift Height (in.): 77.63 in.
Weight Capacity (lbs.): 14,000
Overall Length (in.): 241.00 in.
Overall Width (in.): 130.00 in.
Overall Height (in.): 95.00 in.
Runway Length (in.): 199.00 in.
Runway Width (in.): 20.00
Power Supply: 220 V
Lift Color: Blue powdercoated
Quantity: Sold individually.
Notes: Model number is HDS14LSX.
Additional features include the following:
* 14,000 lb. capacity
* Heavy-duty turn plates and integrated rear slip plates
* Multi-position turn plate pockets
* Automatic leveling system
* Multiple auto-leveling locking positions
* Runways include rail kit for optional accessories
* Electric/hydraulic power system
* Single hydraulic cylinder mounted underneath runway
* Fully enclosed lifting cables, safety locks, and sheaves
* Internal anti-sway slider blocks in each column
* Oversize sheaves and heavy-duty 1/2 in. diameter aircraft cable
* Rugged 1 3/8 in. roller axles and oversize self-lubricating cable sheaves
* Runways adjust for different tread widths and feature non-skid surfaceBrand: BendPak
Manufacturer's Part Number: 5175171
Part Type: Vehicle Lifts
Product Line: BendPak HDS-14LSX Alignment Extended Lifts
HP Direct Part Number: BPI-5175171
Maximum Lift Height (in.): 77.63 in.
Weight Capacity (lbs.): 14,000
Overall Length (in.): 241.00 in.
Overall Width (in.): 130.00 in.
Overall Height (in.): 95.00 in.
Runway Length (in.): 199.00 in.
Runway Width (in.): 20.00
Power Supply: 220 V
Lift Color: Blue powdercoated
Quantity: Sold individually.
Notes: Model number is HDS14LSX.
