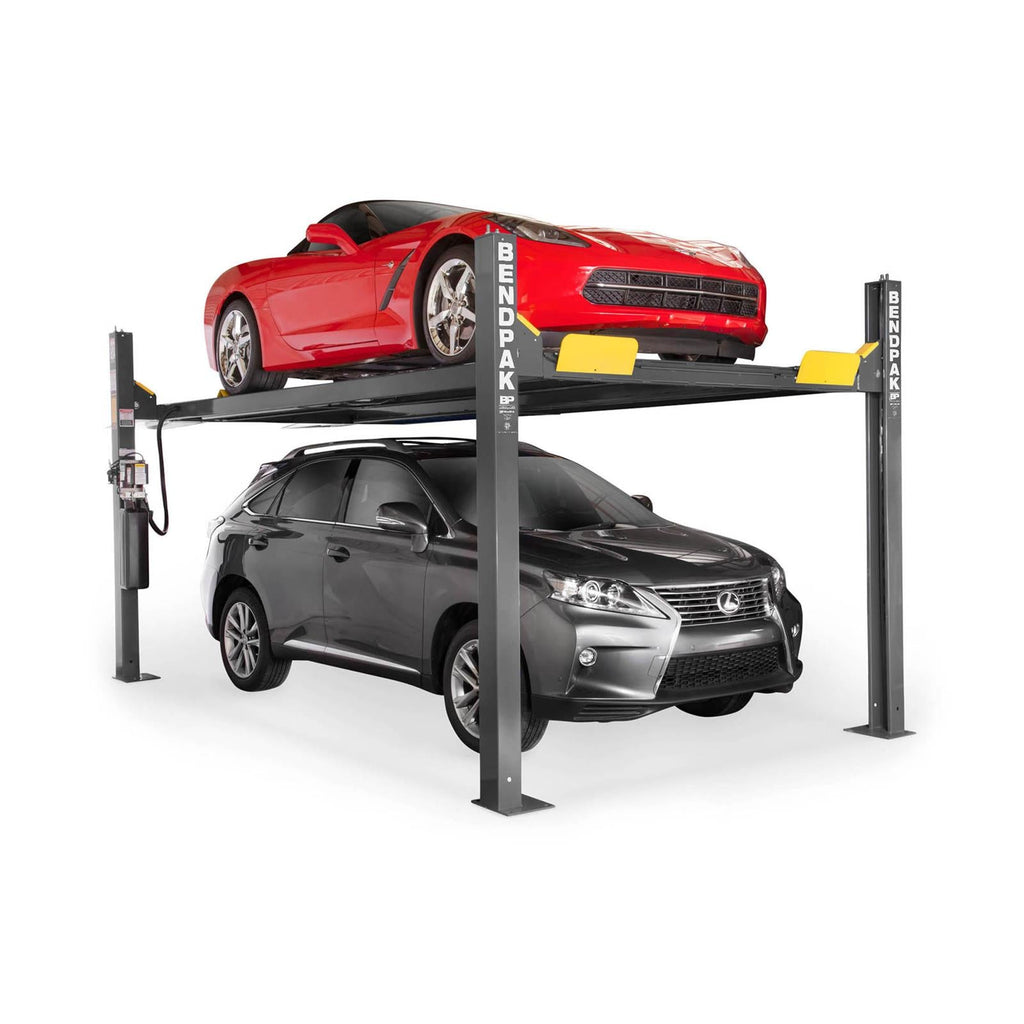

BendPak HD-9XW Standard Width Extra-Tall Lifts 5175863

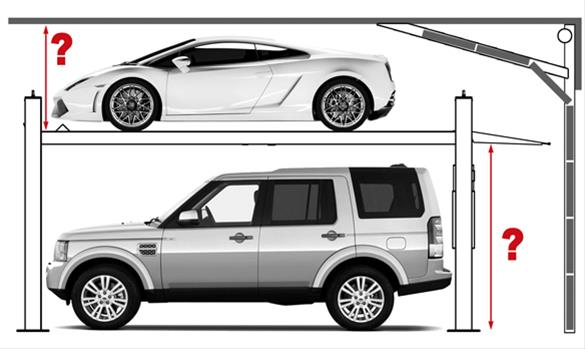

The space saving design of the 9,000 lb. capacity BendPak HD-9XW is ideal for vehicle storage in residential garages or commercial buildings. It also happens to make a great service lift for smaller shops who still want to do a big business. These lifts are about the size of a typical parking space, helping to maximize floor space. The BendPak HD-9XW is great for storing ATVs, snowmobiles, jet skis, golf carts, boats or just about anything else that needs to be off the ground. You can finally make use of that wasted vertical space above your car.

Additional features include the following:

* 9,000 lbs. maximum lifting capacity
* Freestanding design
* Runways accommodate narrow and standard vehicles
* Electric / hydraulic power system
* Single hydraulic cylinder mounted underneath runway
* Fully enclosed lifting cables, safety locks and sheaves
* Internal anti-sway slider blocks in each column
* Oversized self-lubricating cable rollers
* Features heavy-duty 3/8 in. aircraft cable
* Rugged 1 1/4 in. roller axles
* Multi-position safety locks in each column
* Adjustable lock ladders
* Runways feature non-skid surface
* Push-button pneumatic safety release
* Independent backup slack-cable safety latches
* Removable approach ramps for additional drive-under clearance
Brand: BendPak
Manufacturer's Part Number: 5175863
Part Type: Vehicle Lifts
Product Line: BendPak HD-9XW Standard Width Extra-Tall Lifts
HP Direct Part Number: BPI-5175863
Maximum Lift Height (in.): 86.50 in.
Weight Capacity (lbs.): 9,000
Overall Length (in.): 224.00 in.
Overall Width (in.): 110.25 in.
Overall Height (in.): 100.00 in.
Runway Length (in.): 188.00 in.
Runway Width (in.): 19.00
Power Supply: 220 V
Lift Color: Gray powdercoated
Quantity: Sold individually.
Notes: Lift model is HD-9XW. A forklift is highly suggested for unloading at delivery.
