Description

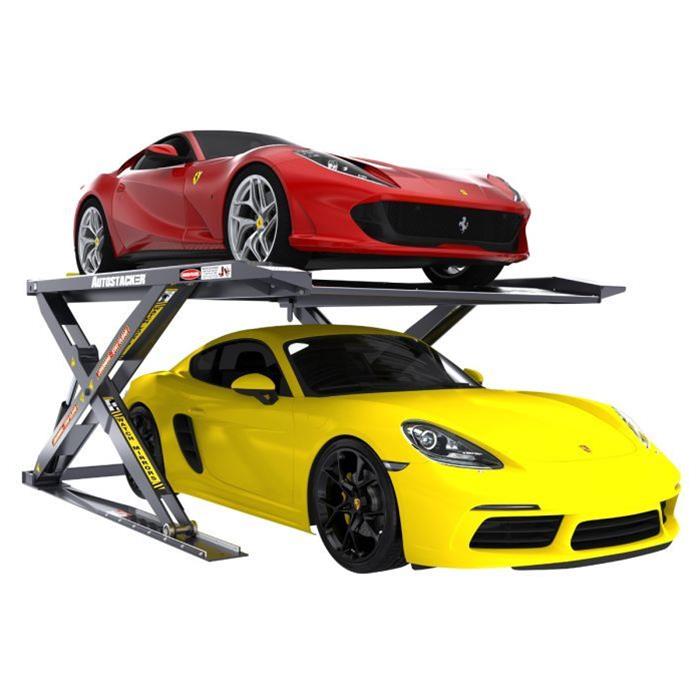

Meet the BendPak Autostacker PL-6SRX, an extra-wide parking lift version of the world's best fully collapsible parking lift. They are the ideal home car lift for tight spaces and garages and also allow homeowners to maintain a clean, modern, and sophisticated look to their garages. Like BendPak's standard-width parking lift model, this extra-wide edition offers a safe, easy way to store two vehicles in a single parking space. Additionally, the PL-6SRX lifts offer a more spacious environment for vehicle loading on the top-level platform. Lower-level vehicles will pull into an equally roomy parking space that is protected by Autostacker's scissor superstructures. Many people who are car collectors are not mechanics, so home parking lifts need to be easy to use. With BendPak's Autostacker PL-6SRX, there are no cables to replace or maintain, and that means zero scheduled maintenance issues, which is a money saver.
Key features and specs:
* 6,000 lb. lifting capacity
* Extra-wide construction for increased door clearance
* Key-switch disconnect fully disables operation for enhanced security
* Audible alarm and warning buzzer alerts operator and bystanders when the lift is in operation
* Accommodates cars, light trucks, and SUVs
* Rugged, welded-steel construction is strong and durable
* 100 percent hot-dipped, galvanized steel platform
* Attractive slate gray, baked-on powder coat finish provides added toughness
* Front wheel dish acts as a wheel chock to prevent vehicles from rolling forward or backward
* Extra-wide, gradual sloping platform reduces entry ramp height
* Automatic safety locks engage at five different parking heights
* Simple push-button controls
* Dual, direct-drive hydraulic lifting cylinders
* Dependable hydraulic circuit that provides precise, equalized lifting
* Variable height parking accommodates a wide range of vehicle and ceiling heights
* Contoured scissor legs provide rigidity, decreased deflection, and a low collapsed height
* Full-width, straight-through axles increase overall stability and tracking through the vertical travel range
* Full-width pivot pins promote straighter tracking of the scissor legs throughout travel—vital for eccentric loads
* Extra-wide, heavy-duty steel scissor arms with cross member bracing enhance stability
* Unique clevis-design scissor ends lower stress and increase rigidity by distributing loads symmetrically over the pins
* Patented asymmetric scissor arms provide greater underside door clearance
* Patented door-sentry car door protectors are made from energy-absorbing rubber to protect against accidental scratches or door dings
* Space-saving design is perfect for commercial or residential applications
* Hydraulic safety valves (velocity fuses) prevent sudden, unexpected platform collapse in the unlikely event of hydraulic system failure
* UL Listed: electrical components meet National Electrical Code (NEC) requirementsBrand: BendPak
Manufacturer's Part Number: 5175282
Part Type: Vehicle Lifts
Product Line: BendPak Autostacker PL-6SRX Extra-Wide Parking Lifts
HP Direct Part Number: BPI-5175282
Maximum Lift Height (in.): 81.25 in.
Weight Capacity (lbs.): 6,000
Overall Length (in.): 144.00 in.
Overall Width (in.): 111.00 in.
Runway Length (in.): 124.00 in.
Runway Width (in.): 91.75
Power Supply: 208/240 V
Lift Color: Black
Quantity: Sold individually.
Key features and specs:
* 6,000 lb. lifting capacity
* Extra-wide construction for increased door clearance
* Key-switch disconnect fully disables operation for enhanced security
* Audible alarm and warning buzzer alerts operator and bystanders when the lift is in operation
* Accommodates cars, light trucks, and SUVs
* Rugged, welded-steel construction is strong and durable
* 100 percent hot-dipped, galvanized steel platform
* Attractive slate gray, baked-on powder coat finish provides added toughness
* Front wheel dish acts as a wheel chock to prevent vehicles from rolling forward or backward
* Extra-wide, gradual sloping platform reduces entry ramp height
* Automatic safety locks engage at five different parking heights
* Simple push-button controls
* Dual, direct-drive hydraulic lifting cylinders
* Dependable hydraulic circuit that provides precise, equalized lifting
* Variable height parking accommodates a wide range of vehicle and ceiling heights
* Contoured scissor legs provide rigidity, decreased deflection, and a low collapsed height
* Full-width, straight-through axles increase overall stability and tracking through the vertical travel range
* Full-width pivot pins promote straighter tracking of the scissor legs throughout travel—vital for eccentric loads
* Extra-wide, heavy-duty steel scissor arms with cross member bracing enhance stability
* Unique clevis-design scissor ends lower stress and increase rigidity by distributing loads symmetrically over the pins
* Patented asymmetric scissor arms provide greater underside door clearance
* Patented door-sentry car door protectors are made from energy-absorbing rubber to protect against accidental scratches or door dings
* Space-saving design is perfect for commercial or residential applications
* Hydraulic safety valves (velocity fuses) prevent sudden, unexpected platform collapse in the unlikely event of hydraulic system failure
* UL Listed: electrical components meet National Electrical Code (NEC) requirementsBrand: BendPak
Manufacturer's Part Number: 5175282
Part Type: Vehicle Lifts
Product Line: BendPak Autostacker PL-6SRX Extra-Wide Parking Lifts
HP Direct Part Number: BPI-5175282
Maximum Lift Height (in.): 81.25 in.
Weight Capacity (lbs.): 6,000
Overall Length (in.): 144.00 in.
Overall Width (in.): 111.00 in.
Runway Length (in.): 124.00 in.
Runway Width (in.): 91.75
Power Supply: 208/240 V
Lift Color: Black
Quantity: Sold individually.
