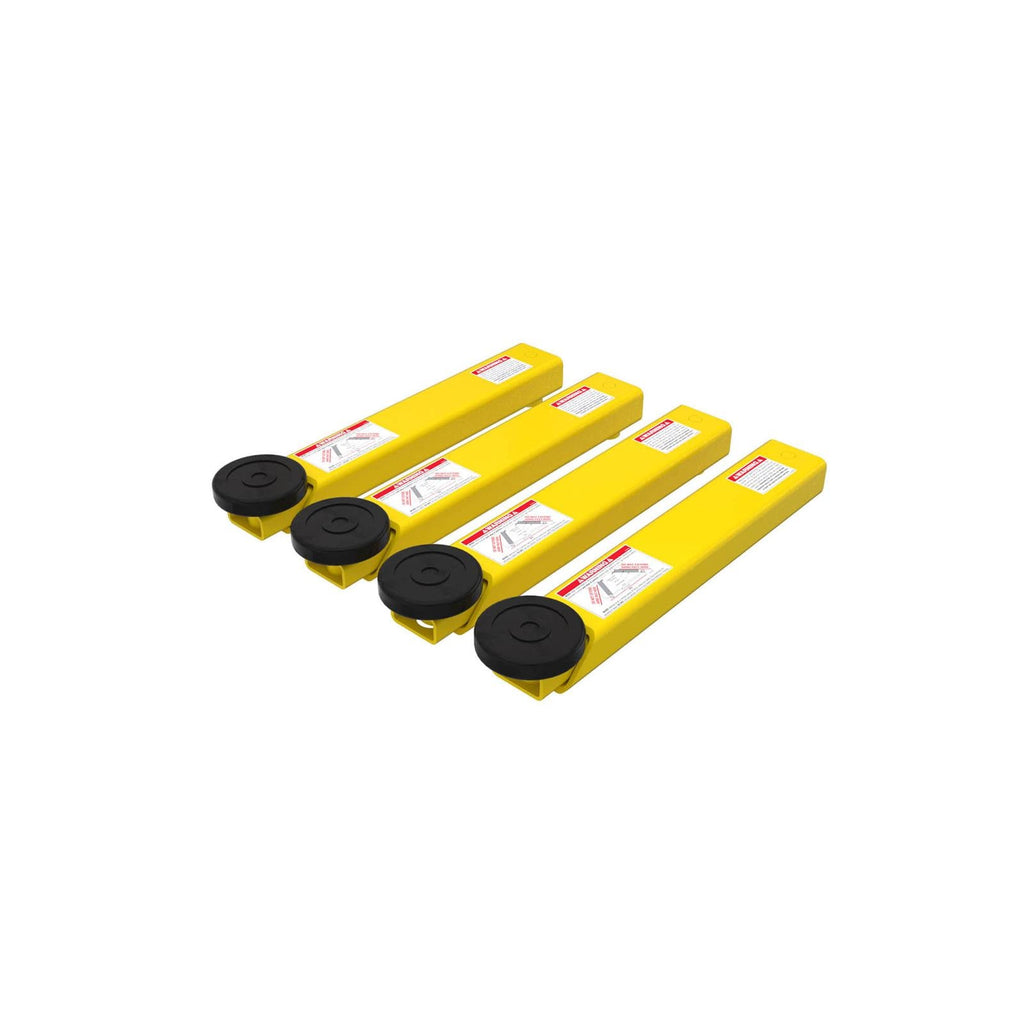

BendPak 6000AK Low Rise Lift Arms 5210194

Increase the capability of your P9000 Series low-rise pit lifts with BendPak 6000AK low-rise lift arm kits. These 9,000 lb. capacity adapters instantly extend the reach of your lift's runways. The kits attach easily to each lift ramp so you can reach challenging contact points on your frame. With telescoping arms, each lifting arm can be extended up to 18 in. past the edge of the platform, extending to a full 41.5 in. length. They feature a rotating pin design that makes for quick installation and rotates smoothly, giving you the power to position the lifting arm anywhere under your vehicle.

Note: If you extend the lift arms (using their telescoping ability) past 4 ins. from the edge of the platform, the rated capacity of the lift arms is reduced.

Rates:

* Up to 4 ins.
-- 2,250 lbs. per lift arm
-- 9,000 lbs. total
-- No reduction in rated capacity
* At 6 ins.
-- 1,500 lbs. per lift arm
-- 6,000 lbs. total
* At 10 ins.
-- 900 lbs. per lift arm
-- 3,600 lbs. total
* At 18 ins. (fully extended)
-- 500 lbs. per lift arm
-- 2,000 lbs. total

Brand: BendPak
Manufacturer's Part Number: 5210194
Part Type: Vehicle Lift Accessories and Components
Product Line: BendPak 6000AK Low Rise Lift Arms
HP Direct Part Number: BPI-5210194
UPC: 849672022084
Vehicle Lift Component Type: Arm
Quantity: Sold as a set of 4.
Notes: Fits P-9000LT and P-9000LTF low rise pit lifts. Extends up to 18 in. past the edge of the platform.
