Description

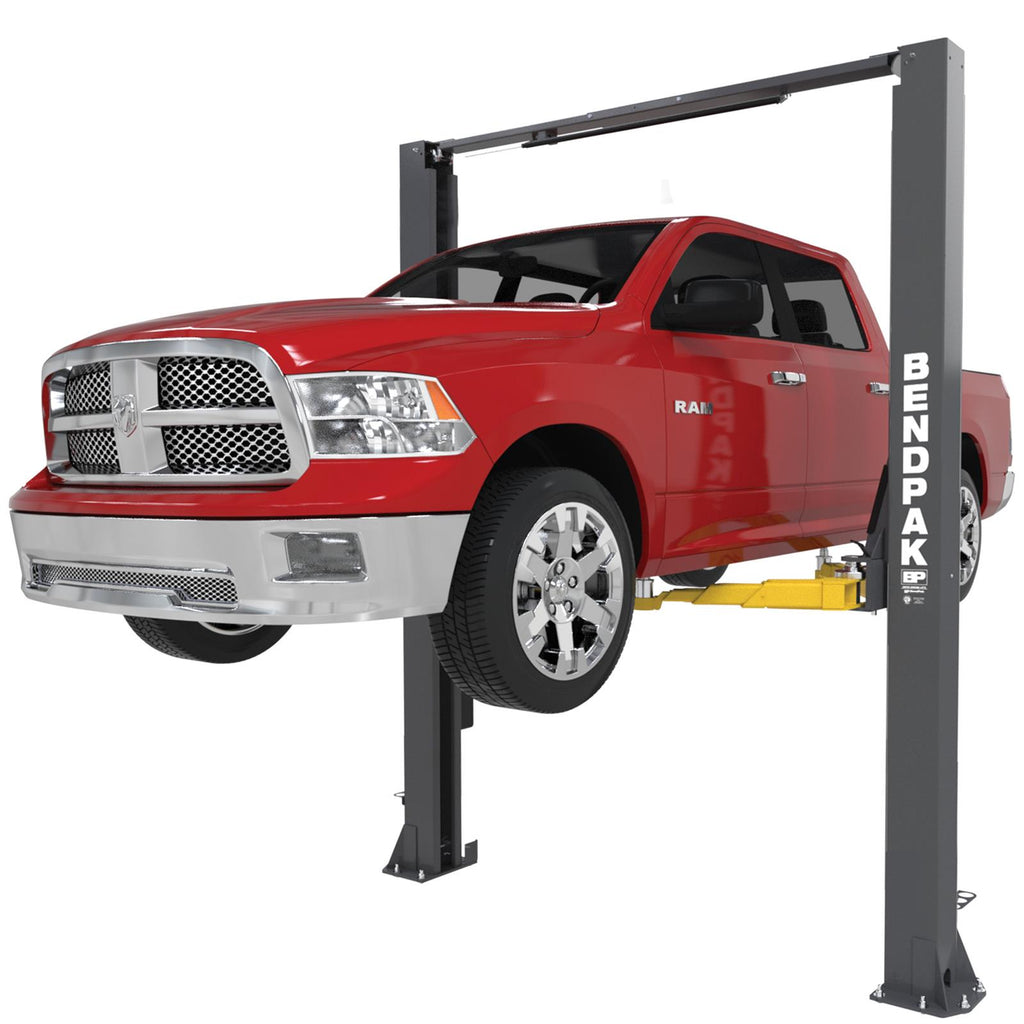

BendPak 10APX Series 2-post lifts are the next generation of lifts with an increased height. These tall-rise lifts are built with the future in mind, and have all the features you'll need to service vehicles as effectively as possible. The revolutionary 10APX lift can handle Electric Vehicles effortlessly and can adapt to both symmetrical and asymmetrical configurations.
BendPak's 10APXs have been designed to accommodate mechanics that are constantly in uncomfortable positions while on the job. They offer a lifting height of 79.5 in. and an overhead beam of 157 in., giving you plenty of room to work comfortably with the best equipment available.
Features and benefits:
* Durable powdercoat finish
* Expandable top beam accommodates wide or narrow drive-thru configurations
* Double-telescoping screw pads offer increased versatility
* Padded overhead safety shut-off bar
* Exclusive Bi-Metric swing arm design for more versatile arm positioning
* Single-point safety release
* Drop-end arms provide a lower pad height
* Dual hydraulic direct-drive cylinders
* Oversized 53 in. and 59 in. tall carriages for superior strength and durability
* Electric/hydraulic HVLP power system
* Self-lubricating dura-glide UHMW polyethylene bearing system
* Safety locks in each column spaced every 3 in.
* Automatic arm restraints withstand over 2,000 lbs. of side force
* Heavy-duty 1/2 in. aircraft-quality equalizer cables
* Oversized cable sheave diameter reduces cable fatigue
* 14-piece standard adapter set
* Four triple-telescoping arms
* ALI certified
Brand: BendPak
Manufacturer's Part Number: 5175306
Part Type: Vehicle Lifts
Product Line: BendPak 10APX Series 2-Post Lifts
HP Direct Part Number: BPI-5175306
Maximum Lift Height (in.): 75.50 in.
Weight Capacity (lbs.): 10,000
Overall Width (in.): 137.00 in.
Overall Height (in.): 157.00 in.
Power Supply: 220 V
Lift Color: Black
Quantity: Sold individually.
BendPak's 10APXs have been designed to accommodate mechanics that are constantly in uncomfortable positions while on the job. They offer a lifting height of 79.5 in. and an overhead beam of 157 in., giving you plenty of room to work comfortably with the best equipment available.
Features and benefits:
* Durable powdercoat finish
* Expandable top beam accommodates wide or narrow drive-thru configurations
* Double-telescoping screw pads offer increased versatility
* Padded overhead safety shut-off bar
* Exclusive Bi-Metric swing arm design for more versatile arm positioning
* Single-point safety release
* Drop-end arms provide a lower pad height
* Dual hydraulic direct-drive cylinders
* Oversized 53 in. and 59 in. tall carriages for superior strength and durability
* Electric/hydraulic HVLP power system
* Self-lubricating dura-glide UHMW polyethylene bearing system
* Safety locks in each column spaced every 3 in.
* Automatic arm restraints withstand over 2,000 lbs. of side force
* Heavy-duty 1/2 in. aircraft-quality equalizer cables
* Oversized cable sheave diameter reduces cable fatigue
* 14-piece standard adapter set
* Four triple-telescoping arms
* ALI certified
Brand: BendPak
Manufacturer's Part Number: 5175306
Part Type: Vehicle Lifts
Product Line: BendPak 10APX Series 2-Post Lifts
HP Direct Part Number: BPI-5175306
Maximum Lift Height (in.): 75.50 in.
Weight Capacity (lbs.): 10,000
Overall Width (in.): 137.00 in.
Overall Height (in.): 157.00 in.
Power Supply: 220 V
Lift Color: Black
Quantity: Sold individually.
