Description

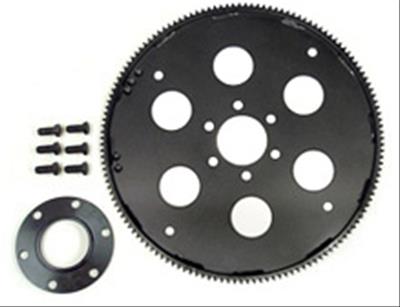

ATI flexplates are created from custom-drawn, SFI-spec chromoly steel. They are double MIG/TIG-welded for additional strength and lasting precision, pass after pass. These kits are manufactured and toleranced from OEM drawings to ensure a precise fit and location. The plates are quality-inspected to exceed the flatness and runout tolerances of the OEM units and precision-balanced on Hines digital equipment with a resolution of 1/10 oz./in. These kits include a flexplate, a CNC-machined crank piloted spacer, and crank bolts.Brand: ATI Performance Products
Manufacturer's Part Number: ATI915735
Part Type: Flexplates
Product Line: ATI SFI Flexplate Kits
HP Direct Part Number: ATI-915735
UPC: 800157037641
Ring Gear Tooth Quantity: 164-tooth
Flexplate Diameter (in.): 14.24
Engine Balance: Internal
Flexplate Material: Steel
SFI Rating: SFI 29.1
Marine Use: No
Quantity: Sold as a kit.
Notes: Flexplate is flat and will only accommodate aftermarket converters where the drive pad is above the converter body. Designed for applications using GM transmissions. Kit includes flexplate, CNC-machined crank spacer, and flexplate bolts.
Manufacturer's Part Number: ATI915735
Part Type: Flexplates
Product Line: ATI SFI Flexplate Kits
HP Direct Part Number: ATI-915735
UPC: 800157037641
Ring Gear Tooth Quantity: 164-tooth
Flexplate Diameter (in.): 14.24
Engine Balance: Internal
Flexplate Material: Steel
SFI Rating: SFI 29.1
Marine Use: No
Quantity: Sold as a kit.
Notes: Flexplate is flat and will only accommodate aftermarket converters where the drive pad is above the converter body. Designed for applications using GM transmissions. Kit includes flexplate, CNC-machined crank spacer, and flexplate bolts.
