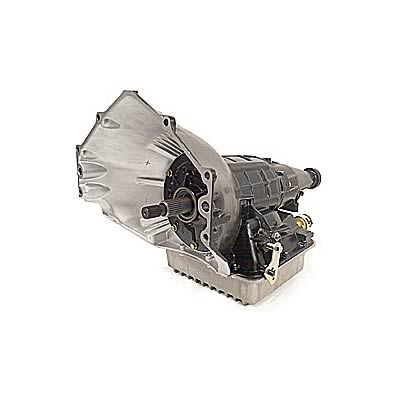

ATI ProGlide Powerglide Transmissions ATI200640

ATI ProGlide Powerglide transmissions are made perfect for bracket racing or the "Super" categories. They use an instant-releasing external solenoid brake that moves the release valve with a whopping 44 lbs. of spring load.

Features include:

* Steel drum
* Torsional input shaft
* Hard chrome rings
* Forged steel clutch hubs
* Aluminum deep pan
* High-capacity band and clutchesBrand: ATI Performance Products
Manufacturer's Part Number: ATI200640
Part Type: Automatic Transmissions
Product Line: ATI ProGlide Powerglide Transmissions
HP Direct Part Number: ATI-200640
UPC: 800157050978
Number of Gears: 2
Bellhousing Bolt Pattern Manufacturer: Chevy
Transmission Shift Pattern: Forward
Valve Body Style: Full manual
Transmission Advertised Horsepower Rating: 1,000
Torque Converter Included: No
Flexplate Included: No
Transmission Controller Included: No
Wiring Harness Included: No
Transmission Cooler Included: No
Trans-Brake Included: Yes
Lockup Compatible: No
Transmission Pan Style: Deep
Transmission Pan Material: Aluminum
Transmission Pan Finish: Natural
Tailshaft Length (in.): 11.250 in.
First Gear Ratio (Automatic Transmissions): 1.80
Clutch Hub: Steel
Transmission Case Style: OEM
Transmission Case Material: Aluminum
Transmission Case Finish: Natural
Transmission Shield Built In: No
Flexplate Shield Built In: No
Fluid Fill Location: Case
Transmission Fluid Included: No
Dipstick Included: No
Remanufactured: Yes
Quantity: Sold individually.
Notes: Straight cut maximum horsepower gear set.
