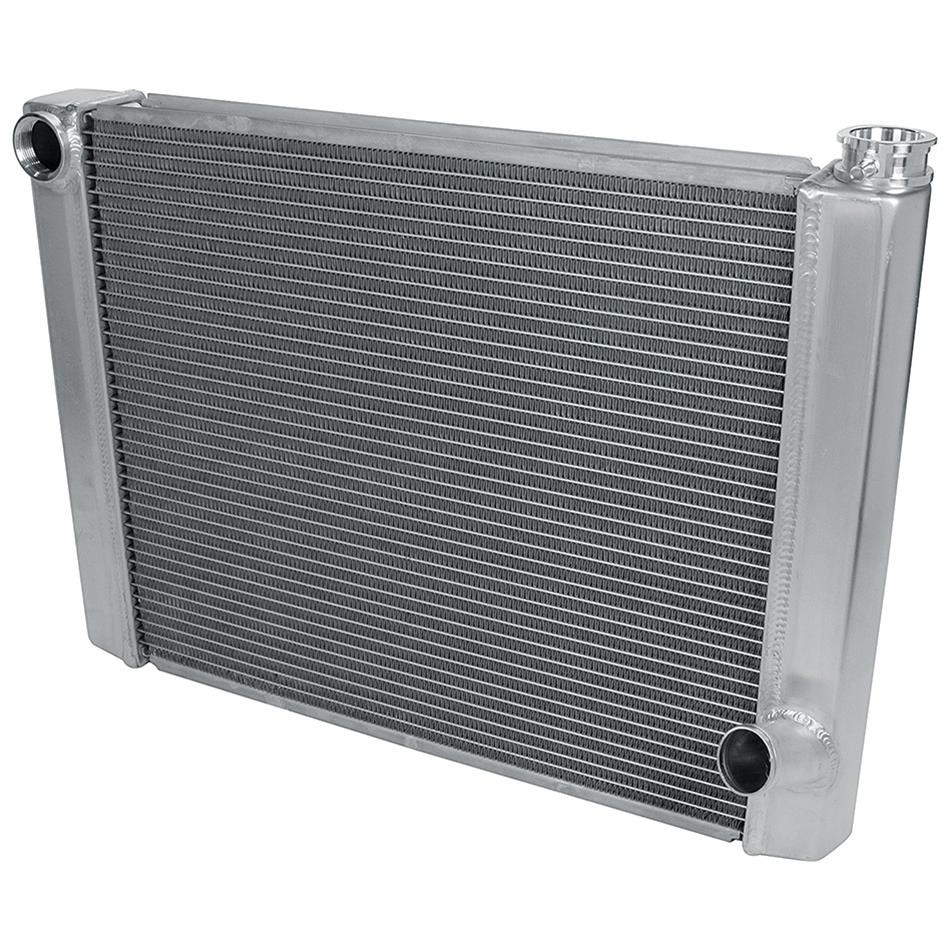

Allstar Performance Triple Pass Radiators ALL30046

The third time's a charm with Allstar Performance triple pass radiators. You'll have maximum heat dissipation, as coolant circulates across the top, back across the middle, and through the bottom—creating a trio of cooling passes. Allstar aluminum radiators feature furnace-brazed tanks, two rows of 1 in. tubes, a billet machined filler neck with overflow, standard 1 3/4 in. outlets, and universal inlets. These 3-row radiators are available in several overall widths to fit your vehicle. With cooling: one pass works, two is better, but Allstar triple pass radiators are best..Brand: Allstar Performance
Manufacturer's Part Number: ALL30046
Part Type: Radiators
Product Line: Allstar Performance Triple Pass Radiators
HP Direct Part Number: AAF-ALL30046
UPC: 848238018134
Radiator Material: Aluminum
Radiator Style: Crossflow
Transmission Cooler: No
Inlet Location: Upper driver side
Outlet Location: Lower passenger side
Overall Width (in.): 26.00 in.
Overall Height (in.): 19.00 in.
Overall Thickness (in.): 2.25
Row Quantity: 2
Radiator Finish: Natural
Core Width (in.): 21.00 in.
Core Height (in.): 18.00 in.
Radiator Inlet Size: -20 AN
Radiator Outlet Size: 1.750 in.
Trans Cooler Adapter Fittings Included: No
Tube Size: 1 in.
Fan Included: No
Radiator Cap Included: No
Quantity: Sold individually.
Notes: Upper radiator hose inlet fitting is sold separately.
