Allstar Performance Ring and Pinion Installation Kits ALL68519

Allstar Performance ring and pinion installation kits contain all of the hard-to-find individual parts for a quick, trouble-free install. To ensure precise fitment, order the kit designed for your specific axle model.

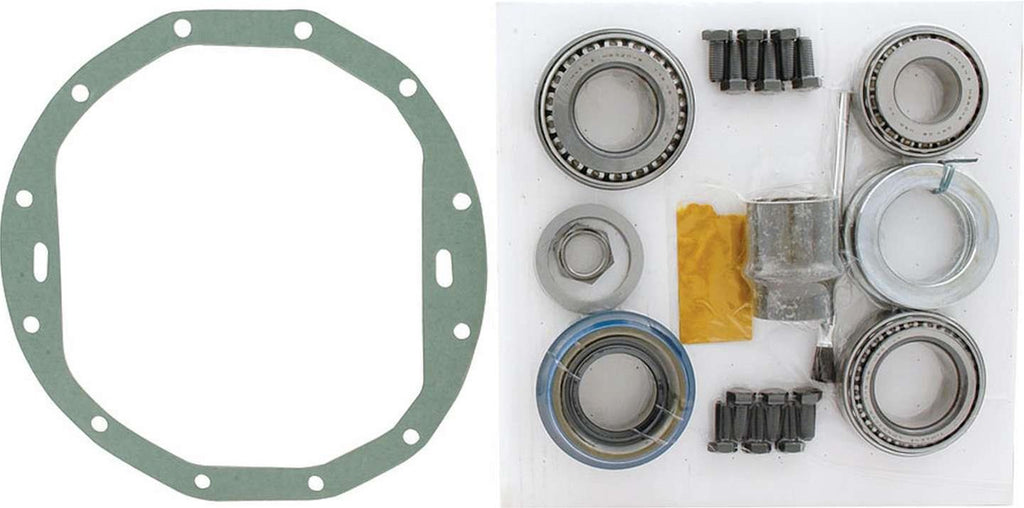

Kits include:

* Pinion and side (carrier) bearings
* Pinion seal
* Pinion depth shims
* Adjustable side (carrier) shims
* Crush sleeve (spacer)
* Pinion nut
* 1 oz. tube of silicone or gasket
* Gear marking compound
* Ring gear boltsBrand: Allstar Performance
Manufacturer's Part Number: ALL68519
Part Type: Ring and Pinion Gear Installation Kits
Product Line: Allstar Performance Ring and Pinion Installation Kits
HP Direct Part Number: AAF-ALL68519
UPC: 848238036800
Differential Case Design Type: GM 8.875 in. (12-bolt), passenger car
Cover Bolts: 12
Ring Gear Bolts: 12
Pinion Spline Count: 30
Cover Gasket Included: Yes
Pinion Shims Included: Yes
Carrier Shims Included: Yes
Crush Sleeve Included: Yes
Pinion Seal Included: Yes
Pinion Nut Included: Yes
Ring Gear Bolts Included: Yes
Head Bearing Included: Yes
Tail Bearing Included: Yes
Carrier Bearings Included: Yes
Axle Seals Included: No
Axle Bearings Included: No
Quantity: Sold as a kit.
Notes: Fits 1965-72 passenger car applications. Fits with a 1.625 in. pinion.
