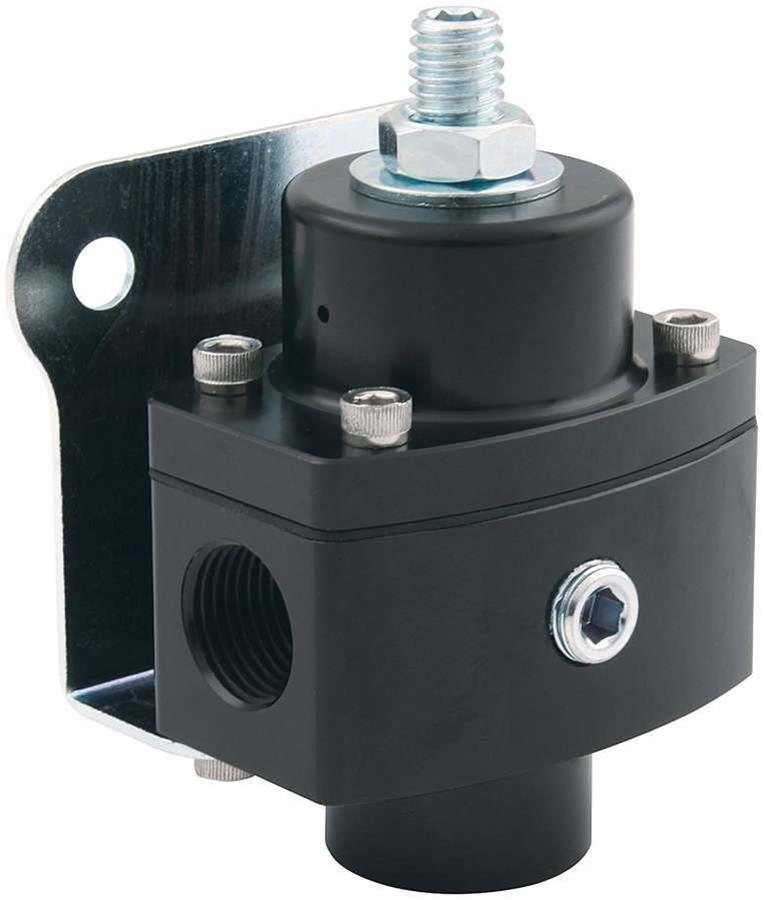

Allstar Performance Fuel Pressure Regulators ALL40290

Allstar Performance fuel pressure regulators are designed to regulate your fuel pressure when using mechanical or electric performance fuel pumps. These "Dead-Head" style regulators do not require a return line back to the fuel tank or fuel cell. Allstar Performance fuel pressure regulators feature a single 3/8 NPT inlet port on the bottom and two 3/8 NPT side outlet ports, along with a 1/8 NPT port for mounting a fuel pressure gauge or sender line. A steel mounting bracket is included.Brand: Allstar Performance
Manufacturer's Part Number: ALL40290
Part Type: Fuel Pressure Regulators
Product Line: Allstar Performance Fuel Pressure Regulators
HP Direct Part Number: AAF-ALL40290
UPC: 848238020953
Regulator Pressure (psi): 4.5-14
Regulator Style: Non-return
Regulator Location: Inline
Boost/Vacuum Reference Port: No
Gauge Port: Yes
Inlet Quantity: 1
Regulator Inlet Size: 3/8 in. NPT
Inlet Attachment: Female threads
Outlet Quantity: 2
Regulator Outlet Size: 3/8 in. NPT
Outlet Attachment: Female threads
Fittings Included: No
Regulator Material: Aluminum
Regulator Color: Black
Rebuildable: Yes
Mounting Bracket Included: Yes
Remanufactured: No
Quantity: Sold individually.
Notes: Includes 1/8 in. NPT port for fuel pressure gauge or sender line.
