Allstar Performance Coilover Brackets ALL60107

Allstar Performance coilover brackets are offered in several styles, providing you with many mounting options. This selection of weld-on brackets is able to mount standard and coilover shocks with 1/2 in. I.D. inner bushing or 1/2 in. rod end to chassis, as well as having many other uses. Choose from right or left hand notched, long or short straight notched, and wide flat styles. Allstar also offers narrow radius mounts that weld parallel onto tubing. All of these coilover/shock/round tube mounts include 1/2 in. shock mounting hardware with bolt, spacer, and locknut.Brand: Allstar Performance
Manufacturer's Part Number: ALL60107
Part Type: Chassis Tabs, Brackets and Components
Product Line: Allstar Performance Coilover Brackets
HP Direct Part Number: AAF-ALL60107
UPC: 848238033656
Thickness (in.): 0.125
Accessory Bolt Holes Included: Yes
Hole Diameter/Slot Width (in.): 1/2
Fits Tubing: Yes
Bracket Style: Shock mounting
Bracket Material: Steel
Bracket Color: Natural
Welding Required: Yes
Quantity: Sold individually.

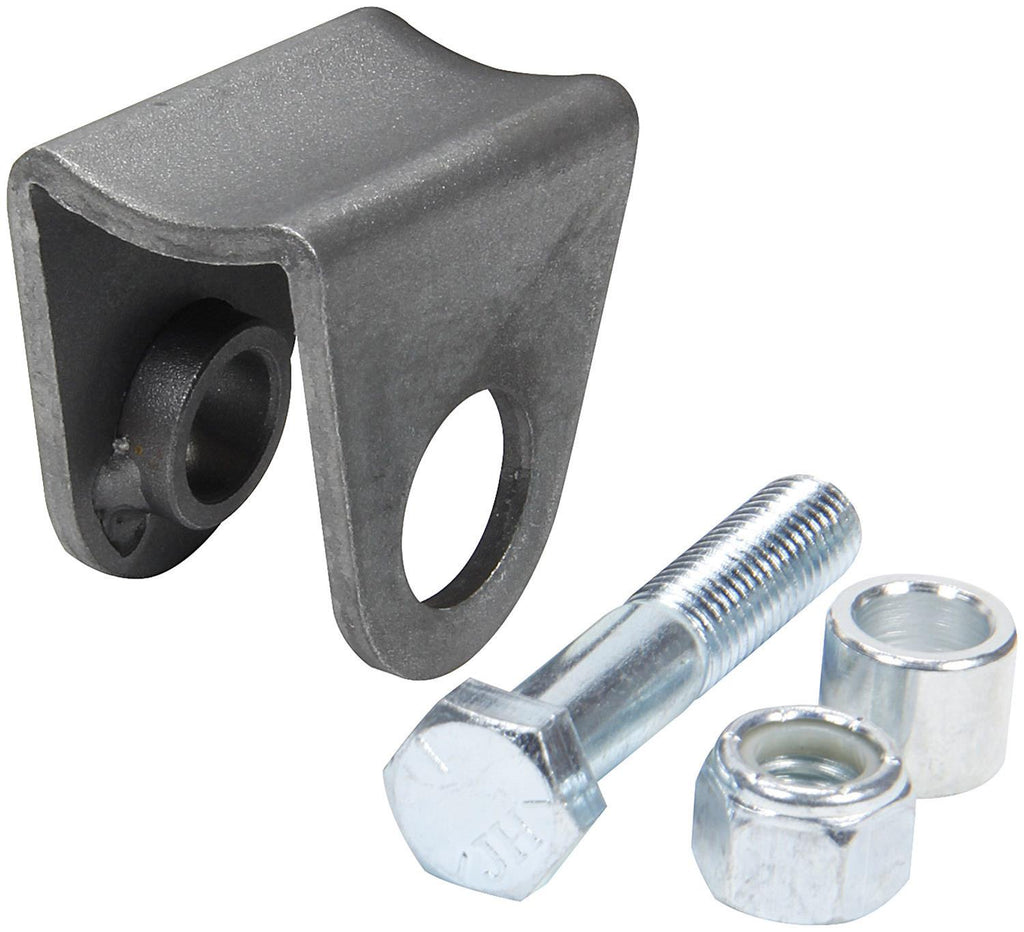

Notes: This bracket is narrow with a radius on the bottom and includes bolt, locknut, and spacer. Inside width = 1.0 in. Outside bushing diameter = 0.750 in. Bolt size is 1/2 in.-13, 2.5 in. under head length.
