Allstar Performance Clamp-On Trailing Arm Brackets ALL60138

Allstar Performance clamp-on trailing arm brackets are offered in steel and aluminum versions.

The steels models are universal brackets to mount coilover eliminator and shock next to axle and mount trailing arm 4 1/2 in. below the axle centerline, either inside or outside of the bracket. They allow Limited Late Models and Modifieds to be changed from coilover to a coilover eliminator and shock. They include Grade 5 hardware and Nyloc nuts.

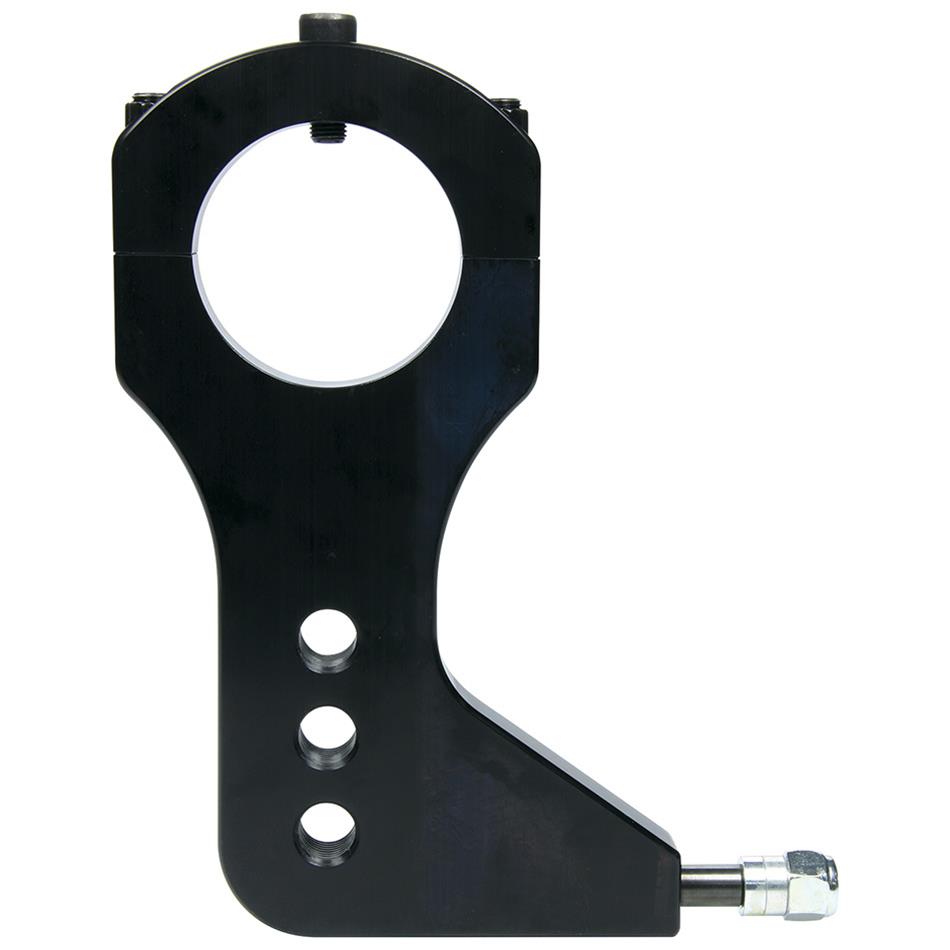

The aluminum brackets clamp to a 3 in. diameter axle tube, has three 3/4 in.-10 mounting holes for trailing arm location, and a 1/2 in.-13 socket head bolt with two 1/4 in. spacers for mounting a coilover shock. An additional locking bolt installs into the axle tube to help prevent the bracket from turning. They can be used on the right- or left-hand side of housing.

Brand: Allstar Performance
Manufacturer's Part Number: ALL60138
Part Type: Chassis Tabs, Brackets and Components
Product Line: Allstar Performance Clamp-On Trailing Arm Brackets
HP Direct Part Number: AAF-ALL60138
UPC: 848238033816
Height (in.): 7.375 in.
Width (in.): 4.125 in.
Accessory Bolt Holes Included: Yes
Hole Diameter/Slot Width (in.): 3/4
Fits Tubing: Yes
Tubing Diameter (in.): 3.00 in.
Bracket Style: Trailing arm bracket
Bracket Material: Aluminum
Bracket Color: Black
Welding Required: No
Quantity: Sold individually.
Notes: Designed for 3 in. axle tube and has three 3/4 in. mounting holes.
