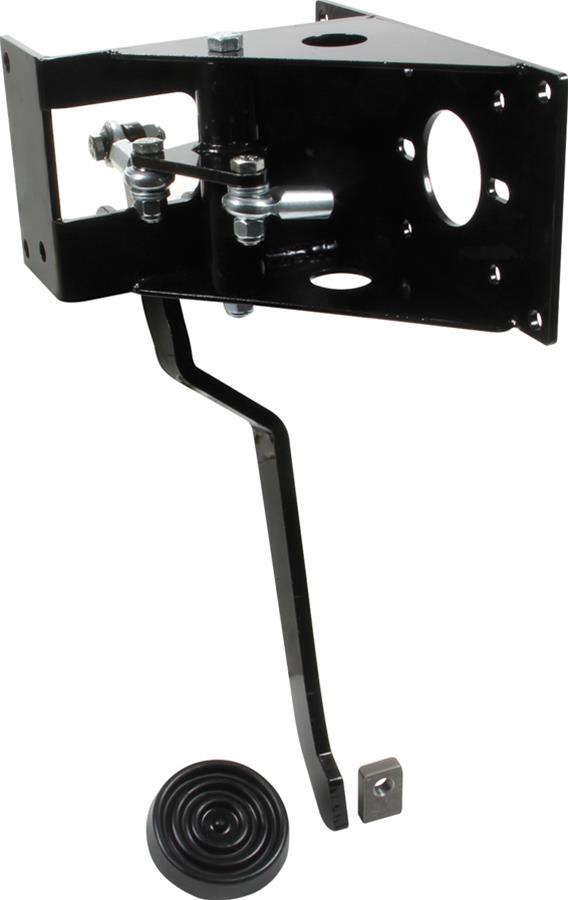

Allstar Performance 90 Degree Hanging Brake Pedals ALL41013

Allstar Performance 90 degree hanging brake pedals offers a clean under-the-hood appearance. How? The assemblies position the booster and master cylinder beneath your dash 90 degrees to the firewall—ideal for vehicles that simply do not have room in the engine compartment. These brackets have provisions to accept Allstar power brake boosters or to mount a master cylinder directly to the bracket for manual brake applications. Position your pedal for performance with Allstar 90 degree hanging brake pedals.Brand: Allstar Performance
Manufacturer's Part Number: ALL41013
Part Type: Pedal Assemblies
Product Line: Allstar Performance 90 Degree Hanging Brake Pedals
HP Direct Part Number: AAF-ALL41013
UPC: 848238058666
Pedal Type: Brake
Pedal Mounting Location: Underdash mount
Pedal Pad Included: Yes
Master Cylinder Included: No
Brake Booster Included: No
Throttle Cable Included: No
Pedal Material: Steel
Pedal Pad Attachment: Bolt-on
Pedal Pad Material: Rubber/Steel
Pedal Pad Color: Black
Pedal Color: Black
Brake Pedal Shape: Round
Pedal Ratio: 5:1 to 7:1
Brake Pedal Length (in.): 15.00 in.
Balance Bar Included: No
Master Cylinder Style: Single
Quantity: Sold individually.
Notes: Welding required to mount pedal tab to pedal. Arm may be cut to length and tab installed as needed.
