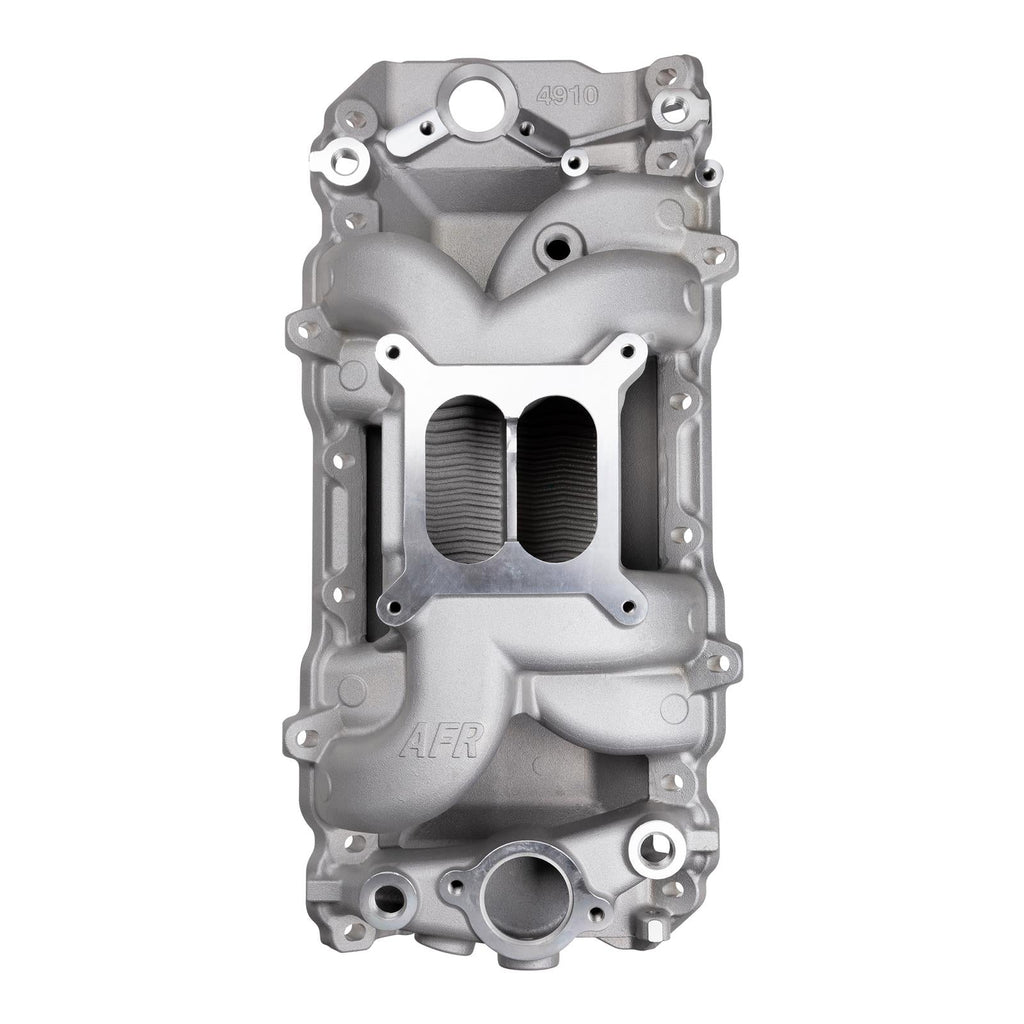

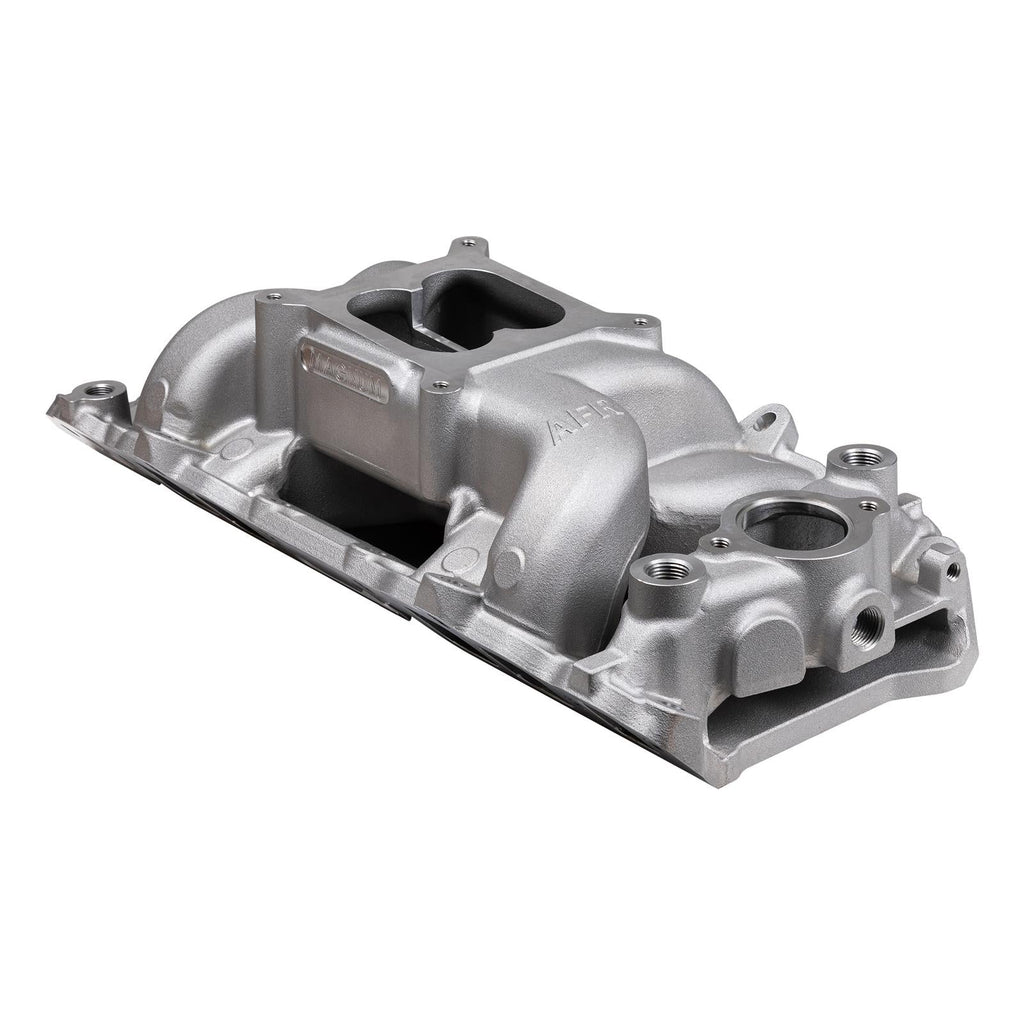

AFR Magnum Series Intake Manifolds 4910

AFR Magnum Series intake manifolds elevate your big block Chevy engine's power—the ultimate power upgrade. Crafted with precision and engineered to perfection, these manifolds are the key to unlocking a new level of performance for your street vehicle. Designed to seamlessly integrate with AFR's acclaimed Magnum Oval port cylinder heads, the manifolds promise a hassle-free enhancement to your engine's capabilities. Say goodbye to the painstaking task of port matching, as they're a direct bolt-on solution for AFR select cylinder heads. The Magnum intake manifold utilizes a dual-plane design, featuring runners that are custom-tailored for high-horsepower applications thriving in the 1,800-6,200 rpm range. Elevate your driving experience today with an AFR Magnum intake manifold—where power meets precision.

Product specs:

* Carb flange height: front: 5.22 in., middle: 5.39 in., rear: 5.57 in.
* 1,800-6,200 rpm optimal operating range
* Designed for a standard/stock block height
* 4150 carburetor flange
Brand: Airflow Research (AFR)
Manufacturer's Part Number: 4910
Part Type: Intake Manifolds, Carbureted
Product Line: AFR Magnum Series Intake Manifolds
HP Direct Part Number: AFR-4910
Intake Section Included: Complete
Engine Block Deck Height: Standard deck
Carburetor Quantity: One
Intake Style: Dual plane
Basic Operating RPM Range: 1,800-6,200
Intake Manifold Height: 5.390 in.
Intake Color: Natural
Intake Material: Aluminum
EGR: No
Quantity: Sold individually.
Notes: Best fit for AFR Magnum Oval Port 265cc, 290cc, and 300cc cylinder heads. May require porting and machining to match other cylinder heads.
