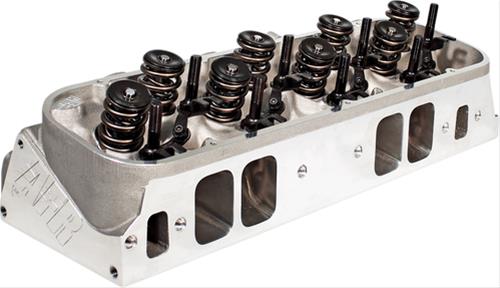

AFR 385cc Magnum BBC Competition Racing Heads 2020-TI

AFR 385cc Magnum BBC competition racing heads will feed your large displacement, high-rpm race engine the air it needs to deliver monster performance. The 385cc Magnum features AFR's trademark .750 in. thick head deck, A356 aluminum castings and Titanium retainers, as well as 100 percent CNC-ported intakes, exhausts, and combustion chambers to deliver the big flow characteristics to provide you with the power you need to win! Keep your monster engine both strong and powerful—allow it to feast on the plentiful airflow of the AFR 385cc Magnum BBC competition racing heads.Brand: Airflow Research (AFR)
Manufacturer's Part Number: 2020-TI
Part Type: Cylinder Heads
Product Line: AFR 385cc Magnum BBC Competition Racing Heads
HP Direct Part Number: AFR-2020-TI
Combustion Chamber Volume (cc): 121
Intake Runner Volume (cc): 385cc
Exhaust Runner Volume (cc): 135cc
Cylinder Head Style: Assembled
Cylinder Head Material: Cast aluminum
Camshaft Style: Solid roller
Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.350 in.
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: Yes
CNC-Machined Exhaust Runner: Yes
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: Square
Exhaust Port Location: Standard
Spark Plug Style: Angle
Intake Valves Included: Yes
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in.): 1.880 in.
Valve Springs Included: Yes
Maximum Valve Lift (in.): 0.850 in.
Outside Diameter of Outer Spring (in.): 1.625 in.
Damper Spring Included: Yes
Number of Springs Per Valve: Dual
Retainers Included: Yes
Retainer Material: Titanium
Locks Included: Yes
Lock Style: 10 degree
Valve Stem Seals Included: Yes
Rocker Arm Studs Included: Yes
Rocker Arm Nut Thread Size: 7/16 in.-20
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: Yes
Guideplate Pushrod Size: 3/8 in.
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 24/4
Exhaust Valve Angle: 15/4
Valve Guides Included: Yes
Valve Guide Material: Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 5-angle
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: Yes
Remanufactured: No
Quantity: Sold as a pair.
Notes: Best suited for large displacement high rpm engine applications.
