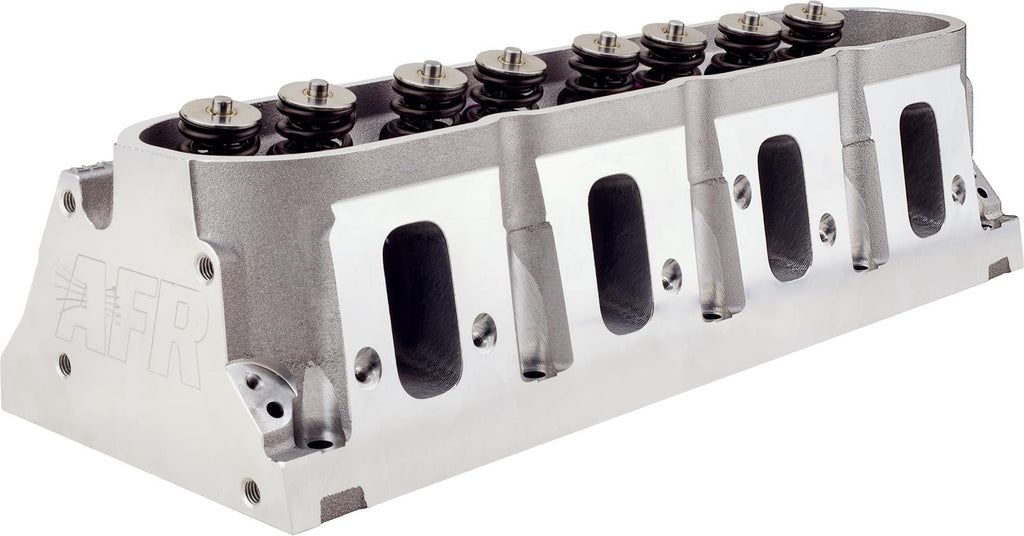

AFR 260cc LS3 Mongoose Cylinder Heads 1841

AFR 260cc LS3 Mongoose cylinder heads are 100 percent 5-axis, CNC-ported, and feature titanium retainers, A356 aluminum castings, and Pac Racing springs. These CARB certified heads require 4.000 in. or larger bore applications on up through 454 cu. in. engines operating at or below 7,000 rpm—and flow over 380 cfm at 0.700 in. lift and are designed primarily for street and strip applications. Other structural features include Air Flow Research's trademark 3/4 in. thick head deck, reinforced rocker stud bosses, and thick wall runners provide unparalleled durability. Use of AFR stud girdles and full roller rocker arms are required. When it comes to building power, start with these AFR 260cc LS3 Mongoose cylinder heads.Brand: Airflow Research (AFR)
Manufacturer's Part Number: 1841
Part Type: Cylinder Heads
Product Line: AFR 260cc LS3 Mongoose Cylinder Heads
HP Direct Part Number: AFR-1841
Combustion Chamber Volume (cc): 69
Intake Runner Volume (cc): 245cc
Exhaust Runner Volume (cc): 95cc
Cylinder Head Style: Bare
Cylinder Head Material: Cast aluminum

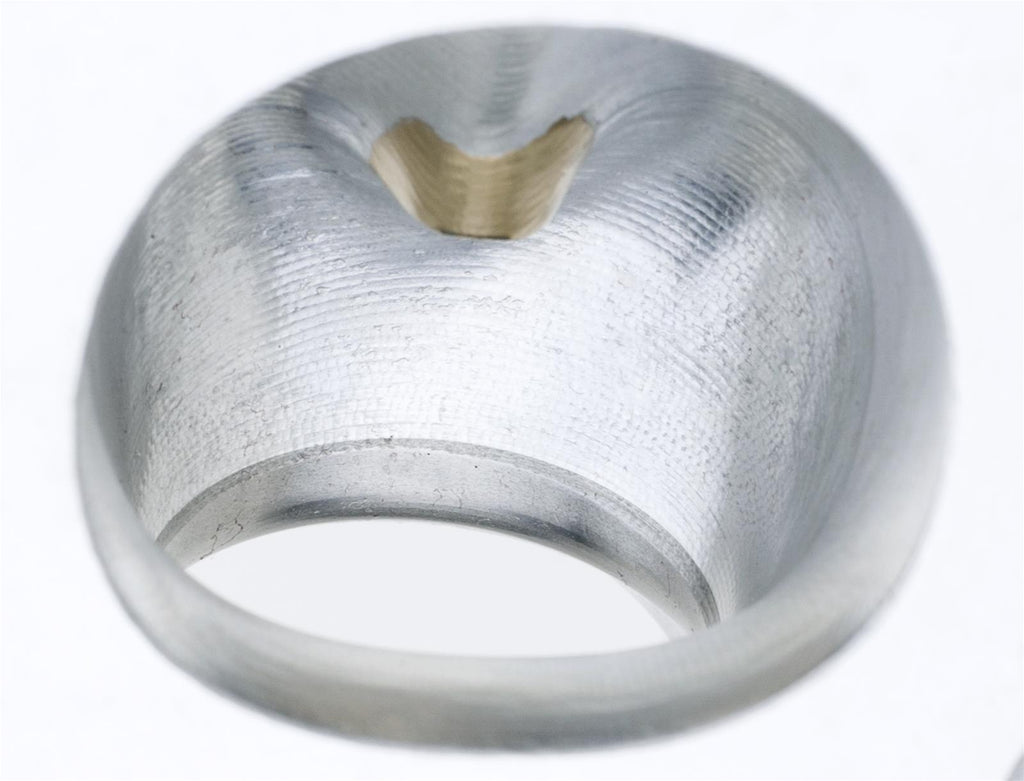

Intake Port Shape: Rectangular
Intake Valve Diameter (in.): 2.165 in.
CNC-Machined Combustion Chamber: Yes
CNC-Machined Intake Runner: Yes
CNC-Machined Exhaust Runner: Yes

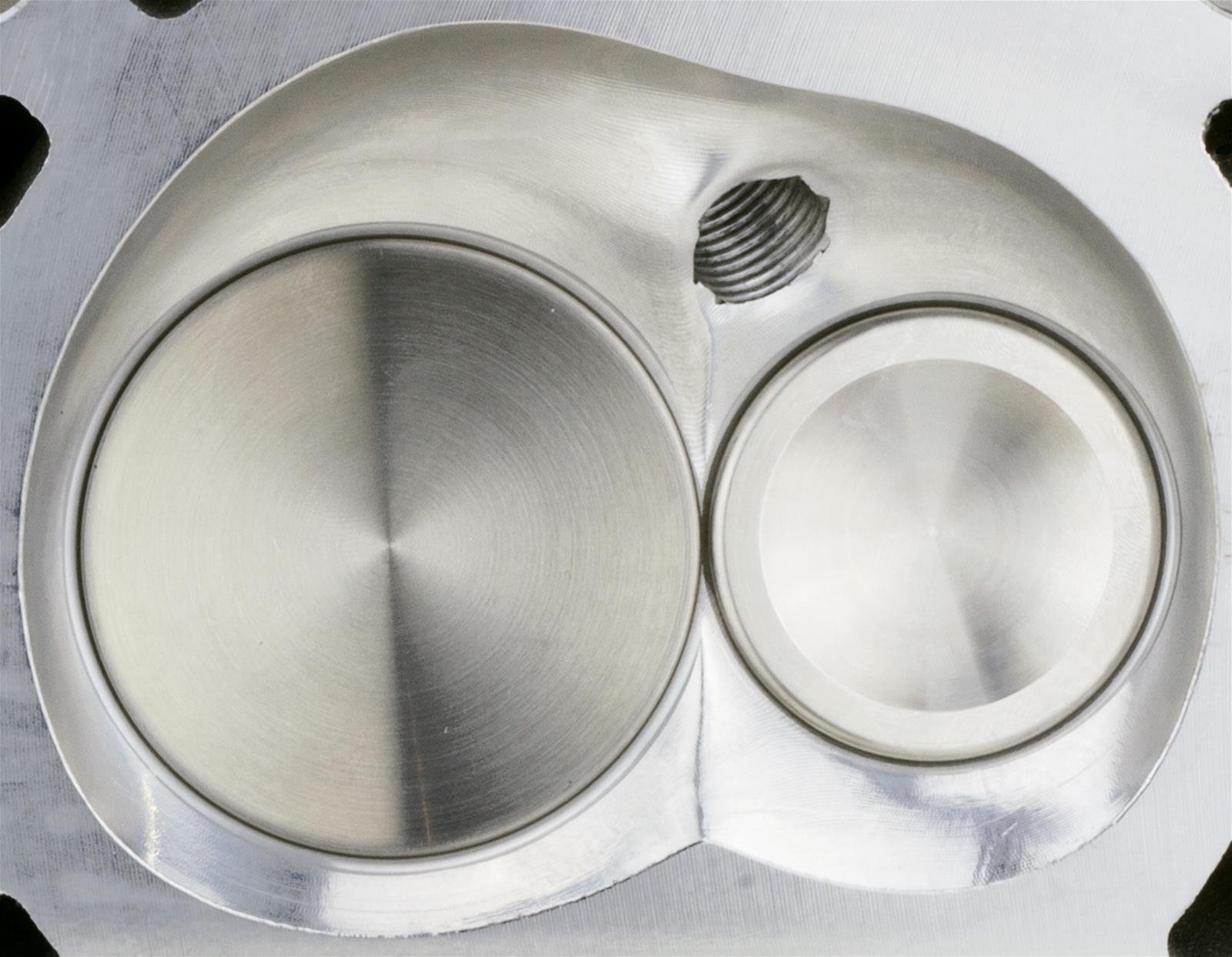

Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: Round
Exhaust Port Location: Standard
Intake Valves Included: No
Exhaust Valves Included: No
Exhaust Valve Diameter (in.): 1.600 in.
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 12
Exhaust Valve Angle: 12
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 5-angle intake/3-angle exhaust
Valve Seat Material: Ductile iron
Cylinder Head Color: Natural
Steam Holes Drilled: No
Oiling Style: Through head
Machined for O-Ring: No
Heat Crossover: No
Remanufactured: No
Quantity: Sold as a pair.
Notes: Heads are designed for 6 bolt per cylinder or LSX applications.
